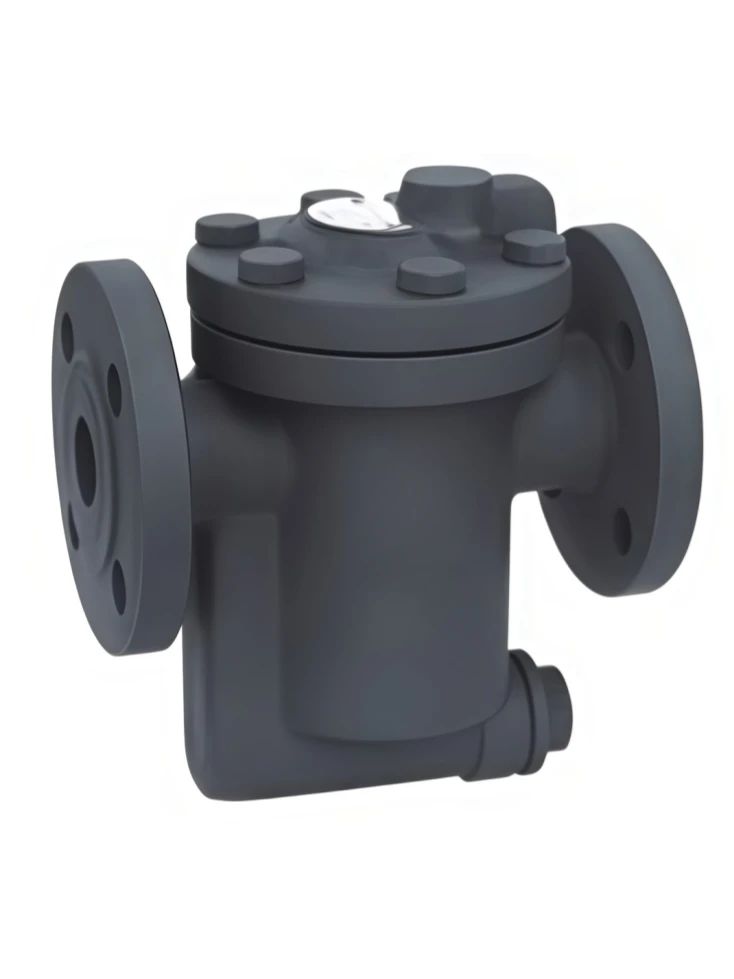

Free floating drain valve
The Free Floating Drain Valve is an automatic drainage valve designed to remove condensate, water, and liquid impurities from pipelines, compressed air systems, steam equipment, and industrial process systems. It adopts a free floating mechanism that automatically adjusts the valve opening and closing according to the liquid level, providing efficient drainage performance without the need for manual operation or external power.
Free floating drain valve
With a simple structure, high sensitivity, reliable sealing, and low maintenance requirements, this valve effectively prevents liquid accumulation and improves the operational efficiency and safety of pipeline systems. It is suitable for applications where continuous automatic drainage and stable fluid control are required.
We offer comprehensive OEM manufacturing and customization services, including customized valve sizes, body materials, connection standards, pressure ratings, sealing materials, float designs, surface treatments, logo marking, and packaging solutions. Our engineering team can provide customized solutions according to different working conditions and customer requirements.
All products are manufactured under strict quality control procedures and are supplied with complete valve industry certifications, including material certificates, pressure test reports, quality inspection documents, and other compliance certifications required for global markets.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Free Floating Drain Valve |
| Valve Type | Automatic Float Drain Valve |
| Operation Method | Free Floating Automatic Control |
| Valve Structure | Float Ball Type / Self-Actuated Drain Design |
| Valve Body Material | Stainless Steel / Brass / Carbon Steel / Customized |
| Float Material | Stainless Steel / Copper Alloy / Engineering Plastic |
| Connection Type | Threaded / Flanged / Customized |
| Connection Standard | BSP / NPT / DIN / ANSI / JIS |
| Nominal Size | DN6–DN50 (Customized Available) |
| Pressure Rating | PN10–PN40 |
| Working Pressure | 0–4.0 MPa (According to Design Requirements) |
| Working Temperature | -20°C to +200°C (Customized Available) |
| Applicable Medium | Water, Condensate, Air, Steam, Oil, Gas |
| Drain Capacity | Customized According to Flow Requirements |
| Sealing Material | PTFE / NBR / EPDM / Viton / Customized |
| Float Control Mode | Liquid Level Automatic Opening and Closing |
| Leakage Performance | Reliable Sealing, Low Leakage Design |
| Installation Method | Horizontal / Vertical Pipeline Installation |
| Surface Treatment | Polishing / Anti-corrosion Coating / Customized |
| OEM Capability | Customized Structure, Material, Size, Logo, Packaging, and Performance Requirements |
| Quality Inspection | Pressure Test, Leakage Test, Material Inspection |
| Certifications | ISO Quality System, Material Certificate, Pressure Test Certificate, Industry Compliance Documents |
Industry Applications
The Free Floating Drain Valve is widely applied in various industrial fields, including:
Key Features:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
