Lever floating ball type drain valve
The Lever Floating Ball Type Drain Valve is an automatic drainage valve designed to remove condensate, water, and liquid impurities from industrial pipelines, compressed air systems, steam equipment, and process systems. It adopts a lever-operated floating ball mechanism that automatically controls the opening and closing of the valve according to liquid level changes, providing continuous and efficient drainage performance.

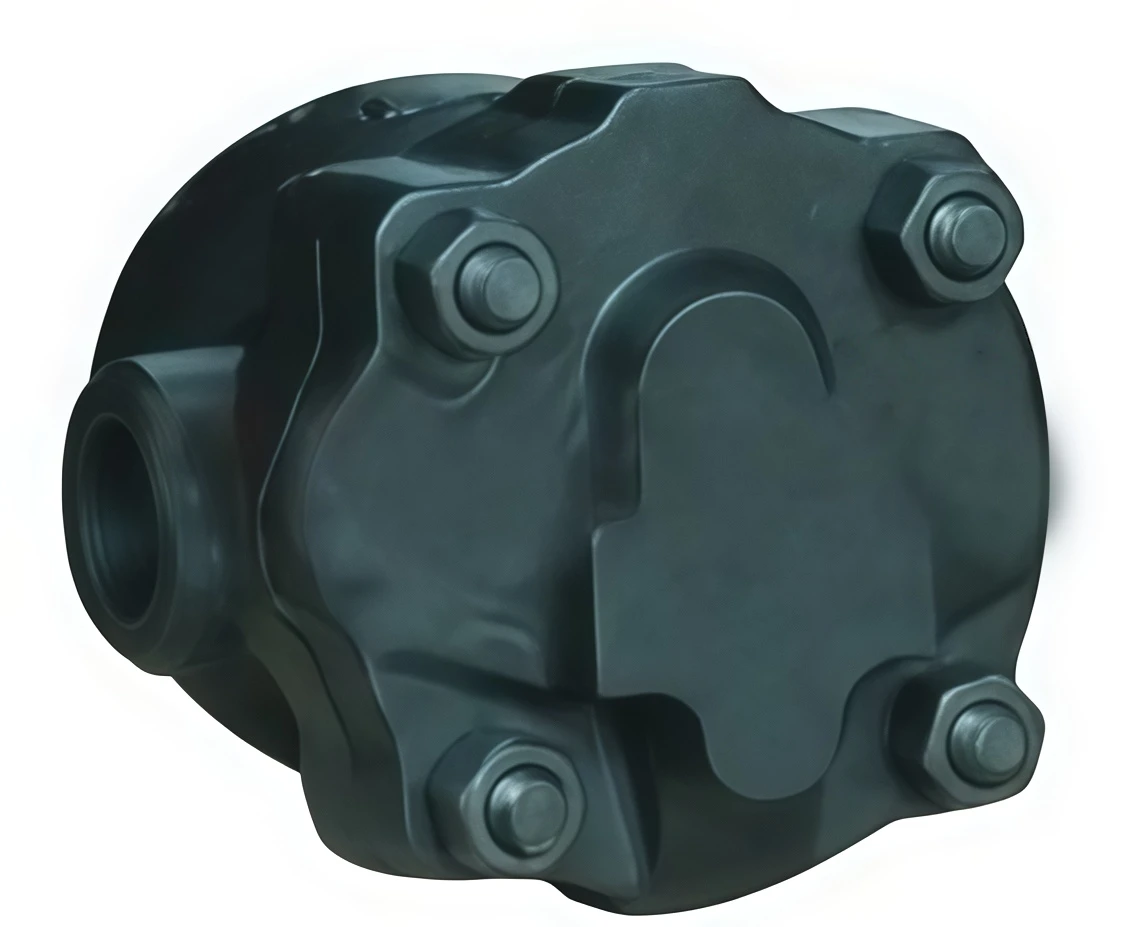

Lever floating ball type drain valve
With a simple mechanical structure, high sensitivity, reliable sealing, and stable operation, this valve effectively prevents liquid accumulation and improves the efficiency and safety of pipeline systems. It is suitable for applications requiring automatic drainage without external power supply.
We provide professional OEM manufacturing and customization services, including customized valve sizes, body materials, connection standards, pressure ratings, float ball and lever designs, sealing materials, drainage capacity, surface treatments, logo marking, and packaging solutions. Our engineering team can develop customized products according to customer drawings, operating conditions, and special application requirements.
All products are manufactured under strict quality management systems and are supplied with complete valve industry certifications, including material certificates, pressure test reports, quality inspection documents, and other compliance certifications required for international markets.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Lever Floating Ball Type Drain Valve |
| Valve Type | Automatic Float Ball Drain Valve |
| Operation Method | Mechanical Lever Float Control |
| Working Principle | Liquid Level Controlled Automatic Opening and Closing |
| Valve Structure | Floating Ball + Lever Mechanism |
| Valve Body Material | Stainless Steel / Brass / Carbon Steel / Cast Iron / Customized |
| Float Ball Material | Stainless Steel / Copper Alloy / Engineering Plastic |
| Lever Material | Stainless Steel / Alloy Material |
| Connection Type | Threaded / Flanged / Socket Weld / Customized |
| Connection Standard | ANSI / DIN / JIS / BSP / NPT |
| Nominal Size | DN15–DN100 (Customized Available) |
| Pressure Rating | PN10–PN63 |
| Maximum Working Pressure | Up to 6.3 MPa (According to Design Requirements) |
| Working Temperature | -20°C to +300°C (Customized Available) |
| Applicable Medium | Water, Condensate, Air, Steam, Oil, Process Fluids |
| Drainage Mode | Automatic Liquid Level Drainage |
| Flow Capacity | Customized According to Application Requirements |
| Sealing Material | PTFE / NBR / EPDM / Viton / Customized |
| Leakage Performance | High Sealing Performance, Low Leakage Design |
| Installation Method | Horizontal Installation Recommended |
| Maintenance | Simple Structure, Easy Inspection and Replacement |
| Surface Treatment | Polishing / Anti-corrosion Coating / Customized |
| OEM Capability | Customized Size, Material, Structure, Connection, Logo, Packaging |
| Inspection Standard | Pressure Test, Leakage Test, Functional Performance Test |
| Certifications | ISO Quality System, Material Certificate, Pressure Test Certificate, Industry Compliance Documents |
Industry Applications
The Lever Floating Ball Type Drain Valve is widely used in various industrial fields requiring automatic liquid drainage, including:
Key Advantages:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
