Soda separator
The Soda Separator is an efficient steam-water separation device designed to remove liquid droplets, condensate, and impurities from steam systems, ensuring the delivery of high-quality dry steam. By utilizing centrifugal separation, baffle separation, or internal flow separation technology, it effectively improves steam quality, protects downstream equipment, and enhances the operating efficiency of industrial systems.

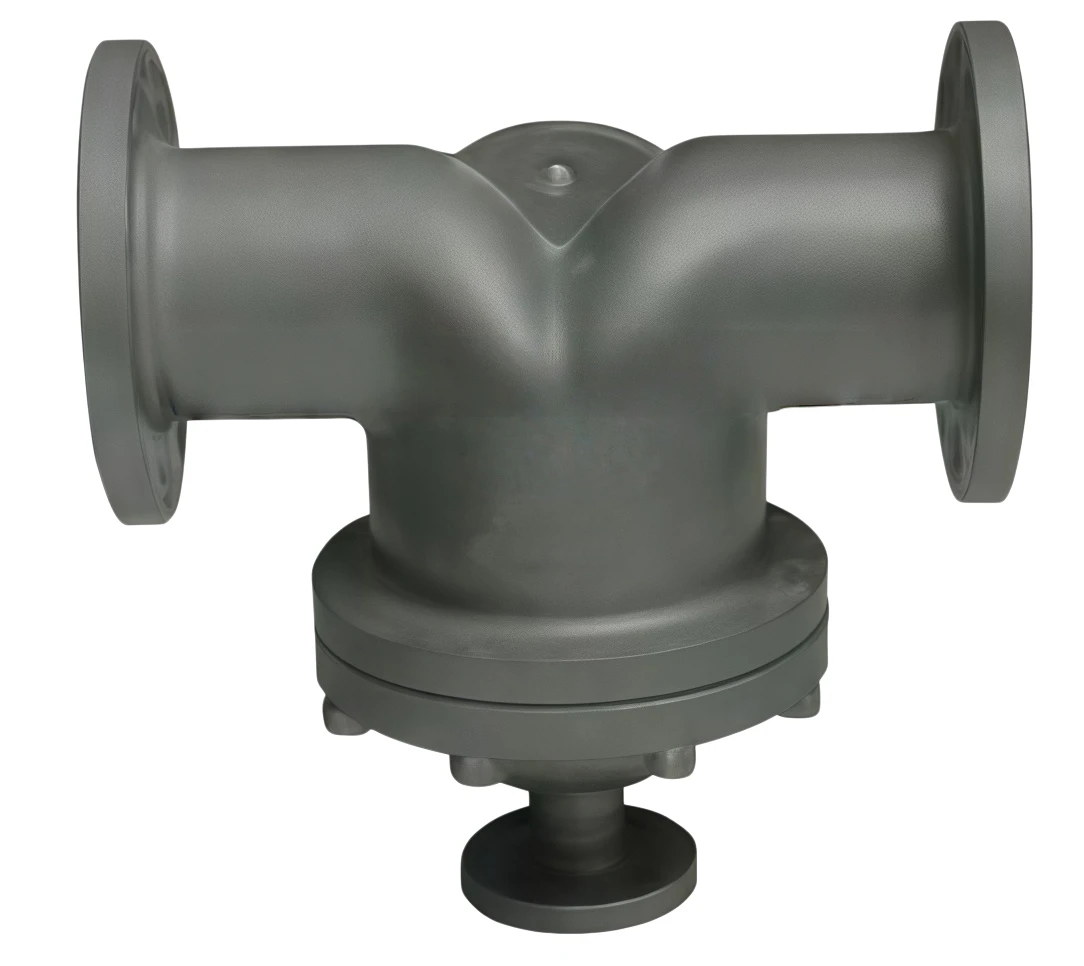

Soda separator
This separator features a compact structure, high separation efficiency, low pressure loss, strong corrosion resistance, and reliable long-term operation. It is widely used in steam pipelines, thermal power systems, boilers, chemical processing equipment, and industrial heating applications where clean and dry steam is required.
We provide professional OEM manufacturing and customization services, including customized separator sizes, body materials, pressure ratings, connection standards, internal separator structures, drainage configurations, surface treatments, logo marking, and packaging solutions. Our engineering team can develop customized solutions according to customer drawings, operating conditions, flow requirements, and installation environments.
All products are manufactured under strict quality control systems and are supplied with complete valve industry certifications, including material certificates, pressure test reports, quality inspection documents, and other compliance certifications required for international markets.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Soda Separator |
| Product Type | Steam-Water Separator / Gas-Liquid Separator |
| Separation Method | Centrifugal Separation / Baffle Separation / Flow Separation |
| Application Medium | Steam, Water Vapor, Gas-Liquid Mixture |
| Valve Body Material | Carbon Steel / Stainless Steel / Alloy Steel / Customized |
| Internal Components Material | Stainless Steel / Corrosion Resistant Alloy |
| Connection Type | Flanged / Threaded / Socket Weld / Customized |
| Connection Standard | ANSI / DIN / JIS / GB / BSP / NPT |
| Nominal Size | DN15–DN500 (Customized Available) |
| Pressure Rating | PN10–PN160 |
| Maximum Working Pressure | Up to 16.0 MPa (According to Design Requirements) |
| Working Temperature | -20°C to +550°C (Customized Available) |
| Separation Efficiency | Up to 95–99% (According to Operating Conditions) |
| Pressure Loss | Low Pressure Drop Design |
| Drainage Method | Automatic Drainage / External Drain Connection |
| Applicable Fluids | Steam, Compressed Air, Gas, Industrial Process Fluids |
| Installation Position | Horizontal / Vertical Installation According to Model |
| Surface Treatment | Anti-corrosion Coating / Polishing / Customized |
| Design Standard | ASME / GB / DIN / Customized Standards |
| OEM Capability | Customized Size, Material, Structure, Connection, Logo, Packaging |
| Inspection Standard | Pressure Test, Leakage Test, Performance Test |
| Certifications | ISO Quality System, Material Certificate, Pressure Test Certificate, Industry Compliance Documents |
Industry Applications
The Soda Separator is widely used in industrial systems requiring efficient gas-liquid separation and improved steam quality, including:
Key Advantages:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
