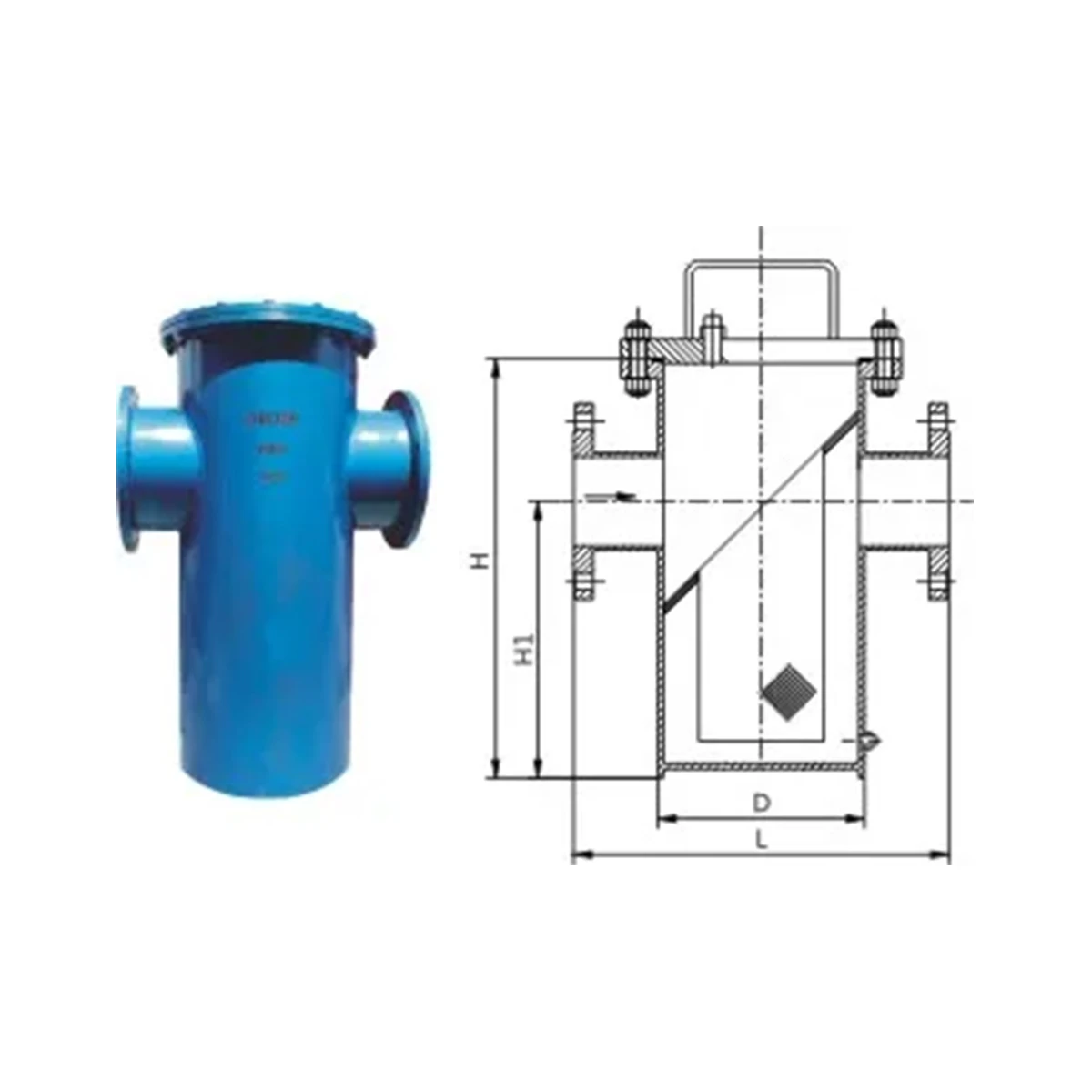

Basket Filter
Nominal Diameter: 2"~20"
Nominal Pressure: 50~900Lb
Applicable Media: Water, Steam, Oils, etc.
Applicable Temperature: ≤650°C
Basket Filter
The Basket Filter is a high-capacity filtration device designed for removing solid particles, debris, rust, and other contaminants from liquids and gases in pipelines. Its basket-type design allows for a large filtration area, providing low pressure drop, high dirt-holding capacity, and extended maintenance intervals.
Basket filters are particularly suitable for high-flow systems where continuous operation and reliable filtration are critical. They protect pumps, valves, heat exchangers, meters, and other downstream equipment, improving operational efficiency and reducing maintenance costs.
We provide comprehensive OEM and customization services to meet customer-specific requirements.
Body Materials:
Basket Materials:
Parameter Specifications
| Item | Specification |
|---|---|
| Product Name | Basket Filter |
| Product Type | Pipeline Filtration Equipment |
| Nominal Size | DN50–DN2000 (2"–80") |
| Pressure Rating | PN10–PN420 / ANSI Class 150–2500 |
| Body Material | Carbon Steel, Stainless Steel, Duplex SS, Alloy Steel, Titanium, Bronze |
| Basket Material | SS304, SS316, Duplex SS, Monel, Hastelloy |
| Filtration Accuracy | 10–5000 Microns |
| Mesh Size | 20–400 Mesh (Customizable) |
| Connection Type | Flanged, Threaded, Welded |
| Flange Standard | ANSI, ASME, DIN, EN, JIS, GB |
| Operating Temperature | -196°C to +600°C |
| Maximum Working Pressure | Up to 42 MPa |
| Cover Type | Bolted Cover / Hinged Cover |
| Drain Connection | Optional Blow-Off Connection |
| Sealing Material | PTFE, Graphite, Flexible Graphite |
| Design Standard | ASME B16.34, DIN, EN, GB |
| Inspection Standard | API 598, EN 12266 |
| Surface Treatment | Epoxy Coating, Galvanizing, Passivation |
| Applicable Media | Water, Steam, Oil, Gas, Chemicals |
| Installation Position | Horizontal or Vertical Pipeline |
| Basket Type | Single Basket / Duplex Basket / Self-Cleaning (Optional) |
Industry Applications
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
