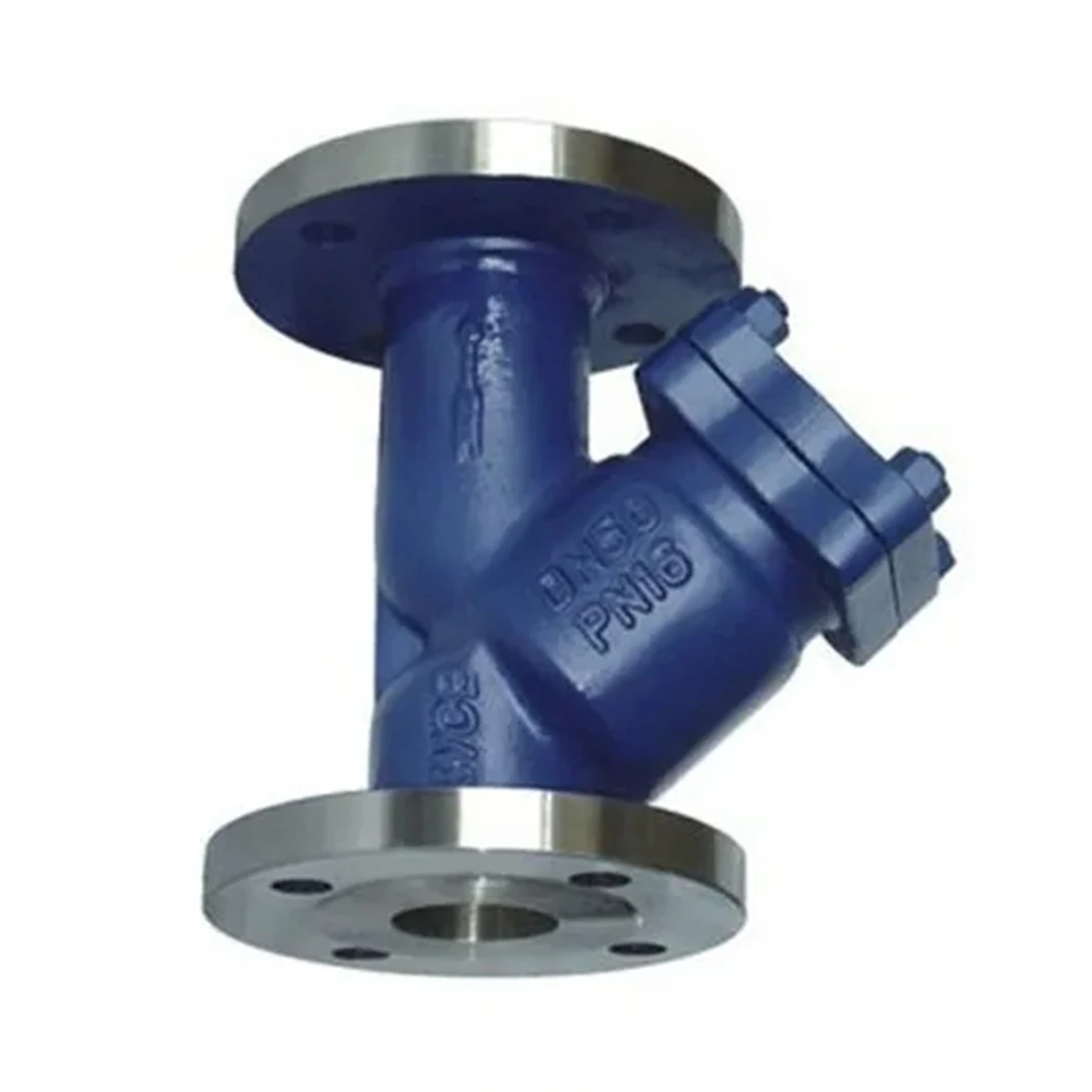

Y-Type Filter
Nominal Diameter: 2"~10"
Nominal Pressure: 50~900Lb
Applicable Media: Water, Steam, Oils, Acidic and Alkaline Solutions
Applicable Temperature: ≤650°C
Y-Type Filter
The Y-Type Filter (Y-Strainer) is a highly efficient filtration device designed to remove solid particles, debris, rust, scale, and other impurities from liquid, gas, steam, and process media pipelines. Featuring a compact Y-shaped body structure, the filter provides low pressure loss, high filtration efficiency, and easy maintenance, helping protect pumps, valves, meters, regulators, and other downstream equipment from damage and wear.
Y-Type Filters are widely used in water treatment, petrochemical, power generation, HVAC, oil & gas, pharmaceutical, food processing, and industrial pipeline systems where reliable filtration is essential for safe and efficient operation.
As a professional industrial valve and pipeline equipment manufacturer, we provide complete OEM and ODM solutions according to customer requirements.
Body Materials
Filter Screen Materials
Our products are manufactured under strict quality management systems and comply with international industry standards.
Parameter Specifications
| Item | Specification |
|---|---|
| Product Name | Y-Type Filter (Y-Strainer) |
| Product Type | Pipeline Filtration Equipment |
| Nominal Size | DN15–DN2000 (½"–80") |
| Pressure Rating | PN10–PN420 / ANSI Class 150–2500 |
| Body Material | Cast Iron, Ductile Iron, WCB, CF8, CF8M, Duplex SS |
| Screen Material | SS304, SS316, Duplex SS, Monel, Hastelloy |
| Filtration Accuracy | 10–5000 Microns |
| Mesh Size | 20–400 Mesh (Customizable) |
| Connection Type | Flanged, Threaded, Welded |
| Flange Standard | ANSI, ASME, DIN, EN, JIS, GB |
| Operating Temperature | -196°C to +600°C |
| Maximum Working Pressure | Up to 42 MPa |
| Cover Type | Bolted Cover / Threaded Cap |
| Drain Connection | Optional Blow-Off Connection |
| Sealing Material | PTFE, Graphite, Flexible Graphite |
| Design Standard | ASME B16.34, DIN, EN, GB |
| Inspection Standard | API 598, EN 12266 |
| Surface Treatment | Epoxy Coating, Galvanizing, Passivation |
| Applicable Media | Water, Steam, Oil, Gas, Chemicals |
| Installation Position | Horizontal or Vertical Pipeline |
Industry Applications
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
