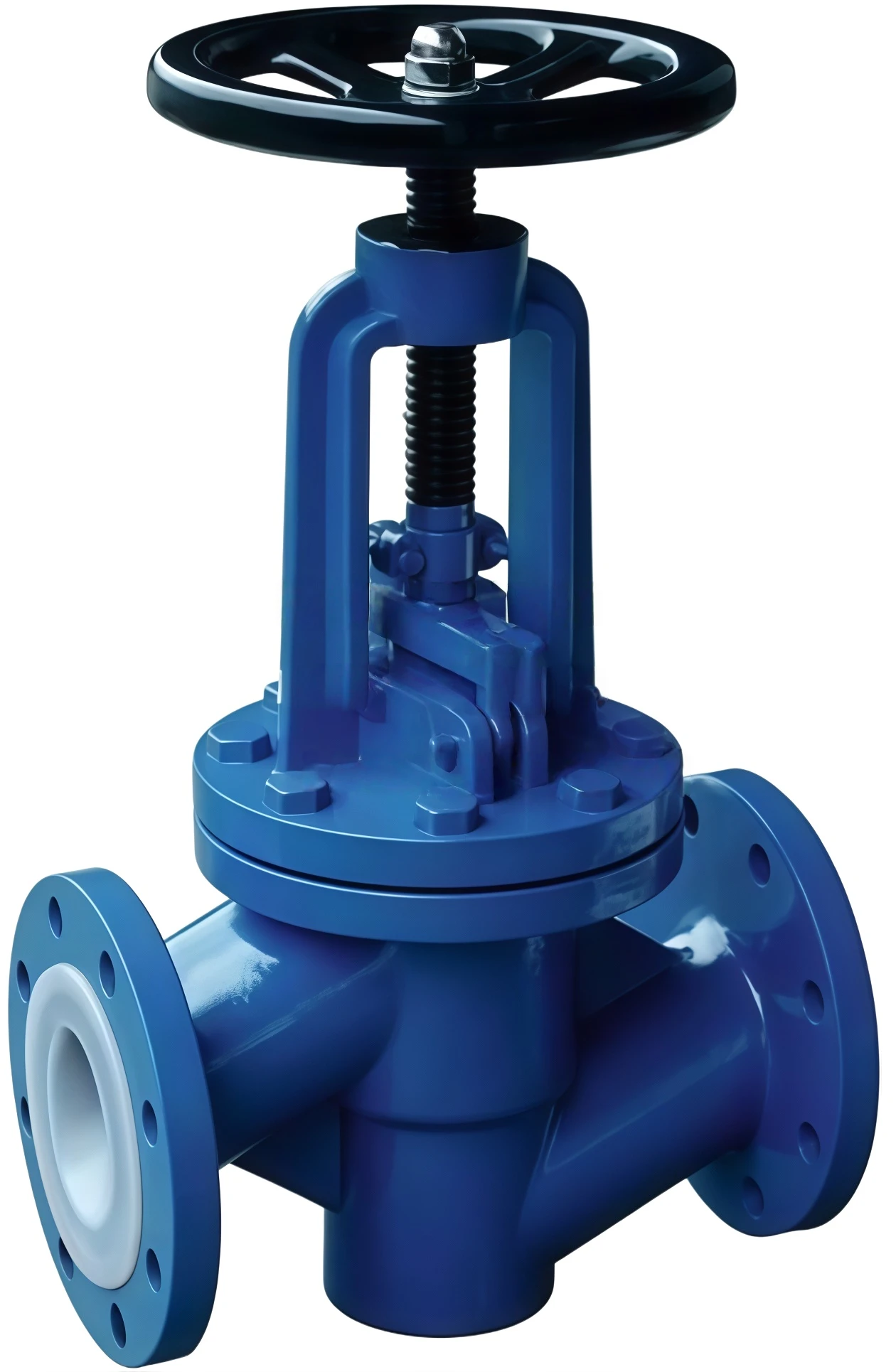

Flange fluorine lined globe valve
The Flange Fluorine Lined Globe Valve is a high-performance corrosion-resistant control valve designed for reliable shut-off and flow regulation in harsh chemical and industrial environments. The valve body is lined with high-quality fluorine materials such as PTFE, FEP, PFA, or ETFE, providing excellent resistance against strong acids, alkalis, solvents, and other highly corrosive media.
Flange fluorine lined globe valve
With a flanged connection design, this valve ensures easy installation, stable sealing performance, and convenient maintenance. The globe valve structure provides precise flow control, making it suitable for applications requiring frequent adjustment and strict leakage prevention.
We provide comprehensive OEM and ODM services, including customized valve sizes, pressure ratings, lining materials, connection standards, actuator configurations, surface treatments, logo branding, and packaging solutions. Our manufacturing capabilities support customized solutions according to customer drawings, technical specifications, and special working conditions.
Our fluorine lined globe valves are manufactured under strict quality control systems and comply with international valve industry standards. The products can be supplied with complete industry certifications and inspection documents, including ISO quality management certification, CE certification, pressure testing reports, material certificates, and other relevant valve industry certificates to meet global market requirements.
Our OEM customization services include:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Flange Fluorine Lined Globe Valve |
| Valve Type | Fluorine Lined Globe Valve |
| Connection Type | Flanged End |
| Nominal Size | DN15–DN500 (Customized Available) |
| Pressure Rating | PN6–PN25 / Class 150–300 |
| Body Material | Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel |
| Lining Material | PTFE / FEP / PFA / ETFE |
| Disc Material | Carbon Steel / Stainless Steel with Fluorine Lining |
| Stem Material | Stainless Steel |
| Sealing Material | PTFE, FEP, Fluorine Compound |
| Operating Temperature | -40℃ to +180℃ (Depending on Lining Material) |
| Applicable Medium | Strong Acid, Strong Alkali, Chemical Solvents, Corrosive Fluids |
| Operation Method | Manual Handwheel / Pneumatic Actuator / Electric Actuator |
| Flange Standard | ANSI / JIS / DIN / GB Standard |
| Face-to-Face Standard | GB / ANSI / DIN Customized |
| Leakage Standard | Zero Leakage Performance (According to Applicable Standards) |
| Testing Standard | API 598 / EN 12266 / Industrial Pressure Testing Standard |
| OEM Service | Customized Design, Logo, Size, Material, Actuator, Packaging |
| Certification | ISO, CE, Material Certificate, Pressure Test Report |
Industry Applications
Flange Fluorine Lined Globe Valves are widely used in industries requiring excellent corrosion resistance and reliable flow control:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
