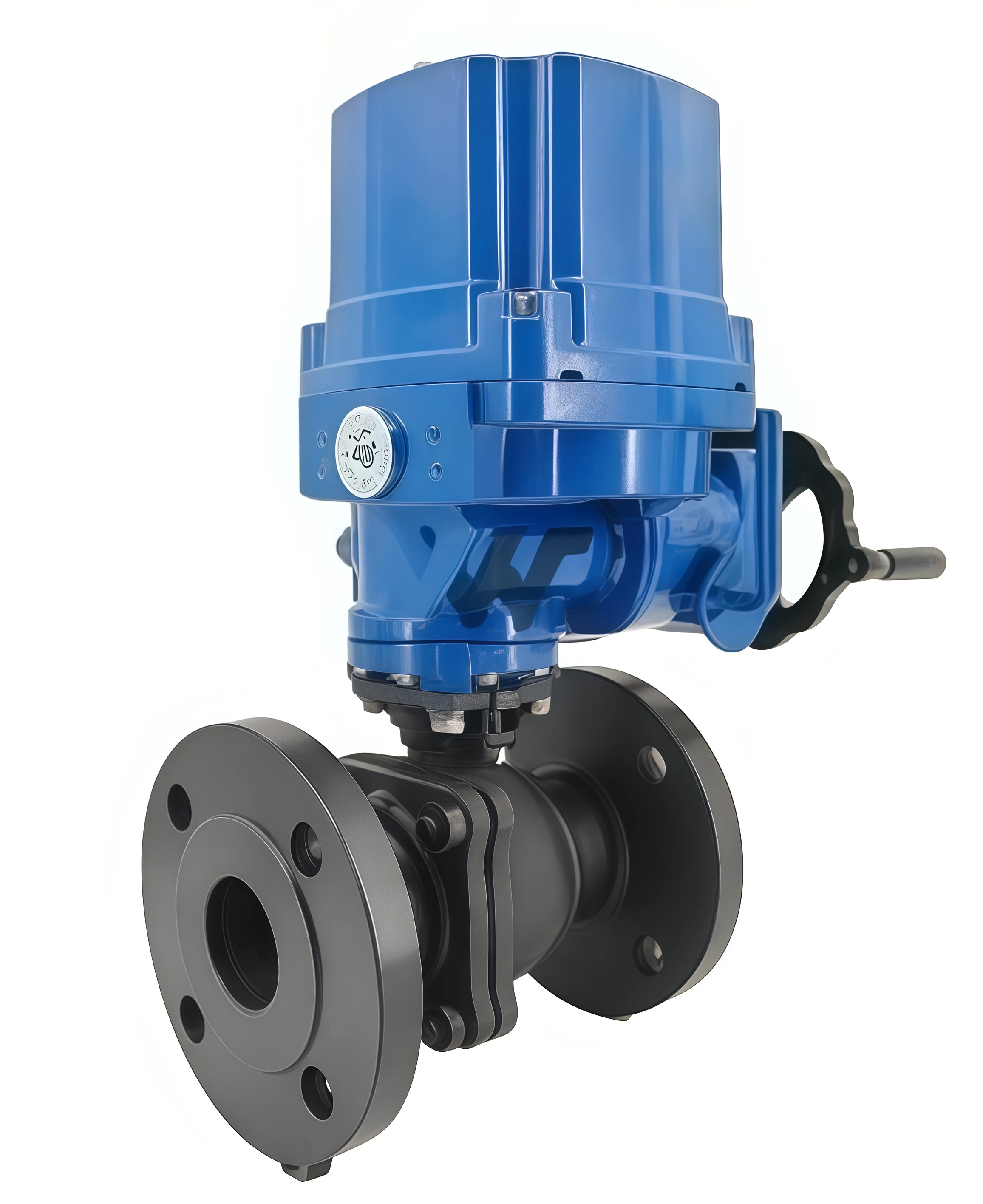

Fluorine lined electric ball valve
The Fluorine Lined Electric Ball Valve is a high-performance corrosion-resistant valve designed for automated shut-off and flow control of highly corrosive media. The valve body and wetted components are lined with advanced fluorine materials such as PTFE, FEP, PFA, or ETFE, providing excellent chemical resistance, reliable sealing performance, and extended service life in harsh industrial environments.

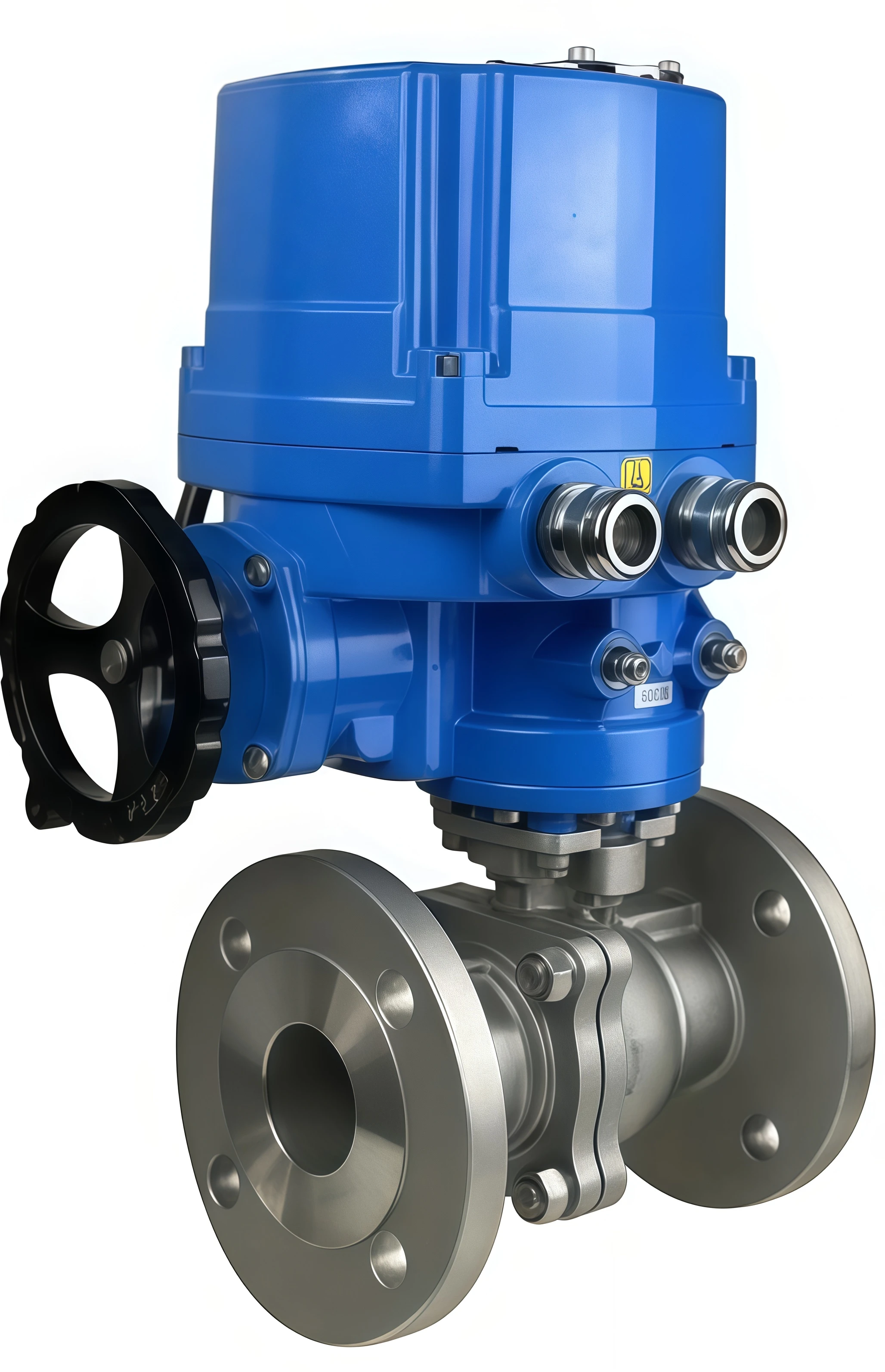

Fluorine lined electric ball valve
Equipped with an electric actuator, this ball valve enables remote operation, automatic process control, and precise flow management. The full fluorine lining effectively isolates the metal valve components from corrosive fluids, preventing damage caused by strong acids, alkalis, solvents, and other aggressive chemicals.
The ball valve structure features low flow resistance, quick opening and closing, tight shut-off performance, and stable operation. It is suitable for modern industrial automation systems requiring corrosion resistance, safety, and high reliability.
We provide professional OEM and ODM customization services, including customized valve sizes, pressure ratings, lining materials, connection standards, electric actuator specifications, control modes, protection grades, wiring configurations, logo branding, and packaging solutions. Our engineering team can design and manufacture customized products according to customer drawings, technical requirements, and special application conditions.
Our fluorine lined electric ball valves are manufactured under strict quality management systems with complete valve industry certifications and inspection documents, including ISO quality certification, CE certification, material certificates, pressure test reports, and other international valve industry certificates, ensuring reliable quality and compliance with global standards.
Our OEM and customization capabilities include:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Fluorine Lined Electric Ball Valve |
| Valve Type | Electric Actuated Fluorine Lined Ball Valve |
| Lining Material | PTFE / FEP / PFA / ETFE |
| Body Material | Cast Iron / Carbon Steel / Stainless Steel |
| Ball Material | Stainless Steel with Fluorine Lining |
| Stem Material | Stainless Steel |
| Seat Material | PTFE / Reinforced PTFE |
| Connection Type | Flanged / Wafer / Threaded (Optional) |
| Nominal Size | DN15–DN300 (Customized Available) |
| Pressure Rating | PN6–PN25 / Class 150–300 |
| Operating Temperature | -40℃ to +180℃ (Depending on Lining Material) |
| Applicable Medium | Strong Acid, Strong Alkali, Chemical Solvents, Corrosive Liquids |
| Flow Direction | Bidirectional |
| Actuator Type | Electric Actuator |
| Control Mode | ON/OFF Control / Modulating Control |
| Power Supply | AC220V / AC380V / DC24V (Customized) |
| Protection Grade | IP65 / IP67 / Explosion-Proof Optional |
| Control Signal | 4-20mA / 0-10V / Switch Signal |
| Flange Standard | ANSI / DIN / JIS / GB Standard |
| Sealing Performance | Bubble Tight Shut-Off |
| Leakage Standard | API 598 / EN 12266 |
| Operating Torque | Customized According to Valve Size |
| OEM Capability | Customized Design, Materials, Actuators, Logo, Packaging |
| Certification | ISO, CE, Pressure Test Report, Material Certificate |
Industry Applications
The Fluorine Lined Electric Ball Valve is widely used in industries requiring corrosion resistance, automatic control, and reliable shut-off:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
