Product Overview

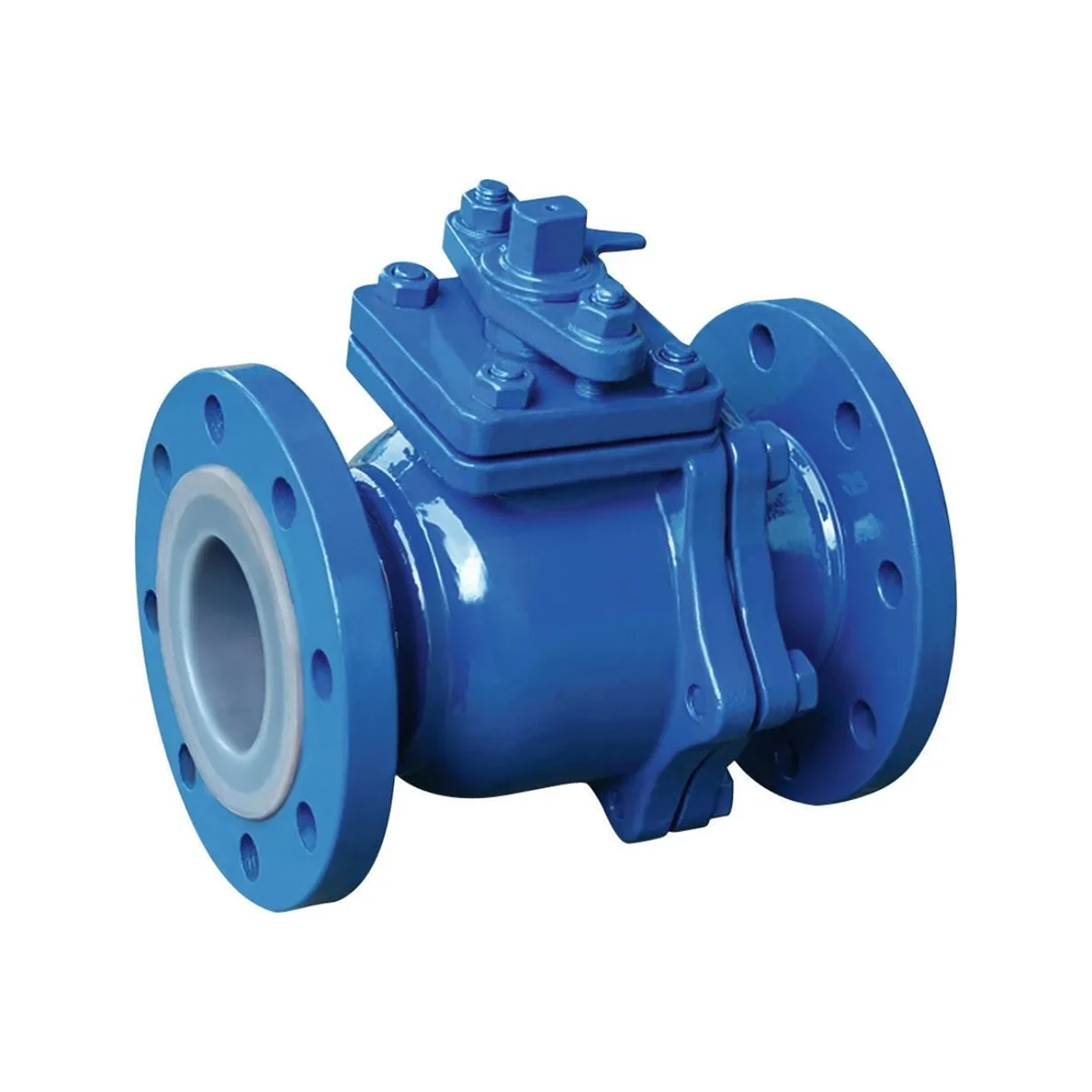

The Fluorine-Lined Flange Ball Valve is a highly corrosion-resistant valve designed for handling aggressive, corrosive, and high-purity chemical media. The valve features a full fluoropolymer (PTFE, PFA, FEP) lining on the body and ball surfaces, protecting the metal from chemical attack while ensuring smooth operation and tight shut-off.

Its flanged connection allows for robust and secure pipeline installation, while the ball valve design provides fast, reliable on/off operation and minimal pressure drop. This type of valve is widely used in chemical processing, pharmaceutical, water treatment, and other industries where corrosive media handling is critical.

Key Features

Full PTFE/PFA/FEP lining for corrosion protection
Bi-directional tight shut-off
Flanged ends for secure installation
Smooth operation with low torque
Fire-safe design available
Resistant to aggressive acids, alkalis, and solvents
High-temperature and high-pressure operation possible
Long service life with minimal maintenance
Optional electric, pneumatic, or manual actuation

OEM & Customization Capabilities

OEM Service Scope

Private label production and branding
Custom nameplates and packaging
Project-specific valve design and engineering
Special inspection and testing procedures
Technical support and integration services

Customization Capabilities

Valve sizes from DN15 to DN500 (½"–20")
Pressure ratings: PN10–PN40 / ANSI Class 150–600
Fluorine lining: PTFE, PFA, FEP
Body materials: Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel
Seat materials: PTFE, PFA, FEP, RPTFE
Full bore, reduced bore, or V-port design
Fire-safe and anti-static designs available
Manual lever, gear, pneumatic, or electric actuator
Special coatings and high-purity surface treatments
High-temperature and cryogenic versions
Custom flange standards: ANSI, DIN, JIS, EN

Available Materials

Body Materials:

Carbon Steel (WCB, WCC)
Stainless Steel (304, 316, CF8, CF8M)
Alloy Steel
Duplex Stainless Steel

Ball & Stem Materials:

Stainless Steel 304/316
Alloy Steel with fluorine lining
PTFE-coated ball for full corrosion resistance

Seat & Lining Materials:

PTFE
PFA
FEP
RPTFE

Certifications

ISO 9001 Quality Management System
ISO 14001 Environmental Management System
ISO 45001 Occupational Health & Safety Management System
CE Certification
API 608 / API 607 Compliance
PED (Pressure Equipment Directive)
ATEX / IECEx Certifications
SIL Functional Safety Certification
RoHS Compliance
EN 10204 3.1 / 3.2 Material Certification
Third-party inspection available (SGS, TUV, BV, Lloyd’s Register)

Parameter Specifications

Item	Specification
Product Name	Fluorine-Lined Flange Ball Valve
Valve Type	Ball Valve, Flanged, Fluorine-Lined
Nominal Size	DN15–DN500 (½"–20")
Pressure Rating	PN10–PN40 / ANSI Class 150–600
Body Material	WCB, WCC, SS304, SS316, CF8, CF8M, Duplex SS
Ball Material	SS304, SS316, Alloy Steel with PTFE/PFA/FEP coating
Stem Material	SS304, SS316, Alloy Steel
Seat Material	PTFE, PFA, FEP, RPTFE
Bore Type	Full Bore / Reduced Bore / V-Port
End Connection	Flanged
Flange Standard	ANSI, DIN, EN, JIS, GB
Operating Temperature	-40°C to +200°C (depending on lining material)
Maximum Working Pressure	Up to 4.0 MPa (PN40)
Leakage Class	ANSI/FCI 70-2 Class VI
Operation Type	Manual Lever, Gear, Pneumatic, Electric Actuator
Anti-Static Feature	Optional
Fire-Safe Design	API 607 / API 6FA (Optional)
Design Standard	API 608, ASME B16.34
Face-to-Face Standard	ASME B16.10
Inspection & Testing	API 598, EN 12266
Applicable Media	Strong acids, alkalis, solvents, corrosive chemicals, high-purity liquids

Industry Applications

Chemical & Petrochemical Industry

Acid and alkali handling pipelines
Corrosive chemical process lines
Solvent transport systems
Aggressive media reactors and tanks

Pharmaceutical & Food Industry

High-purity fluid transfer
Sterile process pipelines
Laboratory chemical handling
Clean-in-place (CIP) systems

Water & Wastewater Treatment

Acid and alkali dosing lines
Corrosive wastewater pipelines
Reverse osmosis and desalination systems
Chemical treatment dosing systems

Power Generation & Utilities

Corrosive cooling water pipelines
Flue gas desulfurization systems
Chemical feed systems for boilers
Wastewater treatment plants

Petrochemical Offshore & Marine

Corrosive chemical pipelines on offshore platforms
Acid gas handling
High-purity process lines
Corrosion protection in harsh environments

Typical Media

Hydrochloric acid, Sulfuric acid, Nitric acid
Sodium hydroxide, Caustic solutions
Organic solvents
Corrosive water and chemicals
High-purity process fluids
