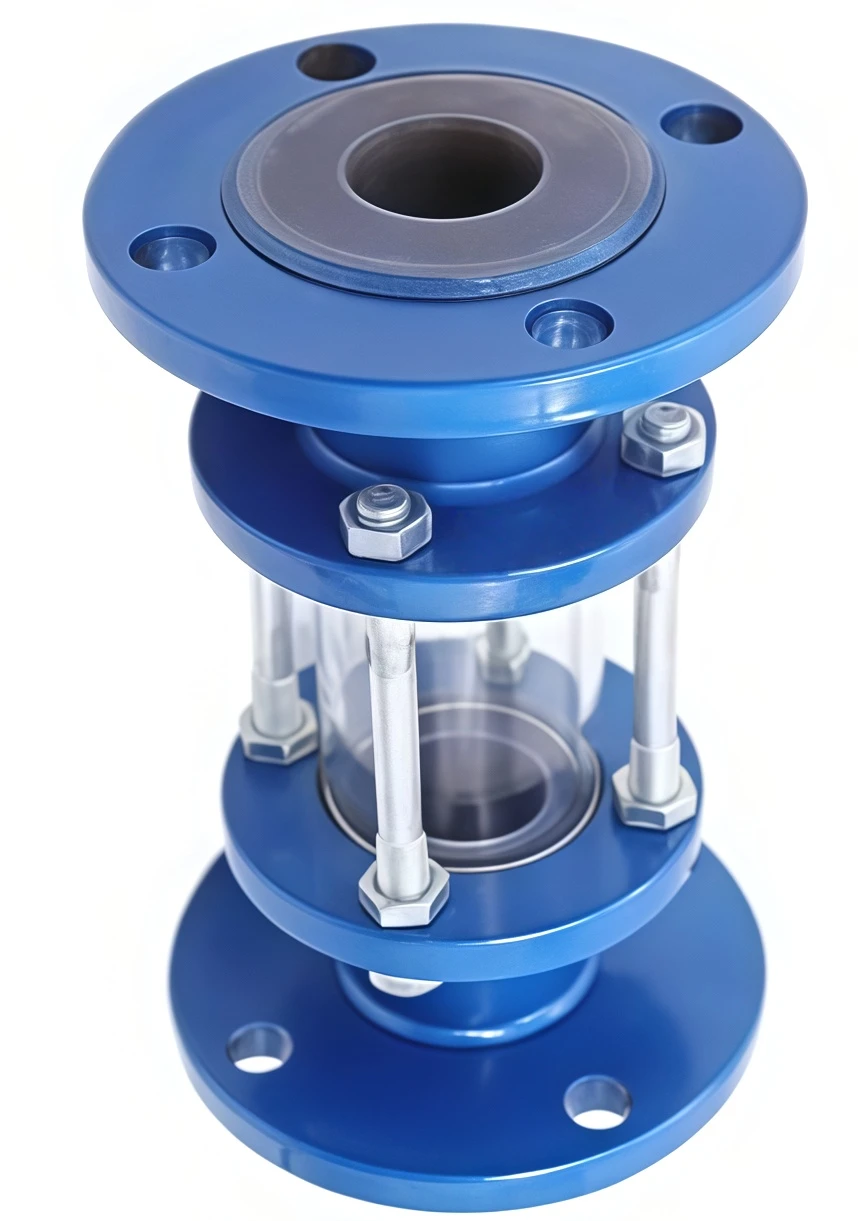

Fluorine lining mirror
The Fluorine Lined Mirror is a corrosion-resistant visual inspection component designed for industrial pipelines and equipment requiring safe and clear observation of internal media conditions. The mirror surface and wetted parts are lined with high-performance fluorine materials such as PTFE, FEP, PFA, or ETFE, providing excellent resistance to strong acids, alkalis, solvents, and other corrosive substances.
Fluorine lining mirror
This product allows operators to visually monitor fluid flow, liquid level, color changes, contamination, and operating conditions without interrupting the production process. The fluorine lining provides a protective barrier that prevents corrosion, improves durability, and ensures reliable operation in harsh chemical environments.
The Fluorine Lined Mirror can be customized according to different industrial requirements, including body materials, lining materials, connection methods, pressure ratings, temperature ranges, dimensions, sealing structures, and installation methods. We provide professional OEM and ODM services based on customer drawings, samples, and technical specifications.
Our products are manufactured under strict quality management systems and supplied with complete valve industry certifications and inspection documents, including ISO quality certification, CE certification, material certificates, pressure testing reports, and other relevant industrial certificates, ensuring reliable performance and compliance with international standards.
Our OEM and customization capabilities include:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Fluorine Lined Mirror |
| Product Type | Fluorine Lined Sight Mirror / Visual Inspection Device |
| Lining Material | PTFE / FEP / PFA / ETFE |
| Body Material | Stainless Steel / Carbon Steel / Cast Steel / Customized |
| Mirror Material | Tempered Glass / Borosilicate Glass / Quartz Glass |
| Seal Material | PTFE / EPDM / FKM / NBR |
| Connection Type | Flanged / Threaded / Welded / Customized |
| Nominal Size | DN15–DN300 (Customized Available) |
| Pressure Rating | PN6–PN40 / Class 150–300 |
| Operating Temperature | -40℃ to +200℃ (Depending on Material Selection) |
| Applicable Medium | Acid, Alkali, Chemical Solvents, Corrosive Liquids, Gas |
| Viewing Function | Visual Monitoring of Flow and Medium Conditions |
| Installation Position | Horizontal or Vertical Pipeline Installation |
| Surface Treatment | Polishing / Anti-Corrosion Treatment / Customized |
| Design Feature | Corrosion Resistance, High Transparency, Easy Maintenance |
| Leakage Standard | According to Applicable Industrial Standards |
| OEM Capability | Customized Structure, Size, Material, Connection, Logo |
| Certification | ISO, CE, Material Certificate, Pressure Test Report |
Industry Applications
The Fluorine Lined Mirror is widely used in industries requiring corrosion-resistant visual inspection and process monitoring:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
