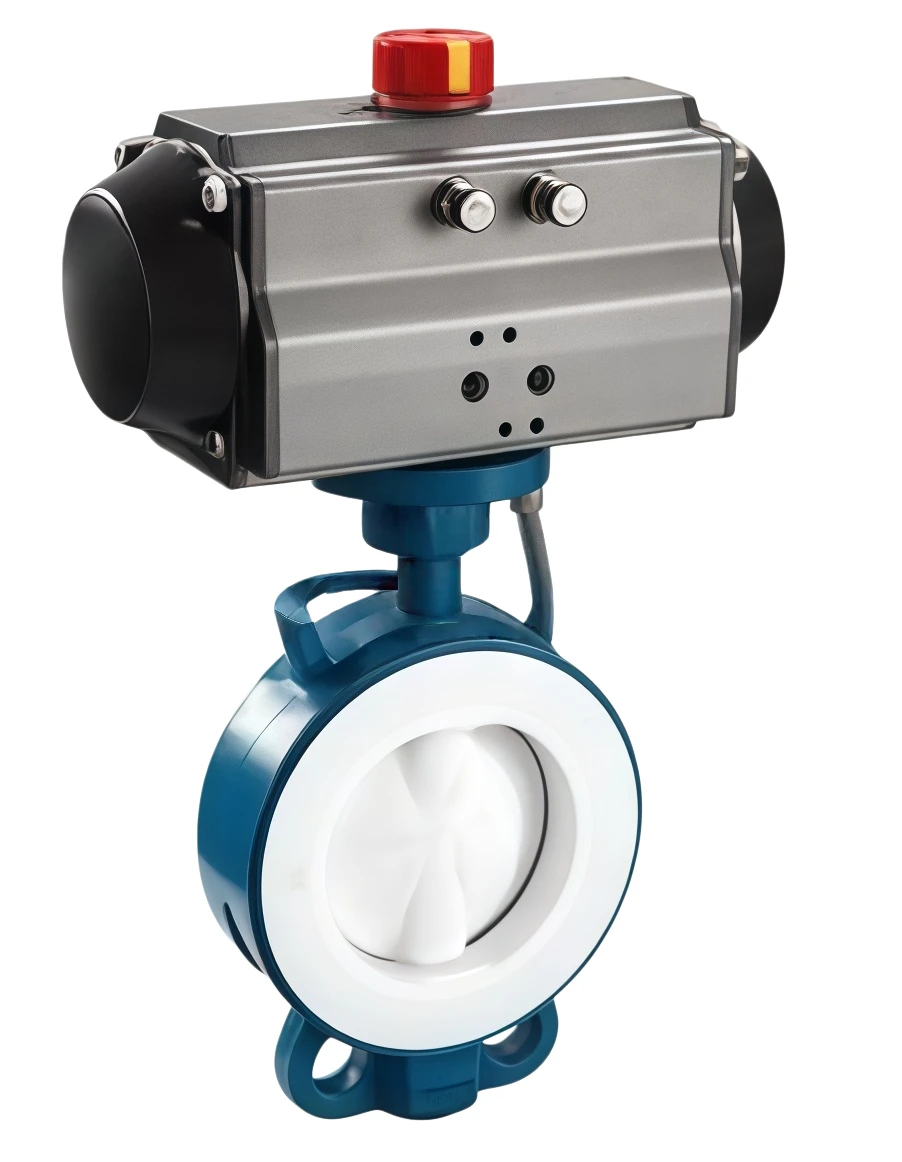

Fully lined PTFE electric butterfly valve
The Fully Lined PTFE Electric Butterfly Valve is a high-performance corrosion-resistant valve designed for automatic shut-off and flow regulation of highly corrosive fluids. The valve body and disc are fully lined with premium PTFE (Polytetrafluoroethylene) material, providing outstanding chemical resistance, excellent sealing performance, and long service life in aggressive operating environments.

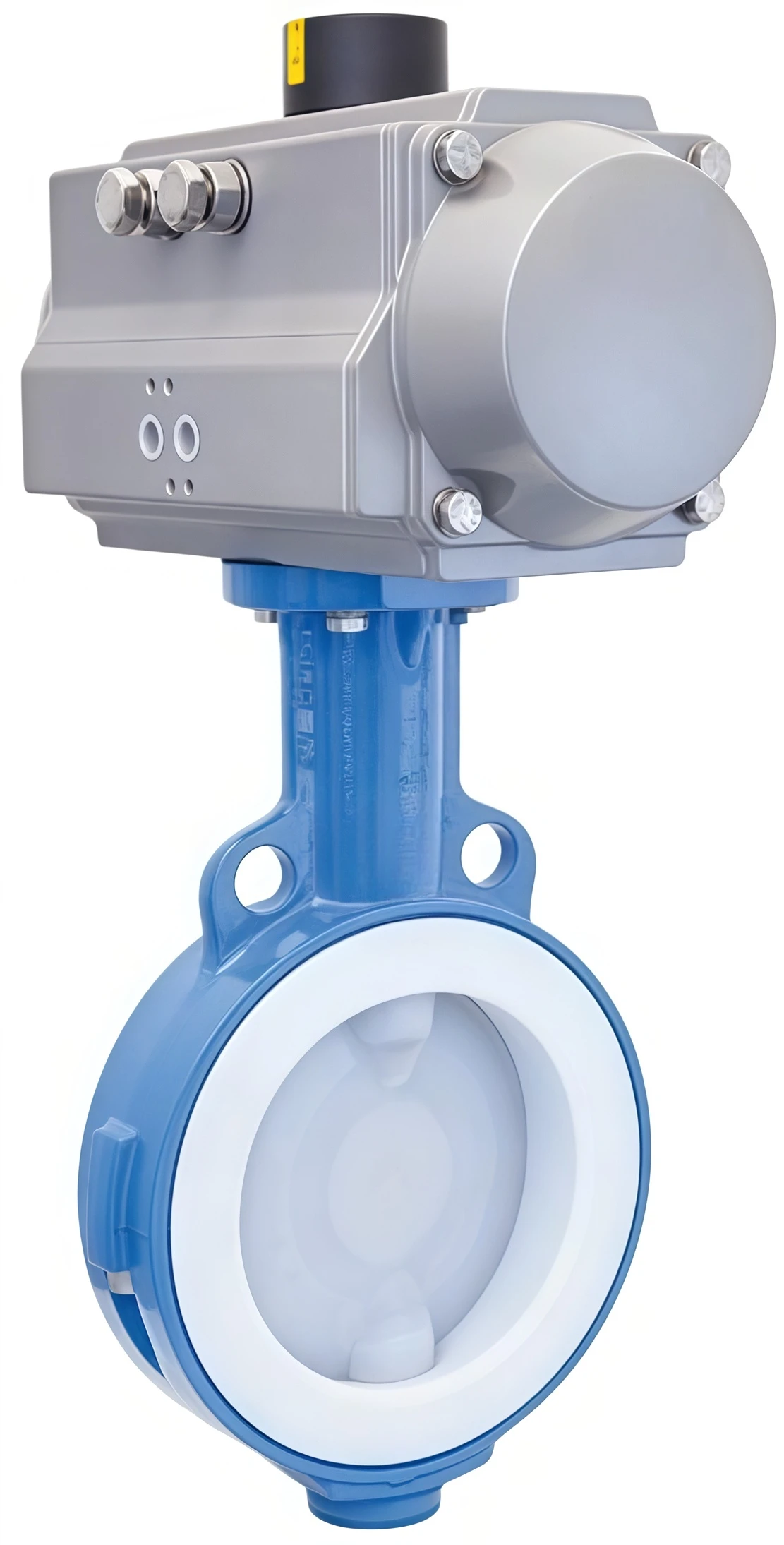

Fully lined PTFE electric butterfly valve
Equipped with an electric actuator, this butterfly valve enables remote control, automatic operation, and precise flow adjustment, making it ideal for modern industrial automation systems. The full PTFE lining effectively isolates the metal components from the medium, preventing corrosion caused by acids, alkalis, solvents, and other chemical substances.
We provide professional OEM and ODM customization services, including customized valve sizes, pressure ratings, lining materials, flange standards, electric actuator brands, control signals, protection grades, wiring configurations, logo marking, and packaging solutions. Our engineering team can develop customized solutions according to customer drawings, technical requirements, and special working conditions.
Our fully lined PTFE electric butterfly valves are manufactured under strict quality management systems with complete valve industry certifications and inspection documents, including ISO quality certification, CE certification, material certificates, pressure testing reports, and other international valve industry certificates, ensuring reliable quality and global application compliance.
Our OEM customization capabilities include:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Fully Lined PTFE Electric Butterfly Valve |
| Valve Type | Electric Actuated Butterfly Valve |
| Lining Material | PTFE / PFA / FEP (Optional) |
| Valve Body Material | Cast Iron / Ductile Iron / Carbon Steel / Stainless Steel |
| Disc Material | Stainless Steel with PTFE Lining |
| Stem Material | Stainless Steel |
| Connection Type | Wafer / Flanged Type |
| Nominal Size | DN25–DN600 (Customized Available) |
| Pressure Rating | PN6–PN16 / Class 150 |
| Operating Temperature | -40℃ to +180℃ (According to Lining Material) |
| Applicable Medium | Strong Acid, Strong Alkali, Chemical Solvents, Corrosive Liquids |
| Actuator Type | Electric Actuator |
| Control Mode | ON/OFF Control / Modulating Control |
| Power Supply | AC220V / AC380V / DC24V (Customized) |
| Protection Grade | IP65 / IP67 (Optional) |
| Flange Standard | ANSI / DIN / JIS / GB Standard |
| Sealing Performance | Bubble Tight Shut-Off |
| Leakage Standard | API 598 / EN 12266 |
| Installation Position | Horizontal or Vertical Installation |
| Operation Torque | Customized According to Valve Size |
| OEM Capability | Customized Design, Materials, Actuators, Logo, Packaging |
| Certification | ISO, CE, Pressure Test Report, Material Certificate |
Industry Applications
The Fully Lined PTFE Electric Butterfly Valve is widely used in industries requiring high corrosion resistance and automatic control:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
