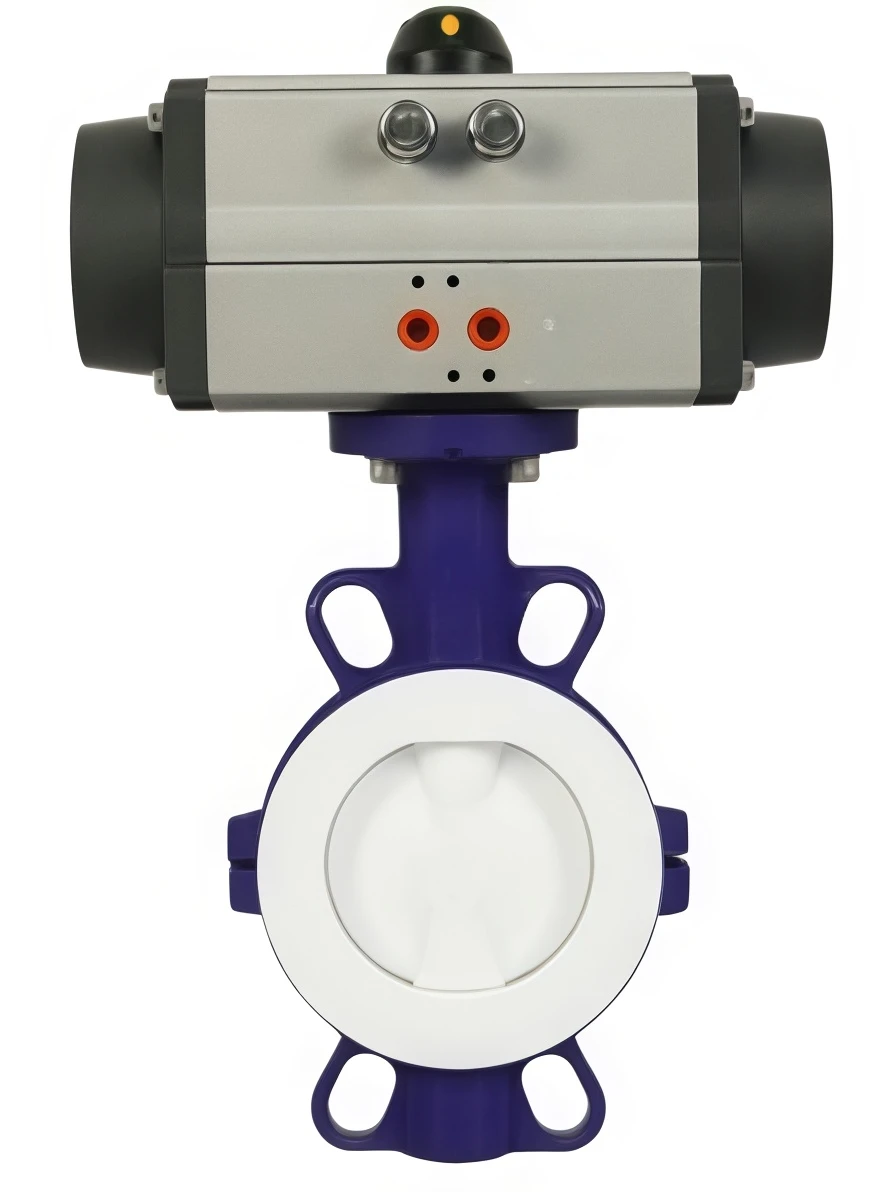

Fully lined PTFE pneumatic butterfly valve
The Fully Lined PTFE Pneumatic Butterfly Valve is a high-performance corrosion-resistant valve designed for automatic shut-off and flow control of highly corrosive media. The valve body and internal wetted parts are fully lined with premium PTFE (Polytetrafluoroethylene) material, providing excellent chemical resistance, superior sealing performance, and extended service life in aggressive industrial environments.

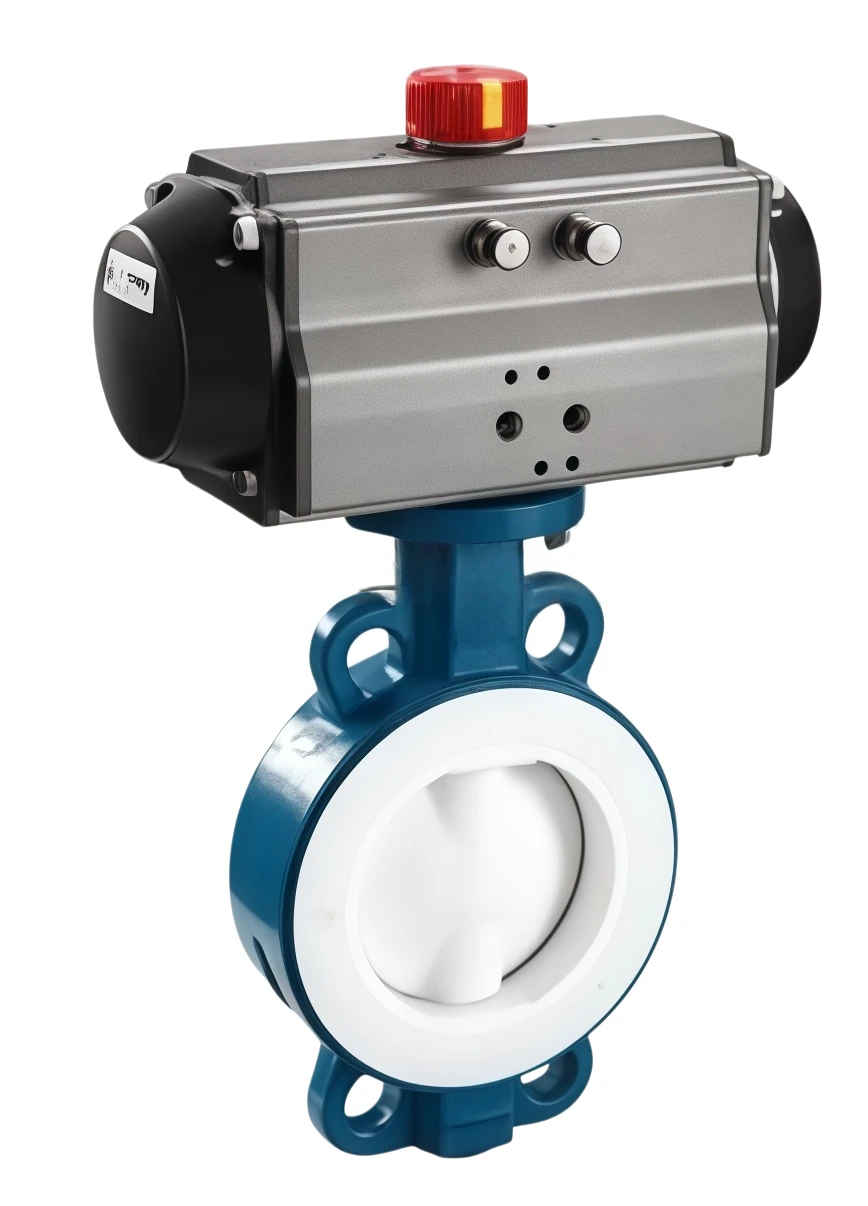

Fully lined PTFE pneumatic butterfly valve
Driven by a pneumatic actuator, this butterfly valve offers fast operation, reliable automation, and stable control performance. The complete PTFE lining creates a protective barrier between the valve body and the medium, effectively preventing corrosion caused by strong acids, alkalis, solvents, and other chemical fluids.
The valve features a compact structure, low operating torque, quick response, and excellent shut-off capability. It is widely used in automated process systems where corrosion resistance and reliable remote operation are required.
We provide professional OEM and ODM customization services, including customized valve dimensions, lining materials, pressure ratings, flange standards, pneumatic actuator specifications, control accessories, surface treatments, logo branding, and packaging solutions. Our engineering team can manufacture valves according to customer drawings, technical requirements, and special operating conditions.
Our fully lined PTFE pneumatic butterfly valves are produced under strict quality control systems with complete valve industry certifications and inspection documents, including ISO quality certification, CE certification, material certificates, pressure testing reports, and other internationally recognized valve industry certificates, ensuring dependable performance and compliance with global standards.
Our OEM and customization capabilities include:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Fully Lined PTFE Pneumatic Butterfly Valve |
| Valve Type | Pneumatic Actuated Butterfly Valve |
| Lining Material | PTFE / PFA / FEP (Optional) |
| Body Material | Cast Iron / Ductile Iron / Carbon Steel / Stainless Steel |
| Disc Material | Stainless Steel with PTFE Lining |
| Stem Material | Stainless Steel |
| Connection Type | Wafer / Flanged / Lug Type |
| Nominal Size | DN25–DN600 (Customized Available) |
| Pressure Rating | PN6–PN16 / Class 150 |
| Operating Temperature | -40℃ to +180℃ (Depending on Lining Material) |
| Applicable Medium | Strong Acid, Strong Alkali, Chemical Solvents, Corrosive Liquids |
| Actuator Type | Pneumatic Double Acting / Single Acting |
| Air Supply Pressure | 0.4–0.7 MPa |
| Control Mode | ON/OFF Control / Modulating Control |
| Control Accessories | Solenoid Valve, Positioner, Limit Switch, Air Filter Regulator |
| Flange Standard | ANSI / DIN / JIS / GB Standard |
| Sealing Performance | Bubble Tight Shut-Off |
| Leakage Standard | API 598 / EN 12266 |
| Installation Position | Horizontal or Vertical Installation |
| Operation Torque | Customized According to Valve Size |
| OEM Capability | Customized Design, Materials, Actuators, Logo, Packaging |
| Certification | ISO, CE, Pressure Test Report, Material Certificate |
Industry Applications
The Fully Lined PTFE Pneumatic Butterfly Valve is widely used in industries requiring corrosion resistance, automation, and reliable fluid control:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
