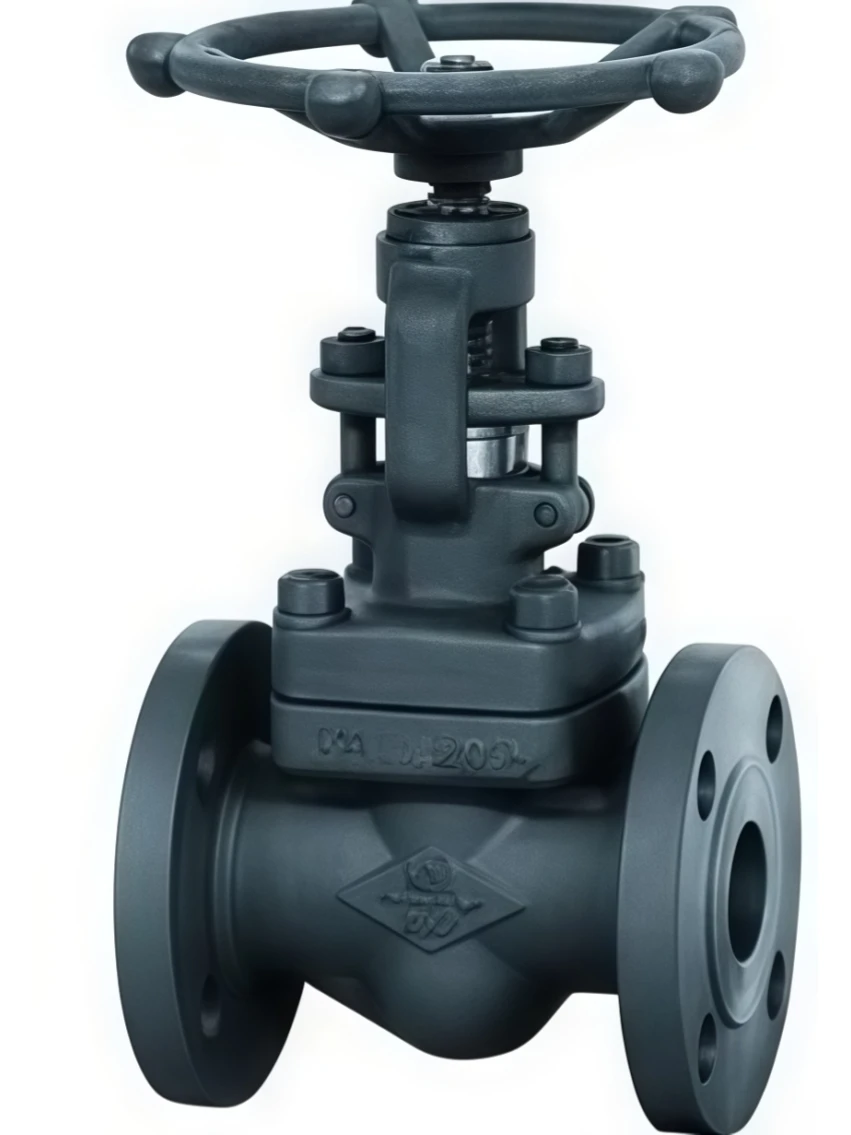

Full bore gate valve
The Full Bore Gate Valve is a high-performance industrial valve designed for applications requiring unrestricted flow, minimal pressure loss, and reliable shut-off performance. Featuring a full port design, the valve provides a straight-through flow passage equal to the pipeline diameter, ensuring smooth media transportation without flow obstruction.
Manufactured with high-quality materials and precision machining technology, the full bore gate valve delivers excellent sealing performance, durability, and resistance to high pressure and harsh operating conditions. It is widely used in oil & gas pipelines, water systems, chemical processing, power generation, and other industrial applications requiring dependable isolation control.
Our company provides comprehensive OEM and customization services, including valve size, material selection, pressure class, connection standards, sealing solutions, operation methods, and special design requirements. With a complete valve industry certification system and strict quality control process, our products meet international standards for safety, reliability, and long-term operation.
Full bore gate valve
We provide professional OEM/ODM manufacturing solutions to satisfy various industrial requirements:
Customized options for:
Operation options:
Complete valve industry certification system:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Full Bore Gate Valve |
| Valve Type | Gate Valve |
| Design Type | Full Port / Full Bore Design |
| Application Medium | Water, Oil, Gas, Steam, Chemical Fluids |
| Nominal Size | DN15 – DN1200 (Customized Available) |
| Pressure Rating | PN10 / PN16 / PN25 / PN40 / Class 150-1500 |
| Body Material | Carbon Steel / Stainless Steel / Cast Steel / Ductile Iron |
| Gate Material | Stainless Steel / Carbon Steel / Alloy Material |
| Stem Material | Stainless Steel |
| Seat Material | Metal Seat / PTFE / EPDM / Customized |
| Connection Type | Flanged / Threaded / Welded End |
| Bore Type | Full Bore (Equal to Pipeline Diameter) |
| Operation Method | Handwheel / Gear / Pneumatic / Electric / Hydraulic |
| Working Temperature | -29°C to +450°C (According to Material Selection) |
| Working Pressure | Up to 25MPa (Customized Available) |
| Sealing Direction | Bidirectional Sealing |
| Flow Characteristic | Low Pressure Drop, Smooth Flow |
| Leakage Standard | API 598 / ISO 5208 / EN 12266 |
| Design Standard | API 600 / API 6D / ASME B16.34 |
| Flange Standard | ANSI B16.5 / B16.47 / DIN / JIS / Customized |
| Surface Treatment | Epoxy Coating / Anti-corrosion Coating / Customized |
| Testing Standard | Shell Test, Seat Test, Functional Test |
| OEM Service | Design, Logo, Packaging, Material & Structure Customization |
| Certifications | ISO / CE / API / International Valve Industry Standards |
Industry Applications
The Full Bore Gate Valve is widely used in industries requiring reliable pipeline isolation and high flow efficiency:
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
