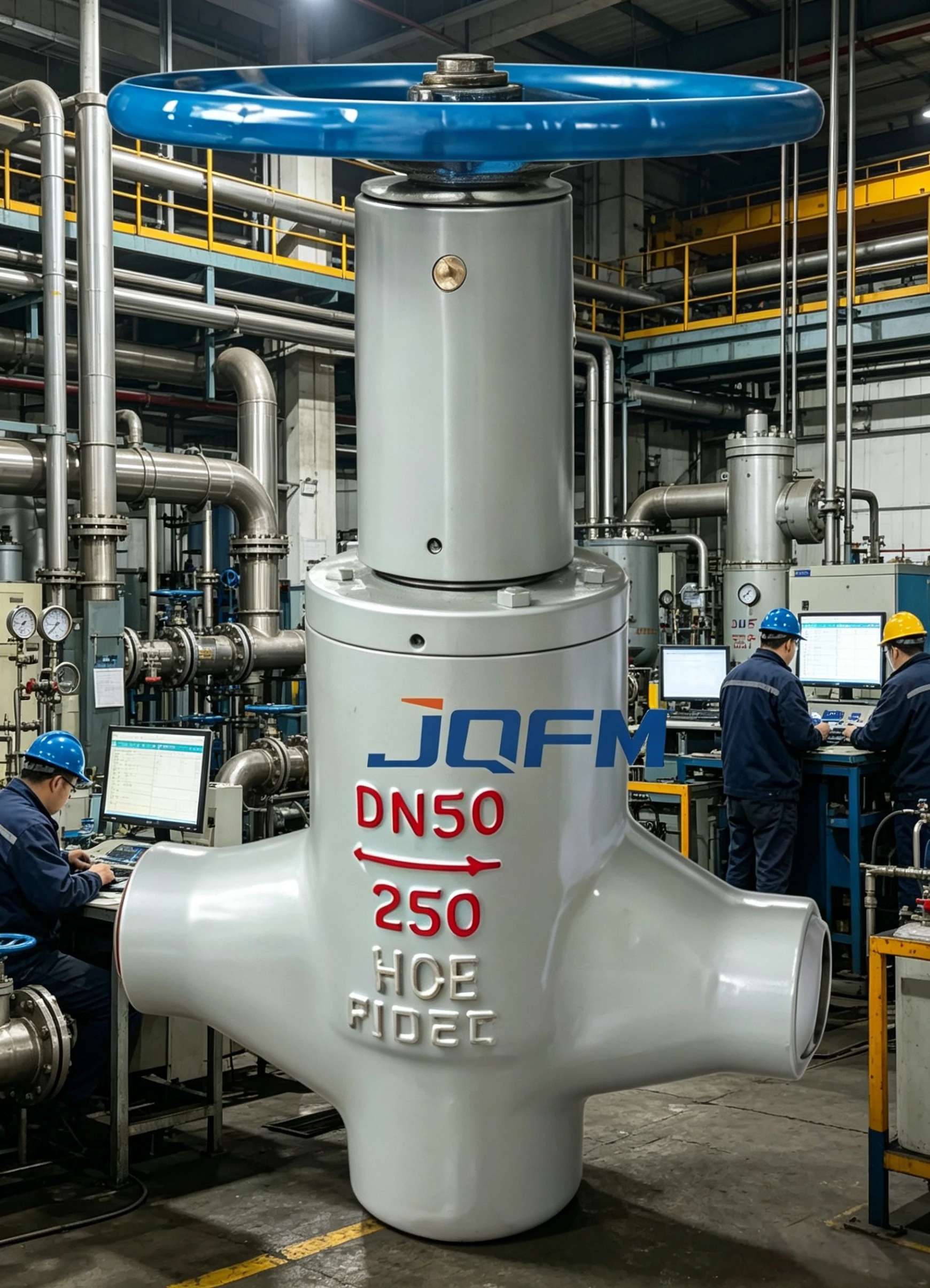

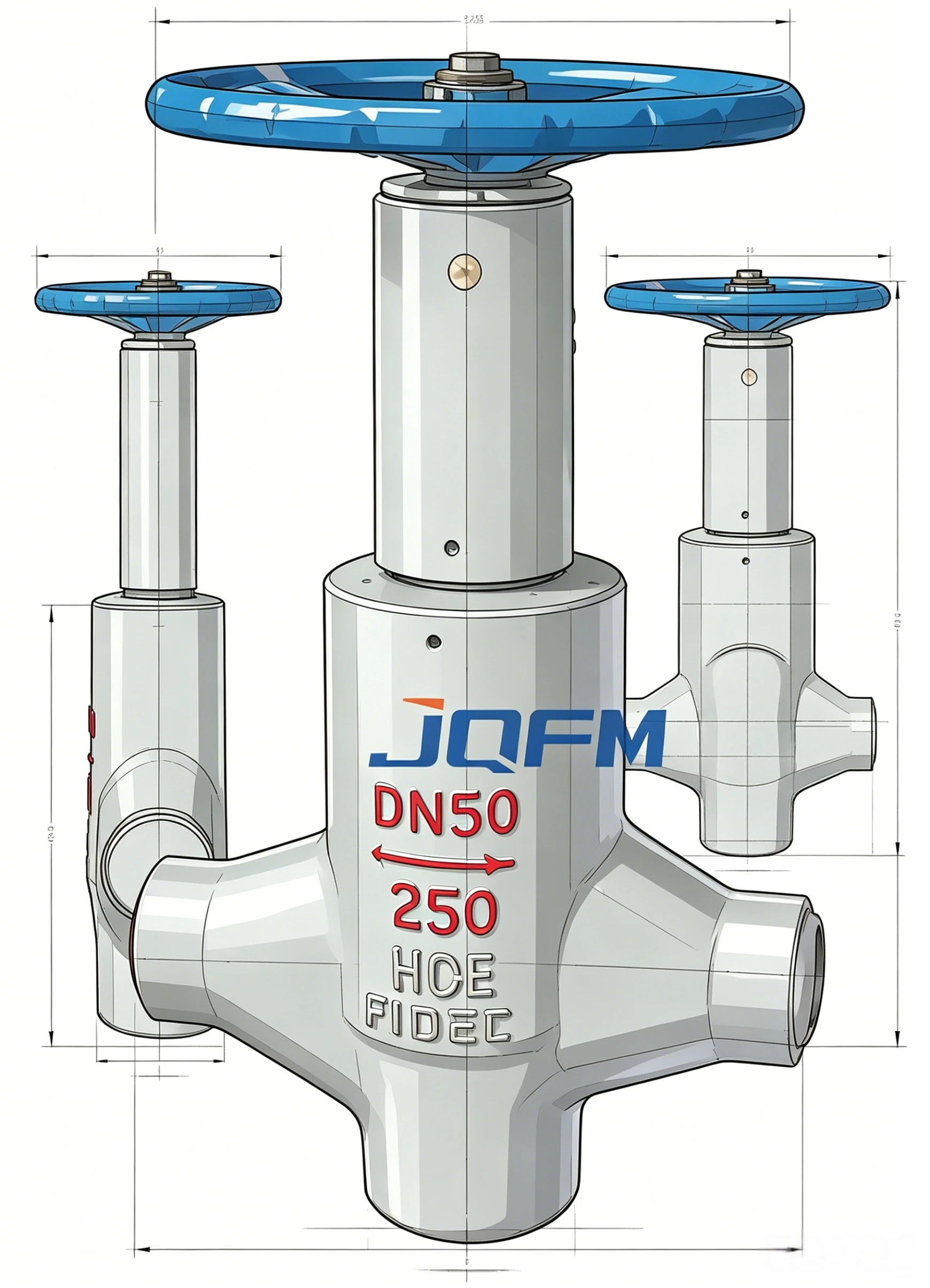

Balanced multi-purpose globe valve
The Balanced Multi-Purpose Globe Valve is designed for precise flow control and pressure regulation in oil, gas, chemical, water, and steam pipelines. Its balanced trim minimizes stem thrust, ensuring smooth operation under high pressure. Corrosion-resistant construction and robust materials guarantee long-term reliability, tight sealing, and versatile industrial application.
Balanced multi-purpose globe valve
The Balanced Multi-Purpose Globe Valve combines a balanced trim design with robust body construction for accurate flow regulation and reliable isolation in diverse pipeline systems. Its design reduces stem thrust, lowering operating torque while providing bi-directional tight shut-off. Suitable for high-pressure, high-temperature, and corrosive applications, it can be integrated with manual, electric, pneumatic, or hydraulic actuators.
Balanced multi-purpose globe valve
| Parameter | Specification |
|---|---|
| Product Name | Balanced Multi-Purpose Globe Valve |
| Nominal Size | DN15 – DN1200 (0.5" – 48") |
| Pressure Rating | PN16 – PN420 |
| ANSI Class | Class 150 – Class 2500 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel |
| Trim Material | Stainless Steel, Alloy Steel, Hardened Steel |
| Seat Material | Metal Seat / Soft Seat |
| Connection Type | Flanged, Butt Welded, Socket Weld |
| Operation | Manual, Electric, Pneumatic, Hydraulic |
| Temperature Range | -46°C to +550°C |
| Sealing Type | Bi-directional Sealing |
| Leakage Standard | API 598 / ISO 5208 Class A |
| Design Standard | API 602 / API 603, ASME B16.34 |
| Applicable Media | Oil, Gas, Water, Steam, Chemicals |
Balanced multi-purpose globe valve
Flow regulation and isolation in transmission, gathering, and refinery pipelines.
Precise throttling and multi-purpose control in process pipelines and chemical utilities.
Steam, feedwater, and cooling water systems requiring tight shut-off and flow control.
Municipal and industrial water distribution networks requiring precise regulation.
Applied in water injection, EOR, and high-pressure wellhead lines.
Mining, metallurgy, food & beverage, pharmaceutical, and chemical plants requiring versatile flow control.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
