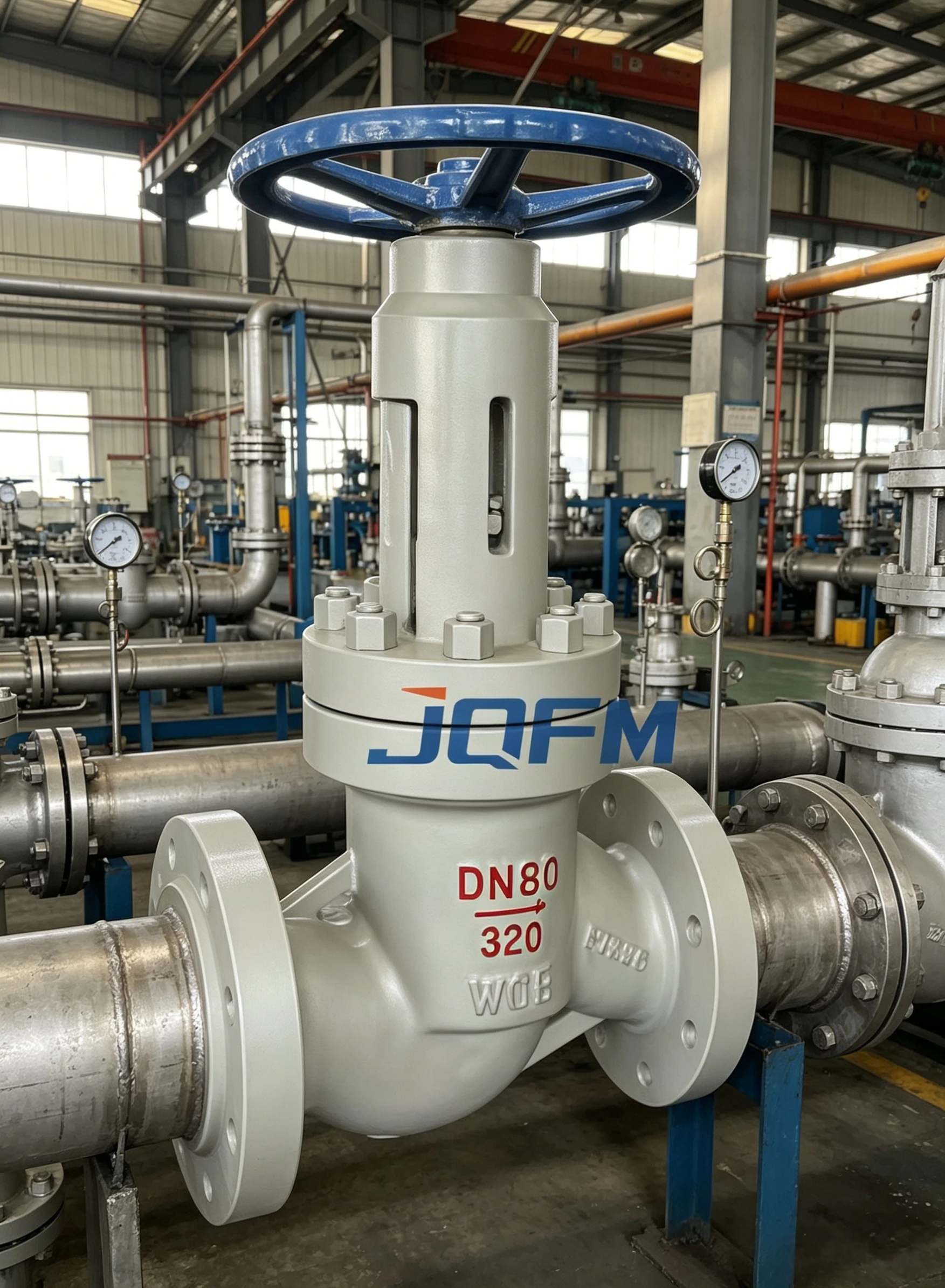

Balanced throttle globe valve
The Balanced Throttle Globe Valve is engineered for high-pressure, high-temperature, and corrosive pipelines requiring accurate flow regulation. Its balanced trim minimizes stem thrust and ensures smooth operation. Manufactured from durable corrosion-resistant materials, it delivers tight shut-off, extended service life, and stable performance in oil, gas, chemical, steam, and water systems.
Balanced throttle globe valve
The Balanced Throttle Globe Valve combines a precision throttle mechanism with a balanced trim design, significantly reducing stem thrust for smooth operation under high-pressure conditions. Its robust body construction ensures structural integrity and long service life, while the valve provides accurate flow adjustment and reliable bi-directional sealing.
Available in carbon steel, stainless steel, alloy steel, and duplex steel, it can be manually operated or integrated with electric, pneumatic, or hydraulic actuators for automation.

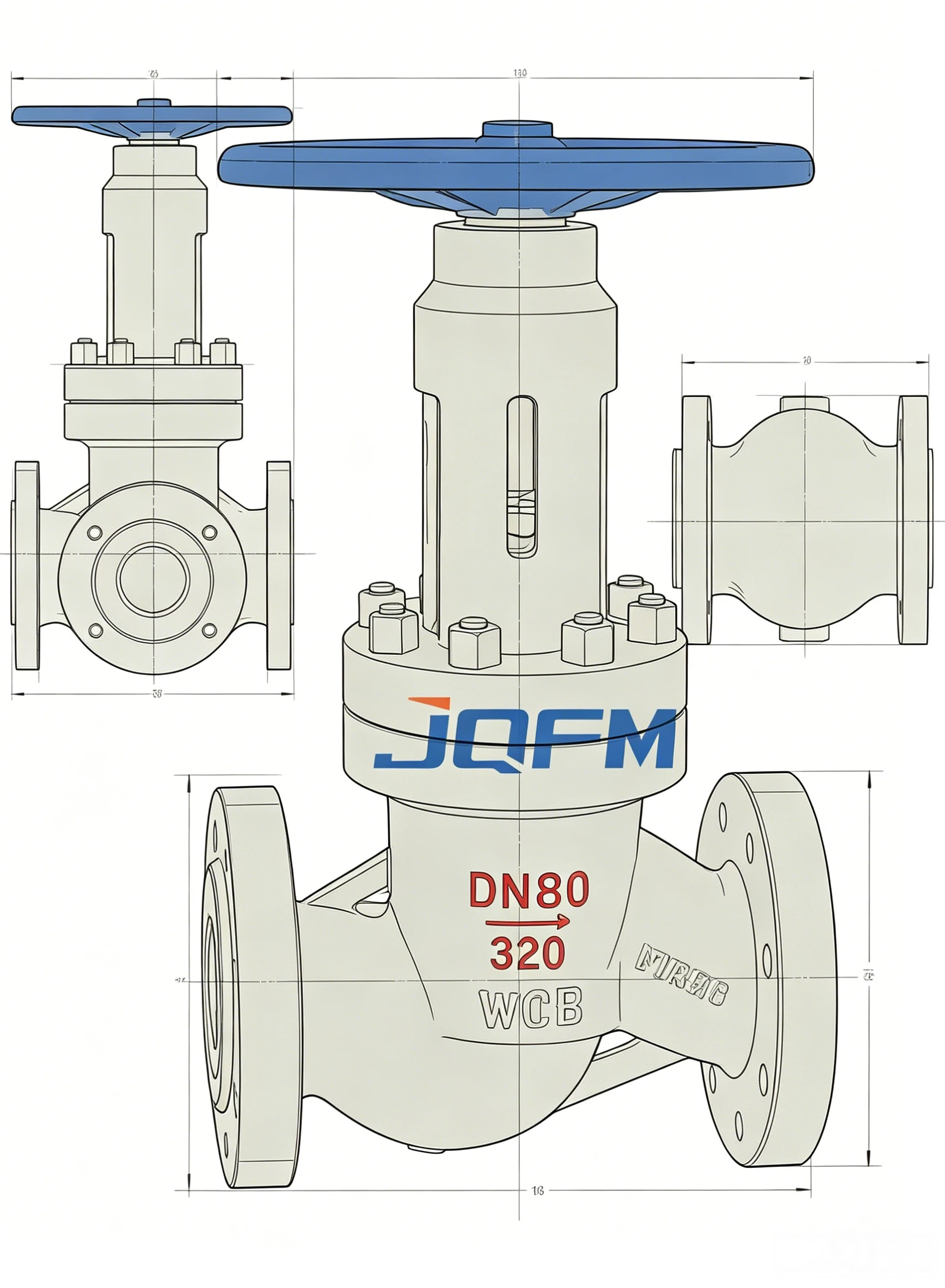

Balanced throttle globe valve
| Parameter | Specification |
|---|---|
| Product Name | Balanced Throttle Globe Valve |
| Nominal Size | DN15 – DN1200 (0.5" – 48") |
| Pressure Rating | PN16 – PN420 |
| ANSI Class | Class 150 – Class 2500 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel |
| Trim Material | Stainless Steel, Alloy Steel, Hardened Steel |
| Seat Material | Metal Seat / Soft Seat |
| Connection Type | Flanged, Butt Welded, Socket Weld |
| Operation | Manual, Electric, Pneumatic, Hydraulic |
| Temperature Range | -46°C to +550°C |
| Sealing Type | Bi-directional Sealing |
| Leakage Standard | API 598 / ISO 5208 Class A |
| Design Standard | API 602 / API 603, ASME B16.34 |
| Applicable Media | Oil, Gas, Water, Steam, Chemicals |
Balanced throttle globe valve
Flow control in transmission lines, gathering systems, and refinery pipelines.
Precise throttling in process pipelines, chemical reactors, and industrial utilities.
Steam, cooling water, and high-pressure feedwater systems requiring stable flow control.
Industrial and municipal water networks requiring accurate flow regulation.
Used in water injection, EOR, and high-pressure wellhead pipelines.
Mining, metallurgy, chemical, food & beverage, and pharmaceutical pipeline applications.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
