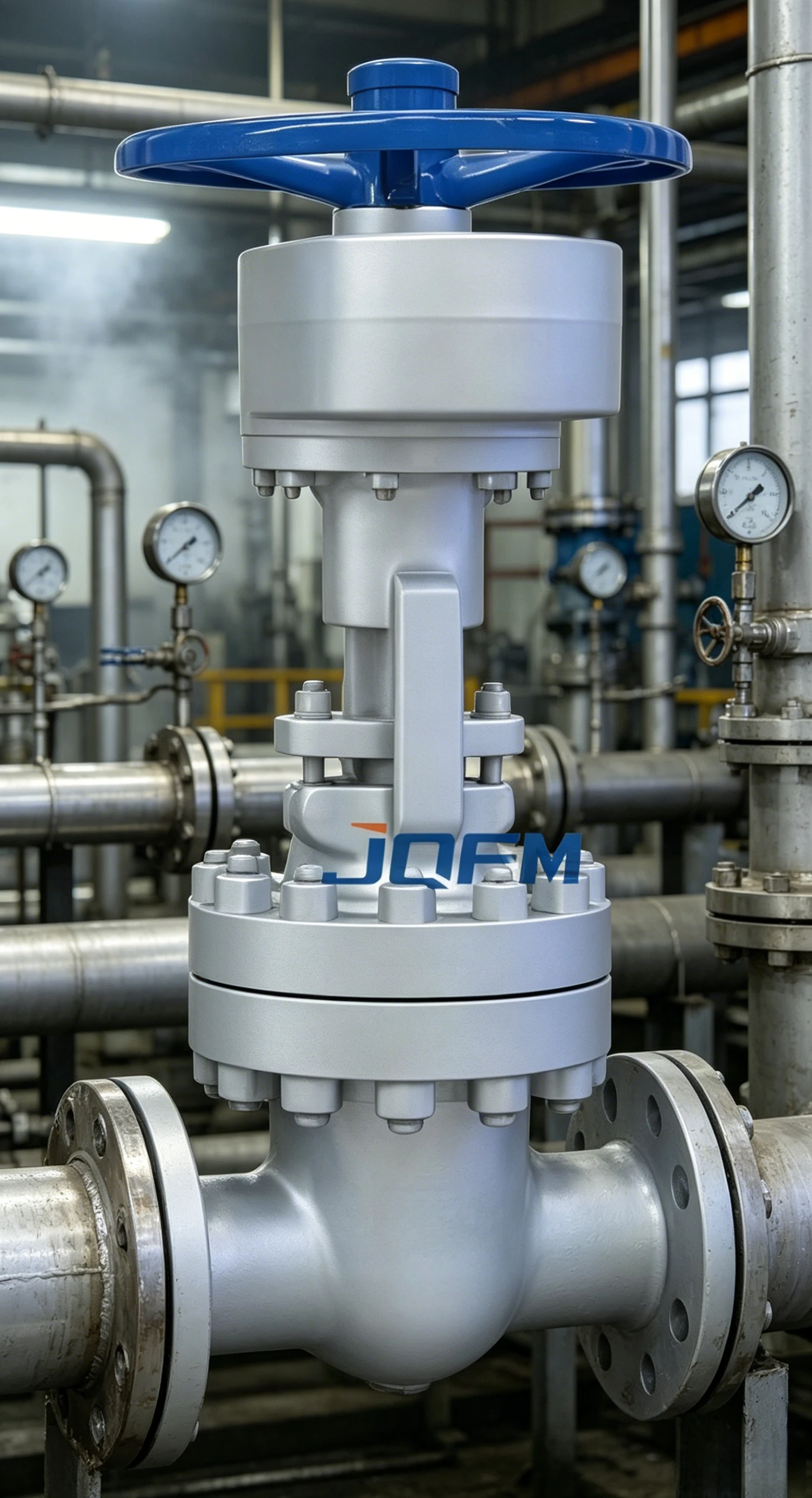

Bevel gear American standard gate valve
The bevel gear American standard gate valve features a precision gear operator that reduces operating torque and improves control efficiency. Manufactured according to API and ASME standards, it provides excellent sealing performance, low flow resistance, and dependable operation in high-pressure and large-diameter pipeline systems handling water, steam, oil, gas, and chemicals.
Bevel gear American standard gate valve
The Bevel Gear American Standard Gate Valve is designed for applications requiring reliable flow isolation and convenient operation in large-size or high-pressure pipelines. Equipped with a durable bevel gear operator, the valve significantly reduces manual operating effort while ensuring smooth opening and closing.
Manufactured in compliance with API 600, API 6D, ASME B16.34, and other international standards, these valves feature a full-port design that minimizes pressure loss and maximizes flow efficiency.
Available in carbon steel, stainless steel, alloy steel, duplex stainless steel, and other materials, bevel gear gate valves are widely used in oil & gas, petrochemical, power generation, water treatment, and industrial process systems.
As an experienced industrial valve manufacturer, we provide complete OEM and ODM solutions.
All valves are manufactured and tested according to international standards.
Bevel gear American standard gate valve
| Parameter | Specification |
|---|---|
| Product Name | Bevel Gear American Standard Gate Valve |
| Valve Type | API Standard Gate Valve |
| Operation | Bevel Gear Operated |
| Size Range | NPS 2"–48" (DN50–DN1200) |
| Pressure Class | Class 150, 300, 600, 900, 1500, 2500 |
| Design Standard | API 600, API 6D, ASME B16.34 |
| Face-to-Face | ASME B16.10 |
| Flange Standard | ASME B16.5, ASME B16.47 |
| Testing Standard | API 598 |
| Body Material | WCB, WC6, WC9, CF8, CF8M, Duplex |
| Disc Material | Stainless Steel / Alloy Steel |
| Stem Material | F6a, SS304, SS316 |
| Bonnet Type | Bolted Bonnet / Pressure Seal Bonnet |
| Seat Type | Metal Seated |
| Connection Type | Flanged, Butt Weld, RTJ |
| Temperature Range | -29°C to +593°C |
| Applicable Media | Water, Steam, Oil, Gas, Chemicals |
| Leakage Standard | API 598 |
| Fire Safe Design | Available |
| Anti-Static Design | Available |
Bevel gear American standard gate valve
Crude oil transportation, natural gas pipelines, refinery processing units, offshore platforms.
Process isolation systems, hydrocarbon handling, chemical transfer pipelines.
Thermal power plants, steam systems, boiler feedwater lines, cooling systems.
Municipal water supply networks, wastewater treatment plants, desalination facilities.
Industrial slurry systems, mineral processing plants, water management pipelines.
Shipbuilding projects, offshore drilling platforms, seawater handling systems.
High-temperature process pipelines, industrial utility systems, cooling water networks.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
