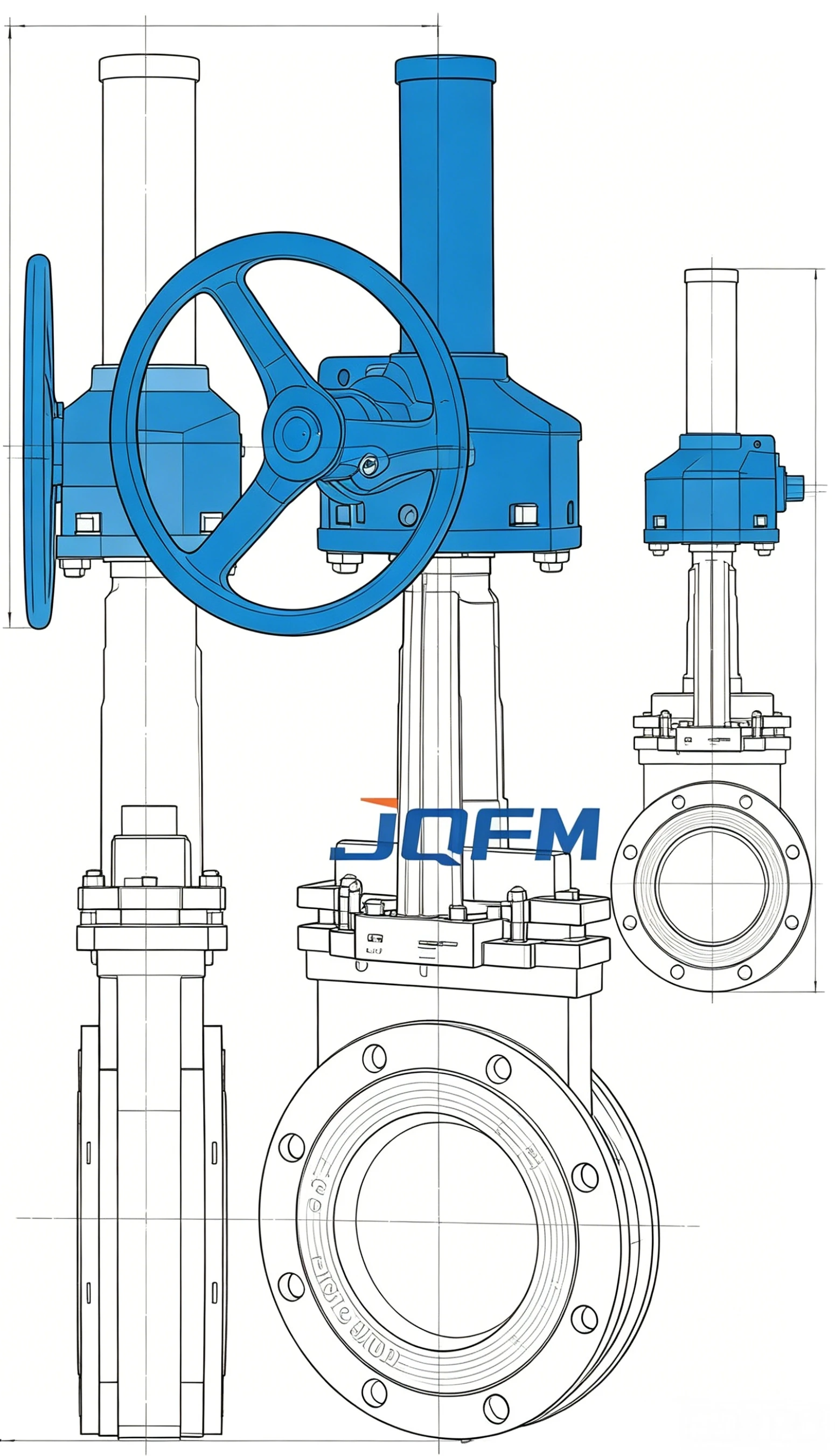

Bevel gear drive knife gate valve
The Bevel Gear Drive Knife Gate Valve is engineered for industrial pipelines transporting slurry, pulp, and particle-laden fluids. Its bevel gear mechanism allows effortless manual operation of large valves. Constructed from corrosion- and wear-resistant materials, the valve ensures tight sealing, long service life, and reliable performance in mining, chemical, and wastewater systems.

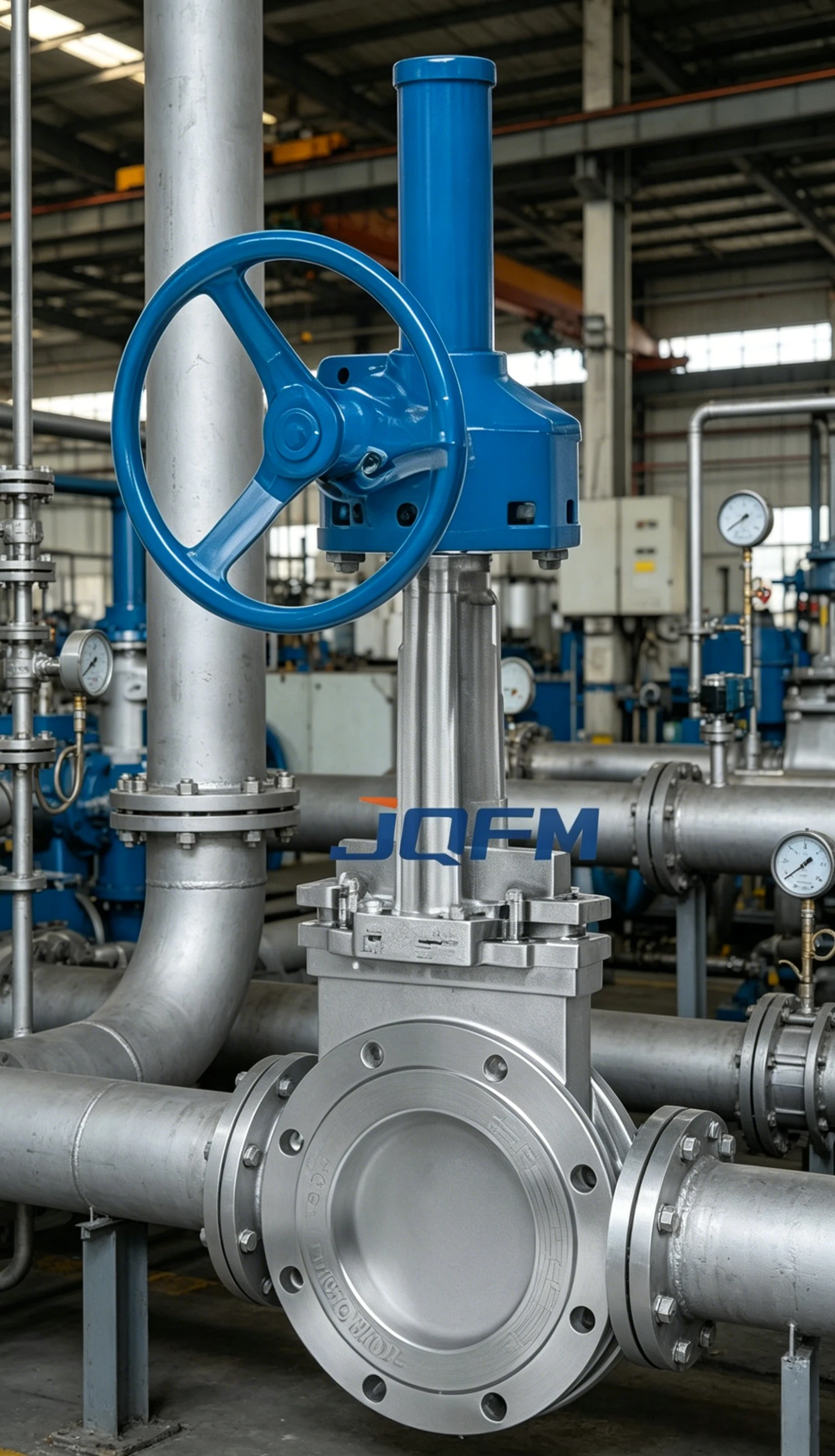

Bevel gear drive knife gate valve
Bevel Gear Drive Knife Gate Valves combine a sharp knife-edge gate with a bevel gear actuator, enabling smooth operation of large-diameter valves with minimal manual effort. The valve is suitable for abrasive, viscous, and fibrous media, providing reliable on/off control in heavy-duty industrial pipelines.
Available in carbon steel, stainless steel, and alloy steel, the valves support flanged, wafer, and lug connections. Optional automation includes pneumatic or electric actuators. OEM customization allows special materials, gate and seat configurations, and gear ratios to meet demanding process requirements.
Bevel gear drive knife gate valve
| Parameter | Specification |
|---|---|
| Product Name | Bevel Gear Drive Knife Gate Valve |
| Nominal Size | DN100 – DN1200 (4" – 48") |
| Pressure Rating | PN10 – PN40 |
| ANSI Class | Class 150 – Class 300 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Ductile Iron |
| Gate Material | Stainless Steel, Hardfaced Alloy, Wear-Resistant Steel |
| Seat Material | EPDM, NBR, PTFE, Metal Seat |
| Connection Type | Flanged, Wafer, Lug |
| Operation | Bevel Gear Manual, Pneumatic, Electric |
| Temperature Range | -20°C to +250°C |
| Sealing Type | Bi-directional / Uni-directional |
| Leakage Standard | API 598 / ISO 5208 Class A |
| Design Standard | API 609, ASME B16.34 |
| Applicable Media | Slurry, Pulp, Wastewater, Chemicals, Abrasive Fluids |
Bevel gear drive knife gate valve
Controls abrasive slurries, tailings, and pulp pipelines with large-diameter valves.
Regulates sludge, wastewater, and chemical dosing pipelines in heavy-duty installations.
Handles viscous and corrosive slurries in process pipelines.
Regulates pulp stock, effluent, and process slurry pipelines.
Controls dense, semi-solid industrial liquids in manufacturing plants.
Used in ash handling, cooling water, and condensate slurry systems.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
