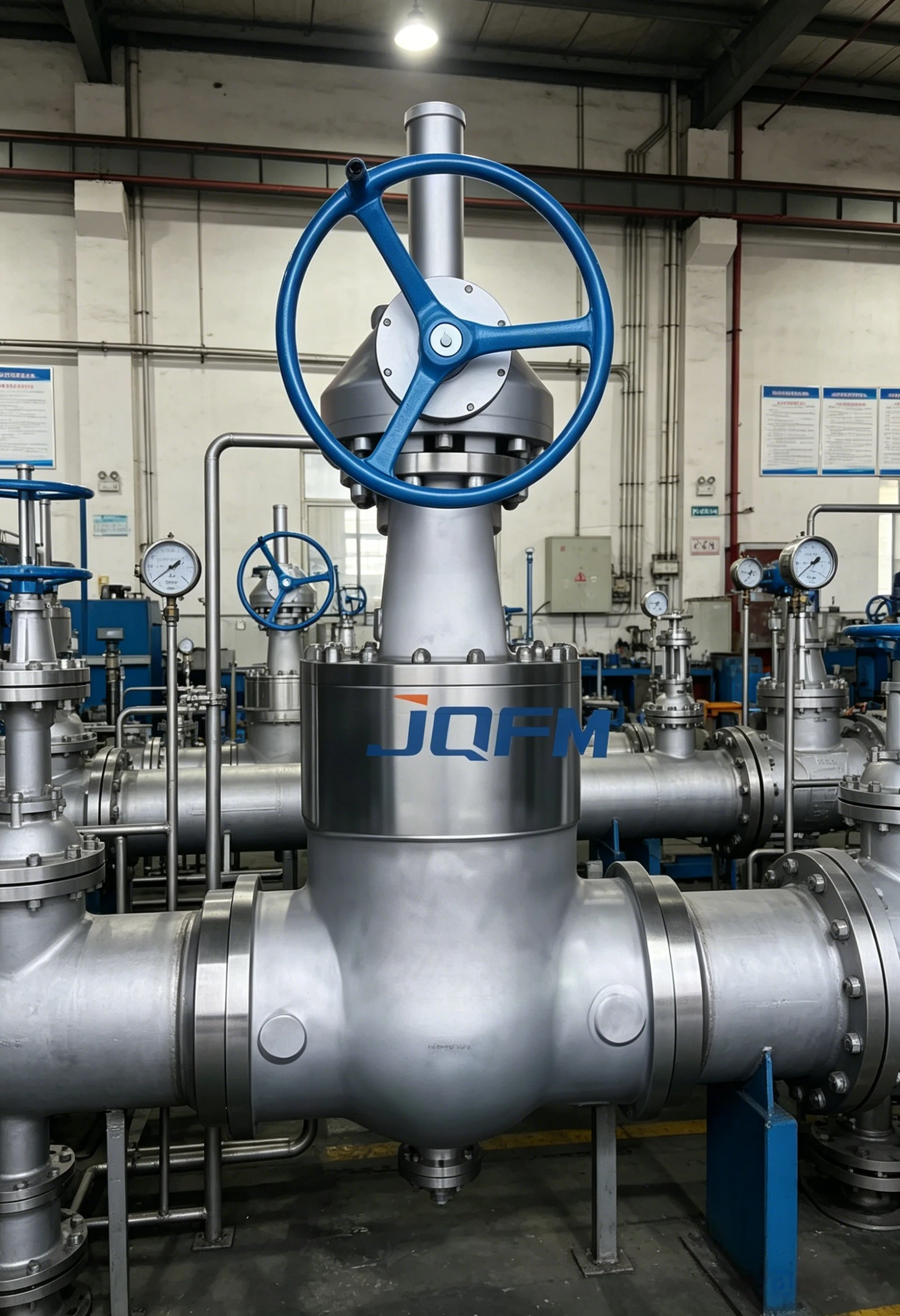

Bevel gear welding gate valve
The Bevel Gear Welding Gate Valve is designed for critical industrial pipelines requiring high torque operation and minimal leakage. Equipped with a robust bevel gear mechanism and fully welded ends, it ensures safe, reliable, and long-lasting performance under high-pressure, high-temperature, and abrasive fluid conditions.

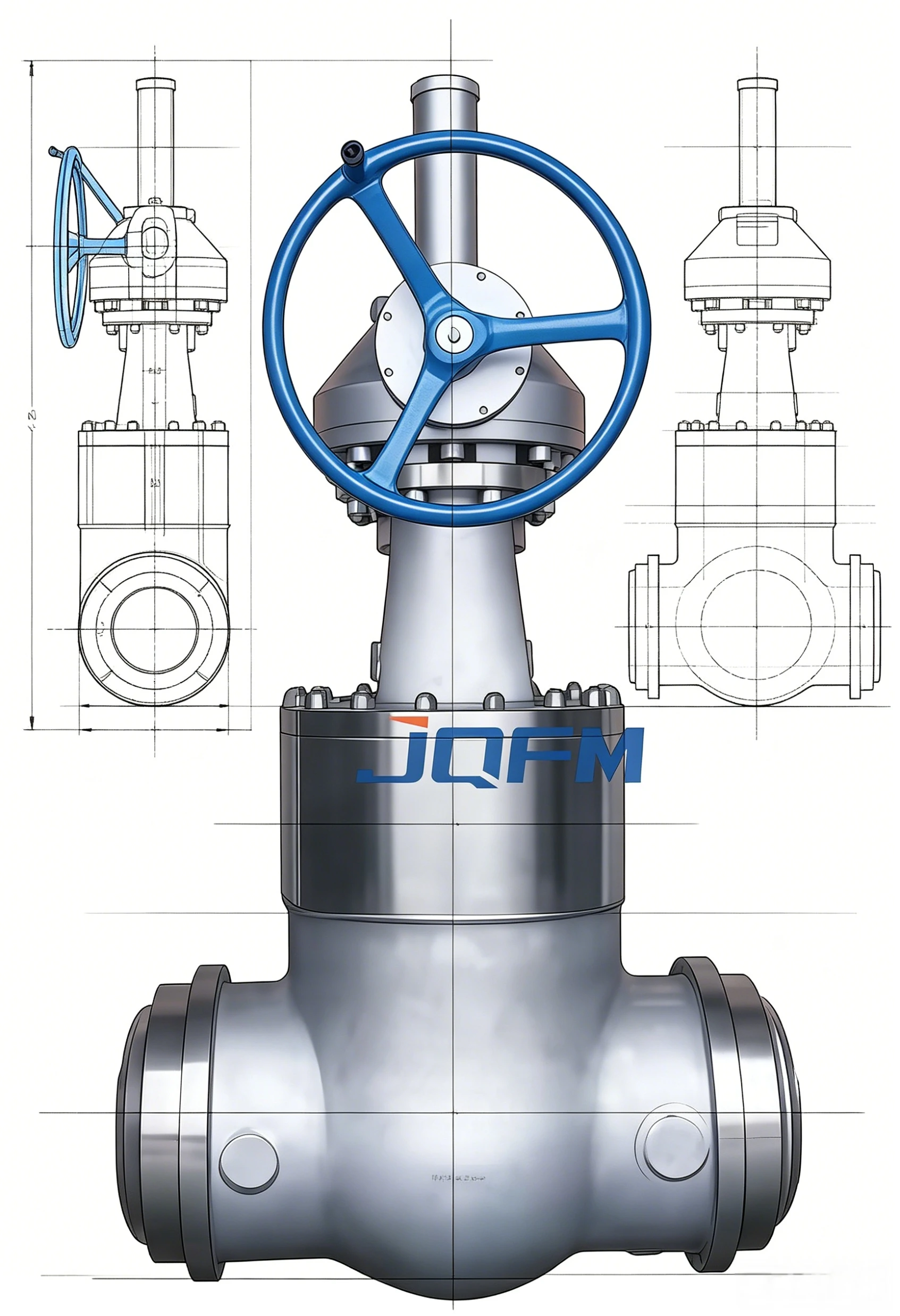

Bevel gear welding gate valve
Bevel Gear Welding Gate Valves are engineered for high-pressure, high-temperature, and heavy-duty industrial pipelines. The bevel gear operator provides mechanical advantage, enabling smooth operation for large-diameter valves and high-torque applications. Fully welded body construction eliminates flange leakage, enhancing structural integrity and safety.
Constructed from forged or cast alloy steel with hard-faced sealing surfaces, these valves withstand thermal cycling, erosion, and corrosive fluids, making them ideal for power generation, petrochemical, oil & gas, and industrial steam systems.
We offer full OEM and ODM services for Bevel Gear Welding Gate Valves, customized to project or system requirements.
Bevel Gear Welding Gate Valves are manufactured under strict quality systems and can be supplied with:
Bevel gear welding gate valve
| Parameter | Specification |
|---|---|
| Product Name | Bevel Gear Welding Gate Valve |
| Design Standard | API 600, ASME B16.34, GB/T |
| Size Range | DN50 – DN1200 (2" – 48") |
| Pressure Rating | PN16 – PN420 / Class 150 – 2500 |
| Working Temperature | -29°C to 650°C |
| Body Material | WC6, WC9, F22, C12A, Stainless Steel |
| Disc Type | Flexible Wedge / Solid Wedge |
| Connection Type | Butt Welded Ends |
| Bonnet Type | Pressure Seal Bonnet |
| Operation | Bevel Gear, Manual, Electric, Pneumatic |
| Stem Type | Rising Stem |
| Sealing Surface | Stellite Alloy Hard-Faced |
| Applicable Media | Steam, Water, Oil, Thermal Oil, Gas |
| Leakage Standard | API 598 |
| Testing Standard | API 598, ISO 5208 |
| Service Life | 20+ Years |
Bevel gear welding gate valve
Main steam pipelines, boiler outlets, and turbine auxiliary systems requiring high torque operation.
High-integrity isolation in high-pressure steam and cooling water pipelines.
High-pressure process units, slurry lines, and utility steam pipelines.
Pipeline isolation, high-pressure flow control, and heavy-duty applications.
Erosion- and heat-resistant operation in slag, molten metal, and steam systems.
District heating and large-scale steam distribution systems.
Critical applications demanding precise, reliable, and low-maintenance valve operation.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
