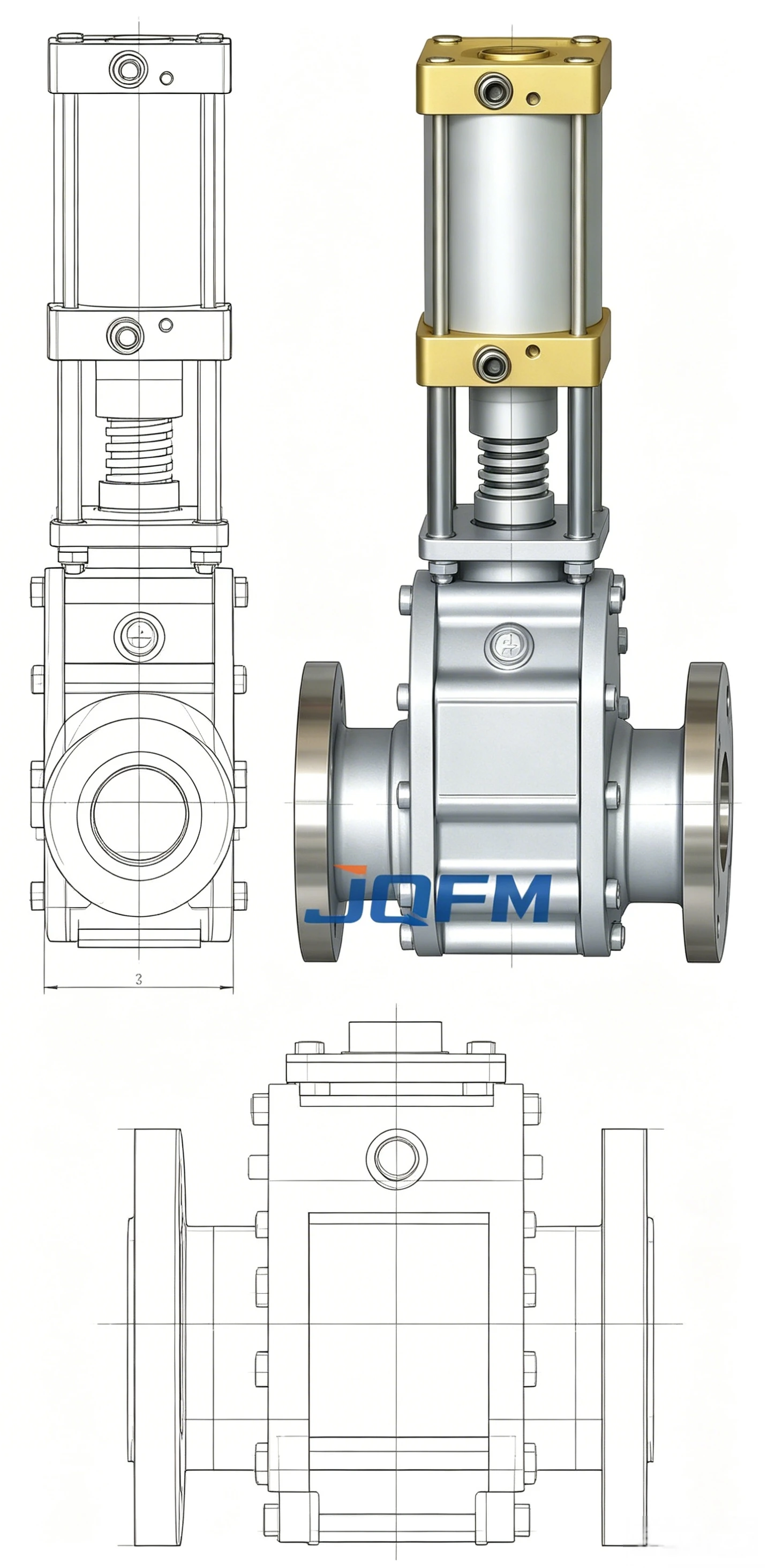

Ceramic discharge valve
The Ceramic Discharge Valve is specially designed for severe service applications involving abrasive powders, ash, slurry, and particulate media. High-performance ceramic lining protects critical flow components from erosion and wear. The valve ensures reliable shut-off, low maintenance requirements, and long operational life in power plants, mining, metallurgy, and cement industries.
Ceramic discharge valve
The Ceramic Discharge Valve is engineered for handling highly abrasive and erosive media under demanding industrial conditions. The valve utilizes advanced engineering ceramics on the seat, disc, and flow passage surfaces, significantly improving wear resistance compared to conventional metal valves.
Its robust design effectively controls fly ash, coal powder, mineral slurry, cement powder, and other solid-laden media while maintaining excellent sealing performance. The valve is available with manual, pneumatic, electric, or hydraulic actuators to support modern industrial automation systems.
Our Ceramic Discharge Valves are manufactured according to international quality and industrial standards.
Ceramic discharge valve
| Parameter | Specification |
|---|---|
| Product Name | Ceramic Discharge Valve |
| Nominal Size | DN50 – DN1000 (2" – 40") |
| Pressure Rating | PN10 – PN100 |
| ANSI Class | Class 150 – Class 600 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel |
| Ceramic Material | Alumina, Zirconia, Silicon Carbide |
| Seat Material | Ceramic / Metal Composite |
| Connection Type | Flanged, Welded |
| Operation | Manual, Pneumatic, Electric, Hydraulic |
| Temperature Range | -20°C to +450°C |
| Sealing Type | Soft Seal / Metal Seal |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | ASME B16.34, GB/T, DIN |
| Applicable Media | Fly Ash, Coal Powder, Slurry, Cement, Granular Materials |
Ceramic discharge valve
Used in fly ash conveying systems, coal powder handling, boiler ash discharge, and desulfurization equipment.
Suitable for abrasive ore slurry transportation, tailings discharge, and mineral processing systems.
Applied in blast furnace dust collection, slag discharge, and powder material transportation.
Controls cement powder, clinker dust, and pneumatic conveying systems.
Handles abrasive powders, catalysts, and corrosive granular media.
Ideal for pneumatic conveying, silo discharge, and powder transportation pipelines.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
