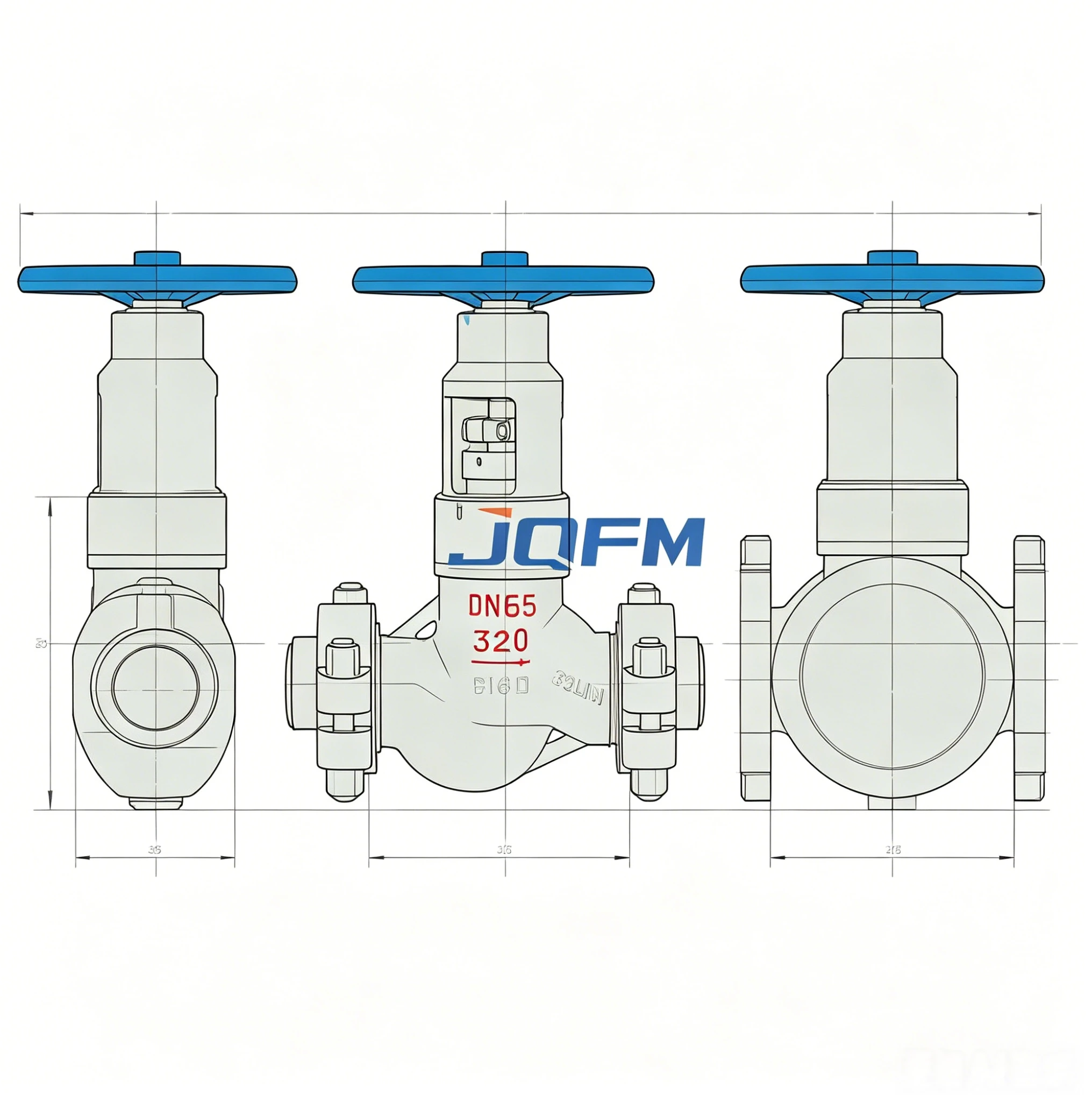

Clamp type throttle globe valve
The Clamp Type Throttle Globe Valve is engineered for accurate flow regulation and pressure control in high-pressure pipelines. Its clamp-style body allows rapid maintenance without compromising strength. The throttle design provides fine flow adjustment, while corrosion-resistant materials ensure durability. Suitable for oil, gas, water, steam, and chemical media in demanding industrial environments.

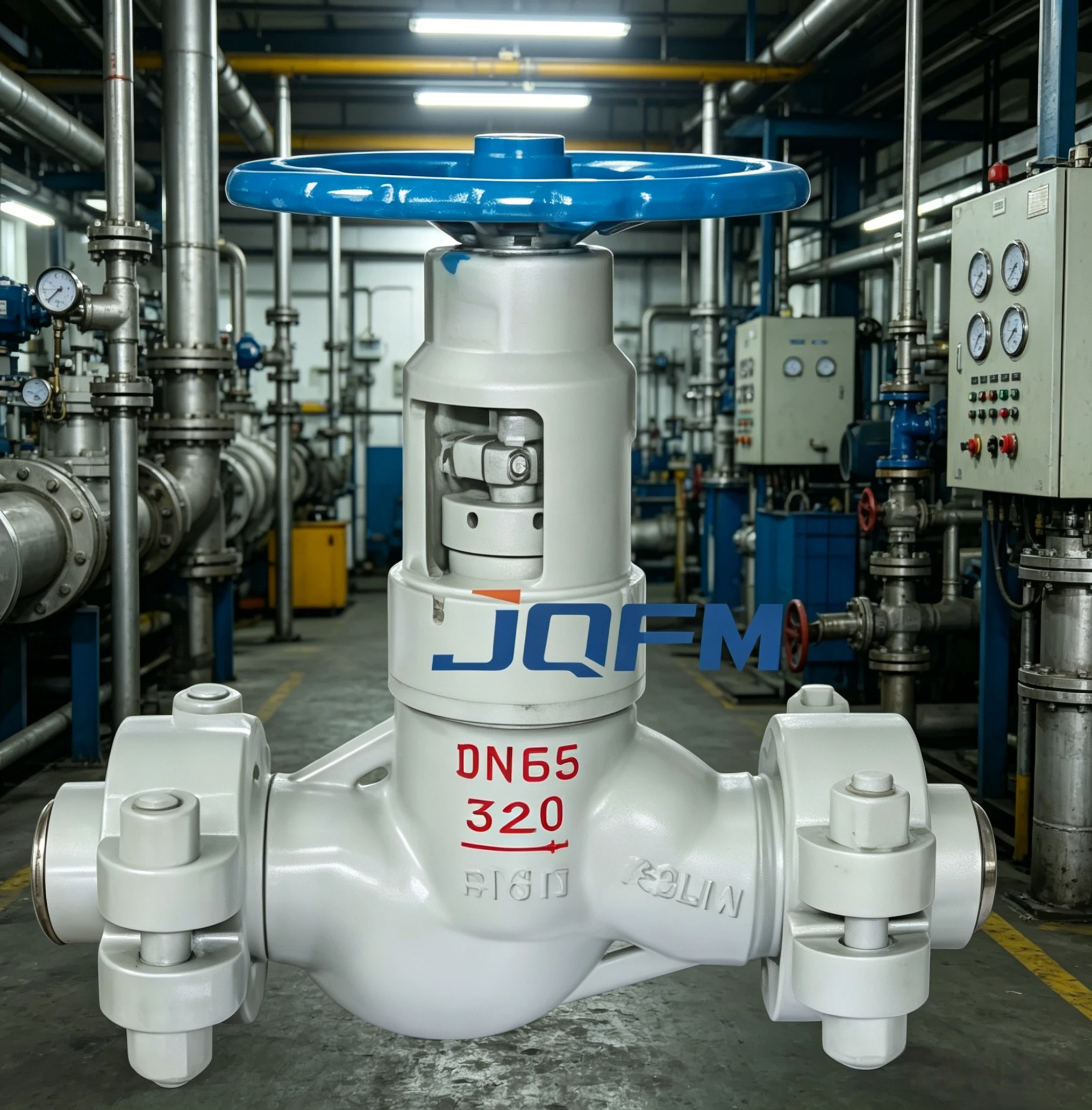

Clamp type throttle globe valve
The Clamp Type Throttle Globe Valve combines a robust clamp-style body with a precision throttle globe mechanism, enabling fine control of flow and pressure in high-pressure pipelines. Its design allows quick disassembly and maintenance while maintaining structural integrity, making it ideal for oilfield, chemical, and industrial process applications.
Constructed from carbon steel, stainless steel, or alloy steel, the valve offers excellent corrosion resistance, high-pressure tolerance, and long service life. Manual, electric, pneumatic, or hydraulic actuators can be integrated for automated operation.
Clamp type throttle globe valve
| Parameter | Specification |
|---|---|
| Product Name | Clamp Type Throttle Globe Valve |
| Nominal Size | DN15 – DN1200 (0.5" – 48") |
| Pressure Rating | PN16 – PN420 |
| ANSI Class | Class 150 – Class 2500 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Forged Steel |
| Trim Material | Stainless Steel, Alloy Steel, Hardened Steel |
| Seat Material | Metal Seat / Soft Seat |
| Connection Type | Clamp, Flanged, Butt Welded |
| Operation | Manual, Electric, Pneumatic, Hydraulic |
| Temperature Range | -46°C to +550°C |
| Sealing Type | Bi-directional Sealing |
| Leakage Standard | API 598 / ISO 5208 Class A |
| Design Standard | API 602 / API 603, ASME B16.34 |
| Applicable Media | Oil, Gas, Water, Steam, Chemicals |
Clamp type throttle globe valve
Flow control in high-pressure transmission, injection, and gathering lines.
Accurate flow regulation in chemical process lines and industrial utilities.
Used in steam, cooling water, and boiler feedwater systems for precise control.
Industrial and municipal water supply networks requiring high-precision flow regulation.
Applied in water injection, enhanced oil recovery (EOR), and high-pressure wellhead lines.
Mining, metallurgy, food & beverage, and chemical pipelines needing reliable throttling and shut-off.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
