Electric flat gate valve with diversion hole
The Electric Flat Gate Valve with Diversion Hole combines intelligent electric actuation with a full-bore flat gate design. The diversion hole equalizes upstream and downstream pressure, reducing operating torque and enhancing sealing performance. Designed for oilfield pipelines, natural gas transmission, petrochemical processing, and industrial automation systems requiring safe and efficient flow isolation.
Electric flat gate valve with diversion hole

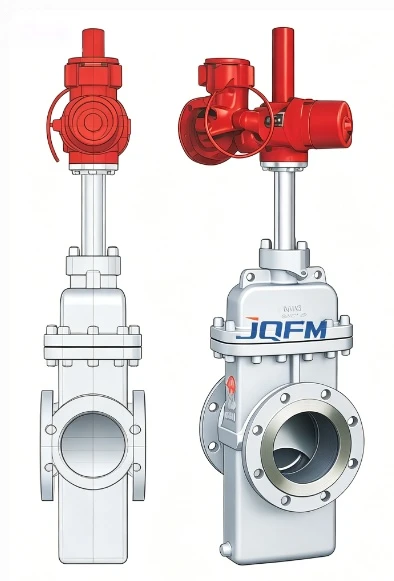

The Electric Flat Gate Valve with Diversion Hole is a high-performance isolation valve engineered for automated pipeline control. The valve incorporates a precision-machined diversion hole within the gate, allowing pressure balancing during operation and minimizing opening and closing torque.
Equipped with an electric actuator, the valve enables remote monitoring, automatic operation, and integration with industrial control systems. Its full-port design ensures unrestricted flow while maintaining excellent sealing performance under high-pressure conditions.
As a professional industrial valve manufacturer, we provide comprehensive OEM and ODM solutions tailored to project requirements.
All valves are manufactured under strict international quality standards.
Electric flat gate valve with diversion hole
| Parameter | Specification |
|---|---|
| Product Name | Electric Flat Gate Valve with Diversion Hole |
| Nominal Size | DN50 – DN1200 (2" – 48") |
| Pressure Rating | PN16 – PN420 |
| ANSI Class | Class 150 – Class 2500 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Forged Steel |
| Gate Material | Stainless Steel, Alloy Steel |
| Seat Material | PTFE, Reinforced PTFE, Metal Seat |
| Connection Type | Flanged, Butt Welded |
| Actuator Type | Electric Actuator |
| Control Mode | Local, Remote, Automatic |
| Voltage Options | AC220V, AC380V, DC24V |
| Temperature Range | -29°C to +550°C |
| Sealing Type | Soft Seal / Metal Seal |
| Leakage Standard | API 598 / ISO 5208 Class A |
| Design Standard | API 6D, API 600, ASME B16.34 |
| Applicable Media | Crude Oil, Natural Gas, Water, Steam, Petrochemical Fluids |

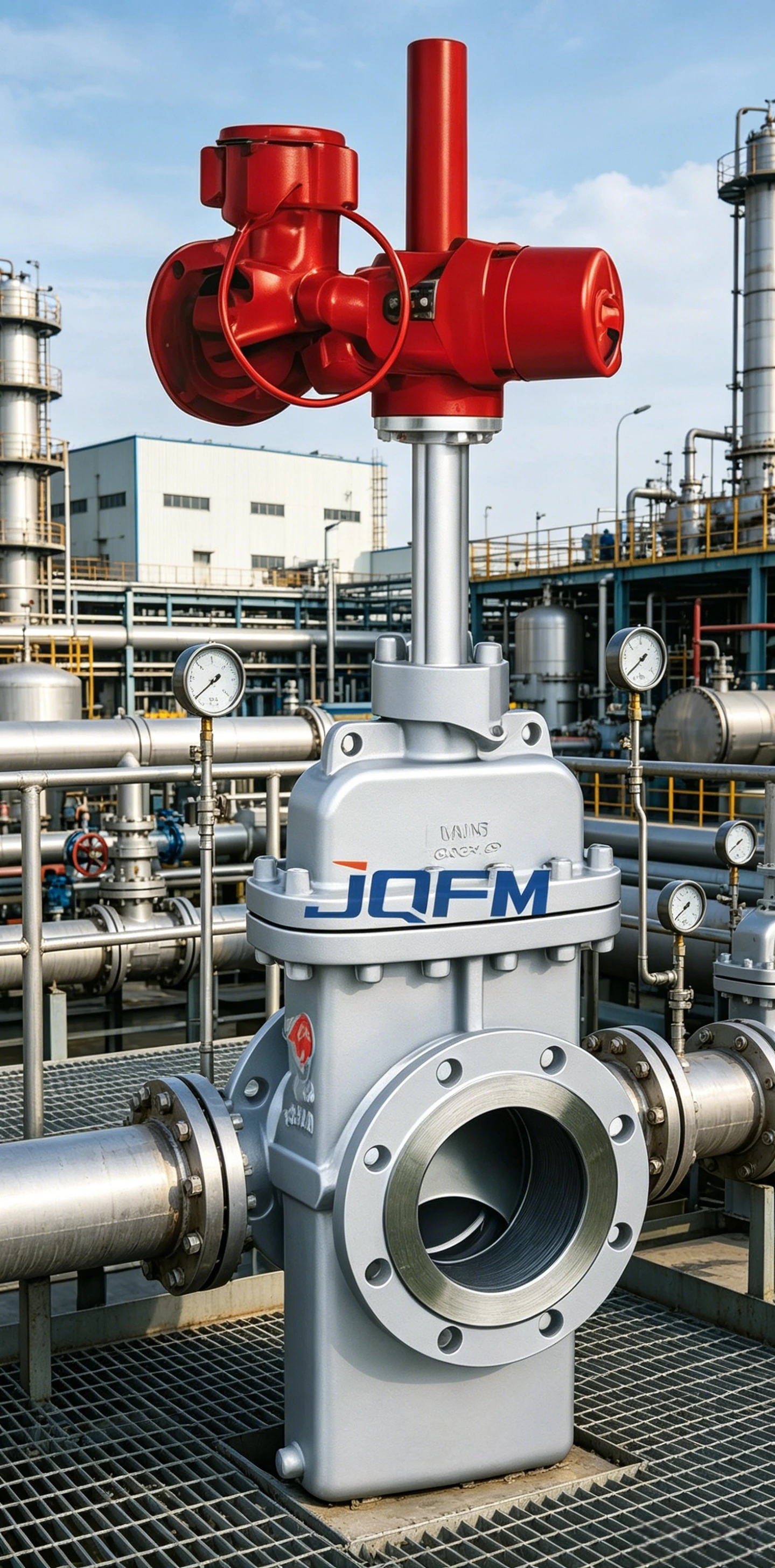

Electric flat gate valve with diversion hole
Used in crude oil pipelines, gathering systems, storage facilities, and long-distance transmission networks requiring automated flow isolation.
Ideal for gas transmission pipelines, compressor stations, LNG terminals, and gas distribution systems.
Suitable for high-pressure process lines, refining systems, and hydrocarbon transportation applications.
Applied in steam systems, cooling water pipelines, and auxiliary process networks requiring remote control operation.
Integrated into SCADA and DCS control systems for intelligent monitoring and automated valve operation.
Widely used in chemical plants, fertilizer facilities, energy projects, and industrial fluid transportation systems.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
