Electric gate valve

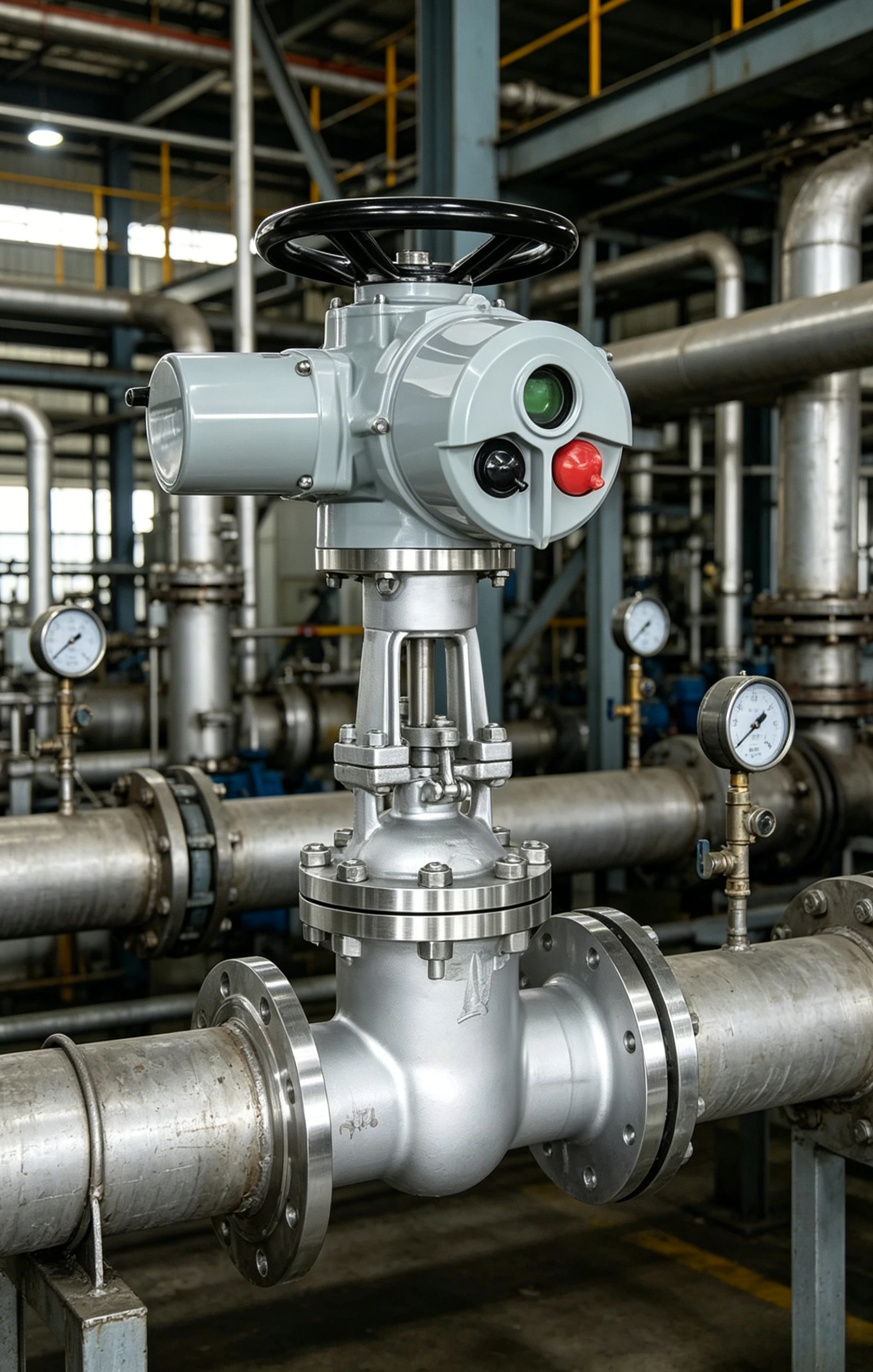

The electric gate valve combines a robust gate valve body with an electric actuator for precise automated operation. Designed for on-off service, it offers tight sealing, minimal pressure loss, corrosion resistance, and dependable performance in demanding industrial environments such as water treatment, power generation, oil and gas, and chemical processing systems.
Electric gate valve

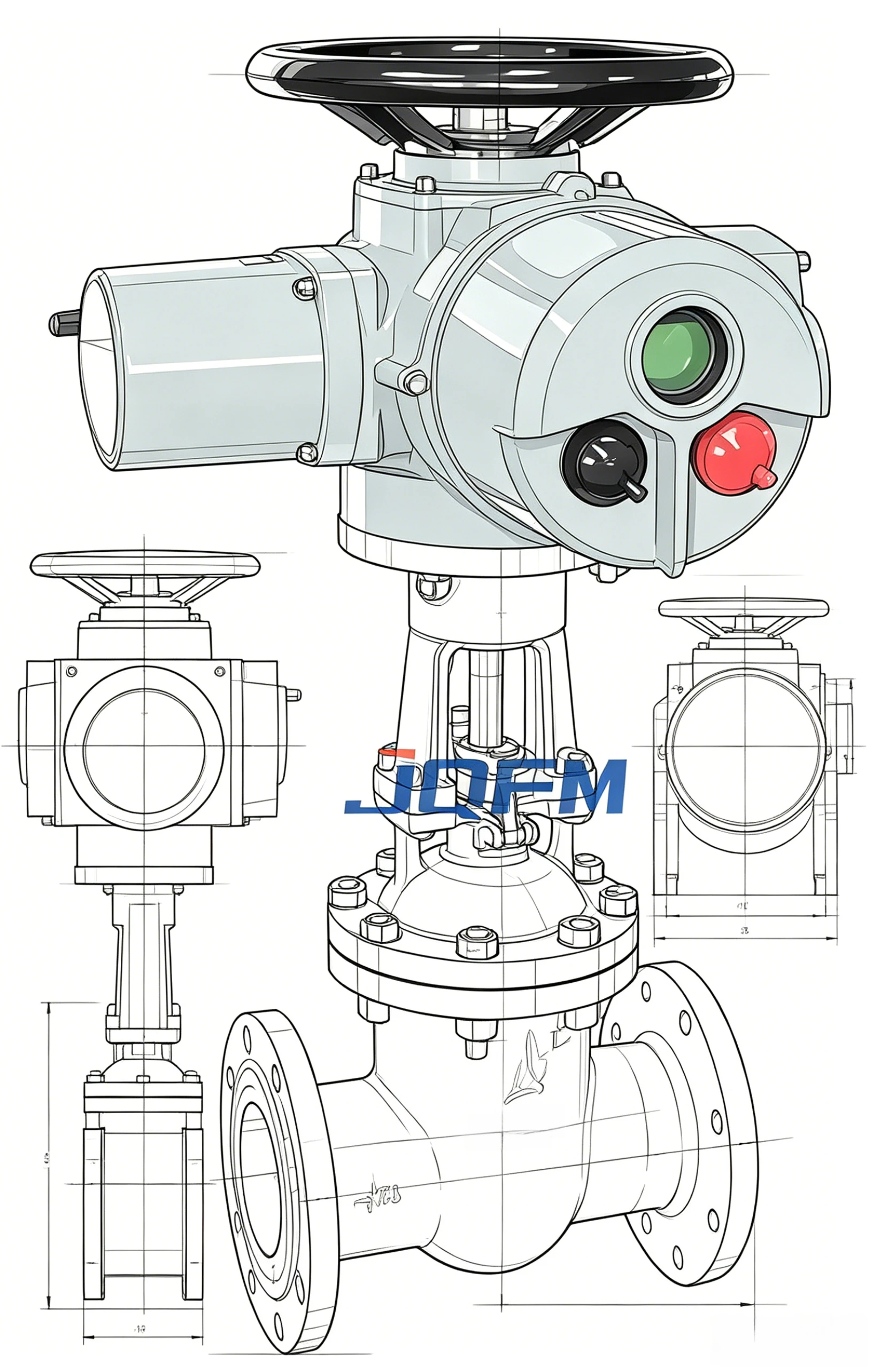

Electric Gate Valves are engineered to provide efficient and reliable flow isolation in automated pipeline systems. Equipped with advanced electric actuators, these valves enable remote monitoring and control while reducing manual operation requirements. Manufactured from premium materials such as carbon steel, stainless steel, duplex steel, and alloy steel, they deliver exceptional sealing performance, long service life, and operational safety.
Suitable for various industrial fluids including water, steam, oil, gas, and chemical media, electric gate valves are widely used in modern process automation systems.
As a professional valve manufacturer, we offer comprehensive OEM and ODM services:
Our electric gate valves are manufactured and tested according to international standards and certifications:
Electric gate valve
| Parameter | Specification |
|---|---|
| Product Type | Electric Gate Valve |
| Nominal Size | DN15-DN1200 (1/2"–48") |
| Pressure Rating | PN10-PN420, Class 150-2500 |
| Body Material | WCB, WC6, WC9, CF8, CF8M, Duplex Steel |
| Disc Material | Stainless Steel, Alloy Steel |
| Stem Material | SS304, SS316, F51 |
| Connection Type | Flanged, Butt Weld, Socket Weld |
| Seat Type | Metal Seat / Soft Seat |
| Actuator Type | Multi-turn Electric Actuator |
| Voltage | AC220V, AC380V, DC24V |
| Protection Class | IP67 / IP68 |
| Temperature Range | -29°C to +425°C |
| Control Signal | 4-20mA, Modbus, Profibus |
| Leakage Class | ANSI Class VI |
| Operation | Remote Control / Local Control |
| Applicable Media | Water, Steam, Oil, Gas, Chemicals |
Electric gate valve
Electric gate valves are widely used in:
Pipeline isolation, storage terminals, refining systems, offshore platforms.
Water distribution networks, wastewater treatment systems, desalination facilities.
Thermal power plants, nuclear power stations, cooling water systems.
Corrosive fluid handling, process control systems, chemical transfer pipelines.
Slurry transportation, mineral processing systems, industrial water management.
Process fluid control, steam distribution, utility pipelines.
Central heating, chilled water circulation, building automation systems.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
