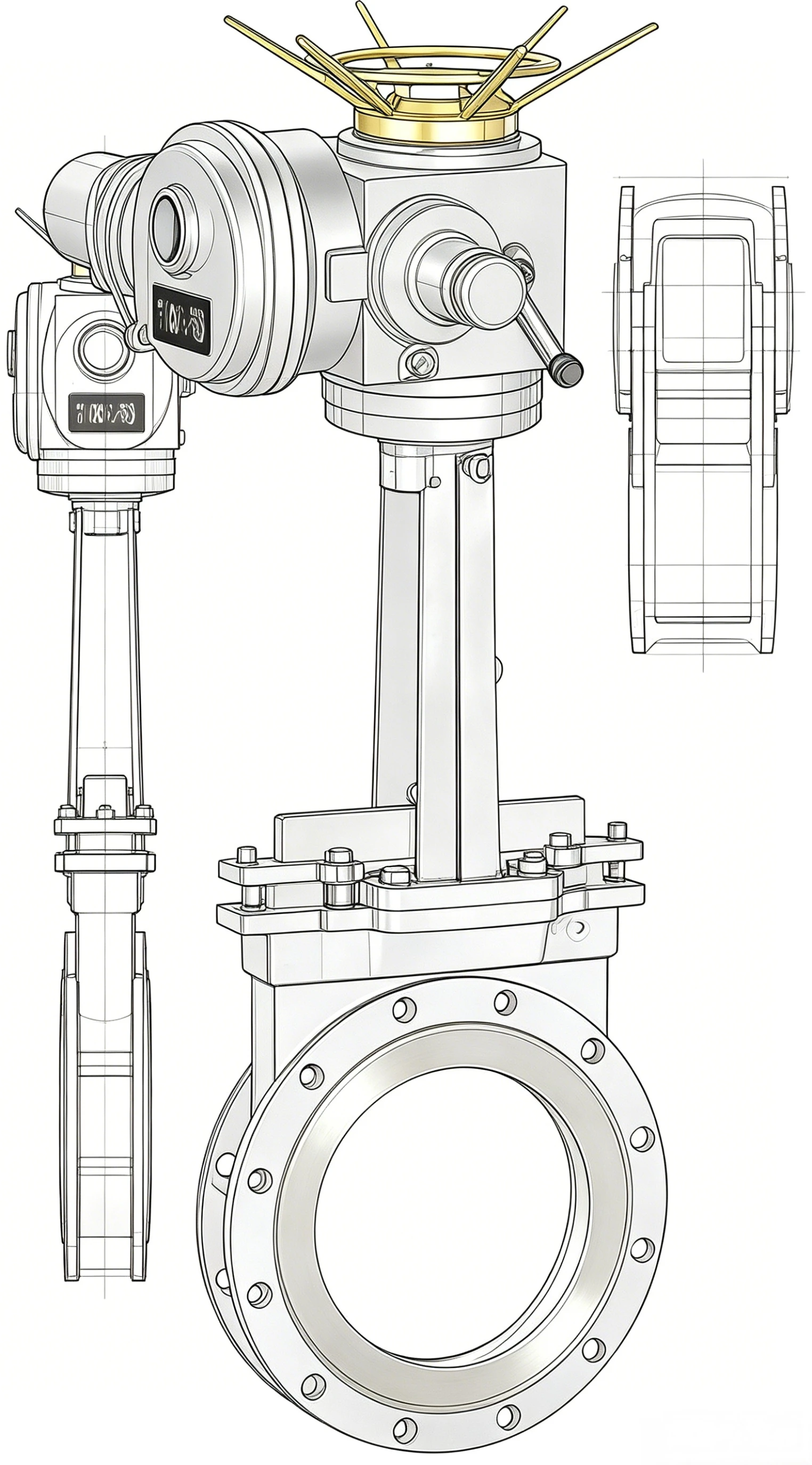

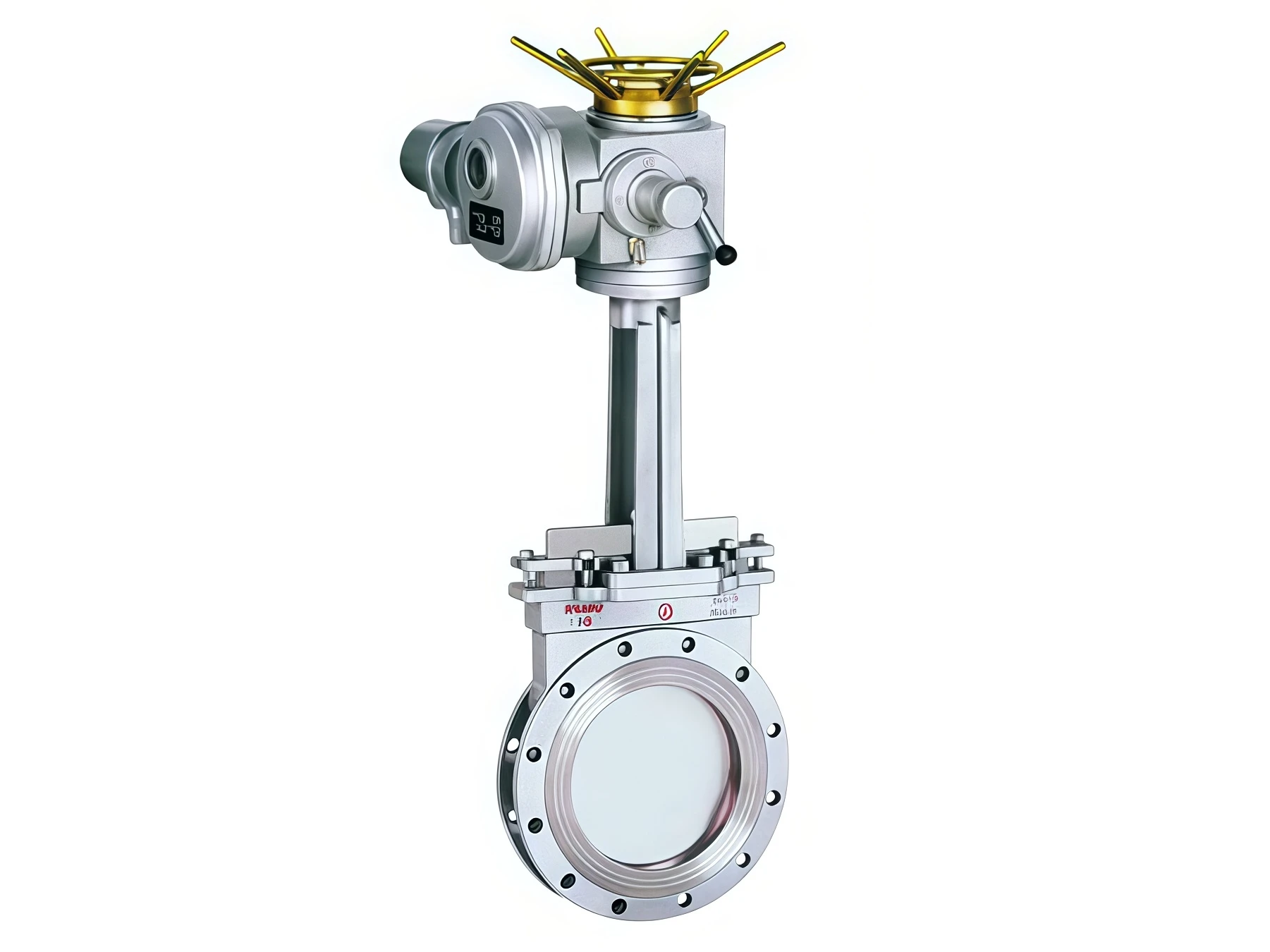

Electric knife gate valve
The Electric Knife Gate Valve is engineered for slurry, pulp, wastewater, and particle-laden fluids. Equipped with a high-performance electric actuator, it enables fast, accurate opening and closing. Its wear- and corrosion-resistant construction, combined with reliable sealing, ensures long service life, low maintenance, and dependable operation in mining, chemical, and water treatment industries.
Electric knife gate valve
Electric Knife Gate Valves integrate a sharp knife-edge gate with an electric actuator to provide automated on/off control in abrasive, fibrous, or viscous pipelines. Ideal for medium- to large-diameter valves, these valves reduce operating torque, prevent clogging, and ensure precise shut-off.
The robust construction offers excellent resistance to wear, corrosion, and erosion. The electric actuator supports remote operation, intelligent control, and integration with PLC, DCS, and SCADA industrial automation systems. Flanged, wafer, and lug connections allow versatile installation, while OEM customization supports material, actuator type, and valve configuration requirements.
Electric knife gate valve
| Parameter | Specification |
|---|---|
| Product Name | Electric Knife Gate Valve |
| Nominal Size | DN50 – DN1200 (2" – 48") |
| Pressure Rating | PN10 – PN40 |
| ANSI Class | Class 150 – Class 300 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Ductile Iron |
| Gate Material | Stainless Steel, Hardfaced Alloy, Wear-Resistant Steel |
| Seat Material | EPDM, NBR, PTFE, Metal Seat |
| Connection Type | Flanged, Wafer, Lug |
| Operation | Electric Actuator, Manual Override |
| Power Supply | 24VDC, 220VAC, 380VAC |
| Control Type | On/Off, Modulating |
| Temperature Range | -20°C to +250°C |
| Sealing Type | Bi-directional / Uni-directional |
| Leakage Standard | API 598 / ISO 5208 Class A |
| Design Standard | API 609, ASME B16.34 |
| Applicable Media | Slurry, Pulp, Wastewater, Tailings, Chemicals |
Electric knife gate valve
Automated control of abrasive slurries, tailings, and pulp pipelines.
Regulates sludge, wastewater, and chemical dosing pipelines.
Used in ash handling, desulfurization, and slurry transport systems.
Handles corrosive and viscous slurry in process pipelines.
Controls pulp stock, effluent, and processing slurry pipelines.
Used in residue handling, slurry transportation, and heavy industrial pipelines.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
