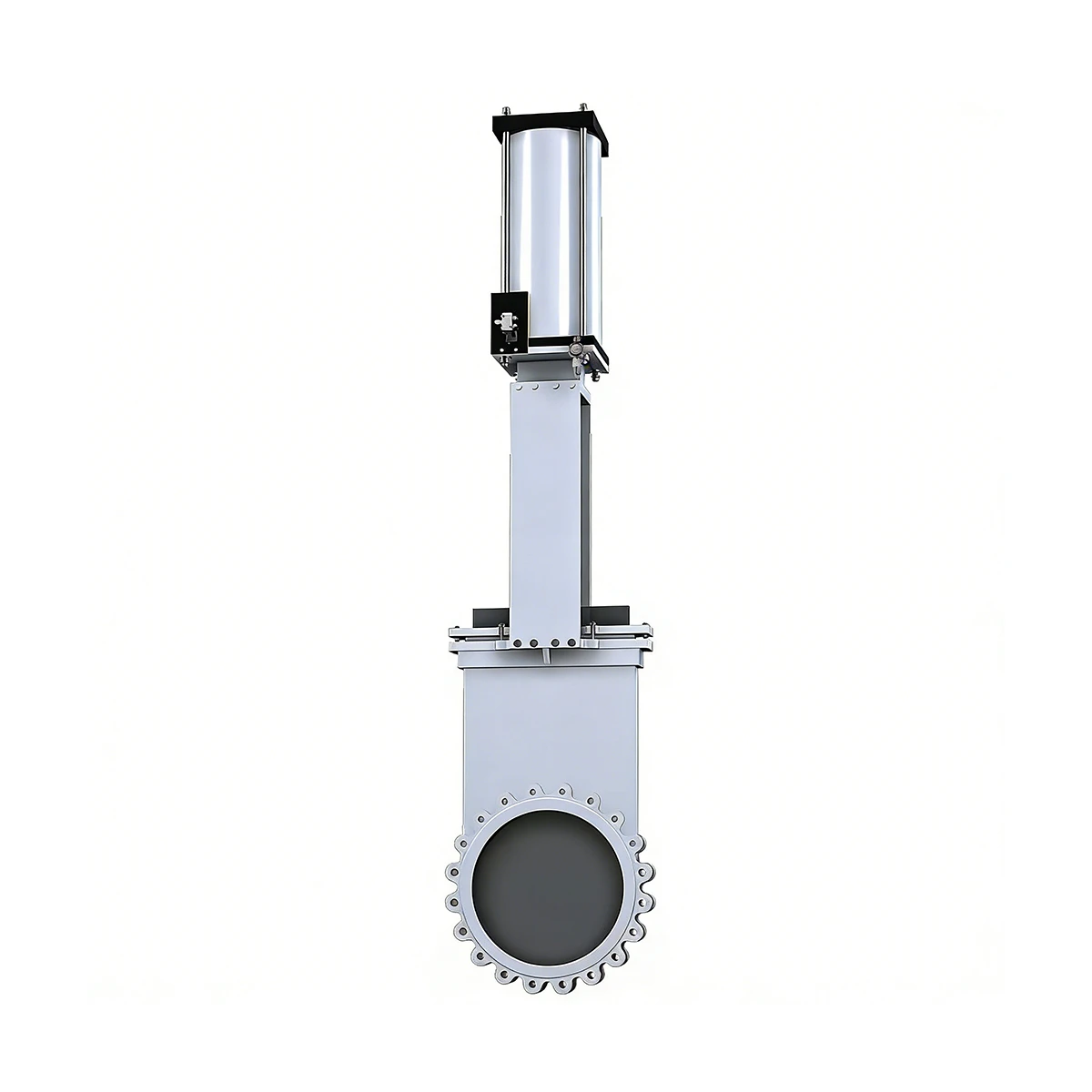

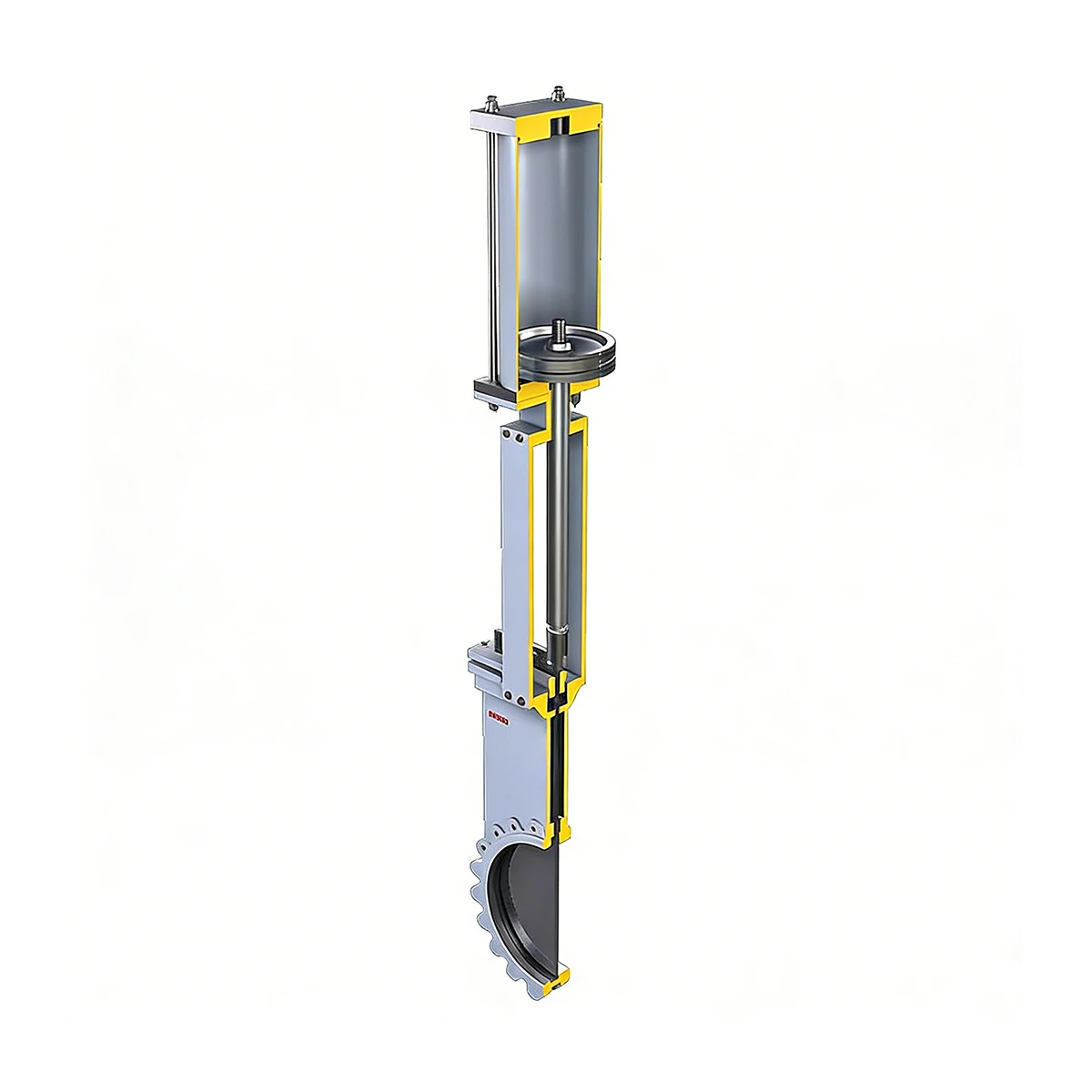

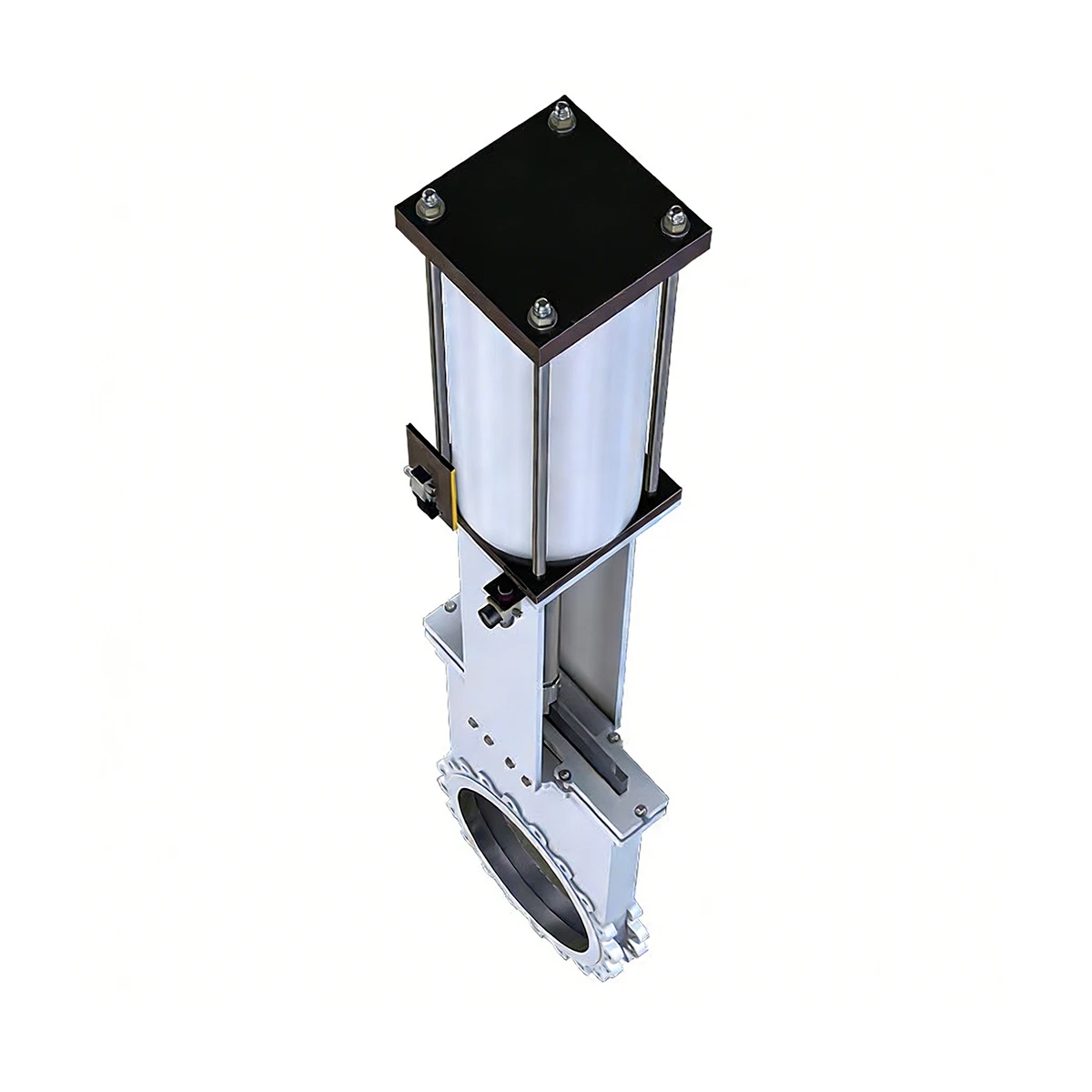

Electric Knife-Type Gate Valve
Nominal Diameter: 2" ~ 48"
Nominal Pressure: 150 ~ 2500 lb
Mediums: Water, sewage, slurry, oil, chemicals
Temperature Range: ≤ 200°C
Electric Knife-Type Gate Valve
The Electric Knife-Type Gate Valve is a high-performance automated isolation valve specifically designed for handling slurries, wastewater, pulp, powders, granular materials, and other media containing suspended solids. Equipped with an electric actuator, the valve enables remote operation, automated process control, and seamless integration into industrial control systems.
The sharp-edged gate effectively cuts through fibrous, viscous, and solid-laden media, ensuring reliable shut-off performance even in challenging operating conditions. Its compact structure, bidirectional sealing options, and low maintenance requirements make it an ideal solution for modern industrial automation systems.
Designed to meet international standards and project requirements, our Electric Knife-Type Gate Valves are widely used in water treatment, mining, pulp and paper, chemical processing, power generation, and bulk material handling industries throughout North America, the Middle East, and global markets.
We provide comprehensive OEM and ODM manufacturing services to meet project-specific requirements and regional standards.
| Customization Item | Available Options |
|---|---|
| Valve Size | DN50 – DN2000 (2" – 80") |
| Pressure Rating | PN6, PN10, PN16, Class 150 |
| Body Material | Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel, Duplex Stainless Steel |
| Gate Material | SS304, SS316, Duplex SS, Hard-Coated Steel |
| Seat Material | NBR, EPDM, PTFE, Metal Seat |
| Connection Type | Wafer, Lug, Flanged |
| Electric Actuator | On-Off, Modulating, Intelligent Control |
| Control Signal | 4-20mA, 0-10V, Modbus, Profibus |
| Voltage Options | 24VDC, 110VAC, 220VAC, 380VAC, 460VAC |
| Protection Class | IP65, IP67, IP68 |
| Coating System | Epoxy Coating, Anti-Corrosion Coating, Marine Coating |
| Operating Temperature | Customized Based on Media |
| Nameplate & Logo | OEM Branding Available |
| Packaging | Export Wooden Cases, Customized Packaging |
| Documentation | MTC 3.1, Hydrostatic Test Reports, Material Traceability |
| Third-Party Inspection | SGS, BV, TÜV, DNV, Lloyd's Register |
Available upon request and project requirements:
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Electric Knife-Type Gate Valve |
| Valve Type | Knife Gate Valve |
| Operation | Electric Actuator |
| Size Range | DN50 – DN2000 (2" – 80") |
| Pressure Rating | PN6, PN10, PN16, ANSI Class 150 |
| Body Design | Wafer, Lug, Flanged |
| Design Standard | MSS SP-81, TAPPI TIS 405, Manufacturer Standard |
| Face-to-Face Standard | MSS SP-81 |
| Testing Standard | MSS SP-151, API 598 |
| Body Material | Cast Iron, Ductile Iron, WCB, CF8, CF8M |
| Gate Material | SS304, SS316, Duplex Stainless Steel |
| Seat Material | NBR, EPDM, PTFE, Metal Seat |
| Stem Material | Stainless Steel |
| Leakage Class | ANSI/FCI 70-2, MSS SP-81 |
| Operating Temperature | -20°C to 200°C (-4°F to 392°F) |
| Applicable Media | Slurry, Wastewater, Pulp, Powder, Ash, Bulk Solids |
| Actuator Type | On-Off, Modulating, Intelligent Electric Actuator |
| Control Signal | 4-20mA, 0-10V, Modbus, Profibus |
| Power Supply | 24VDC, 110VAC, 220VAC, 380VAC, 460VAC |
| Protection Class | IP65, IP67, IP68 |
| Installation Position | Vertical or Horizontal |
Industry Applications
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
