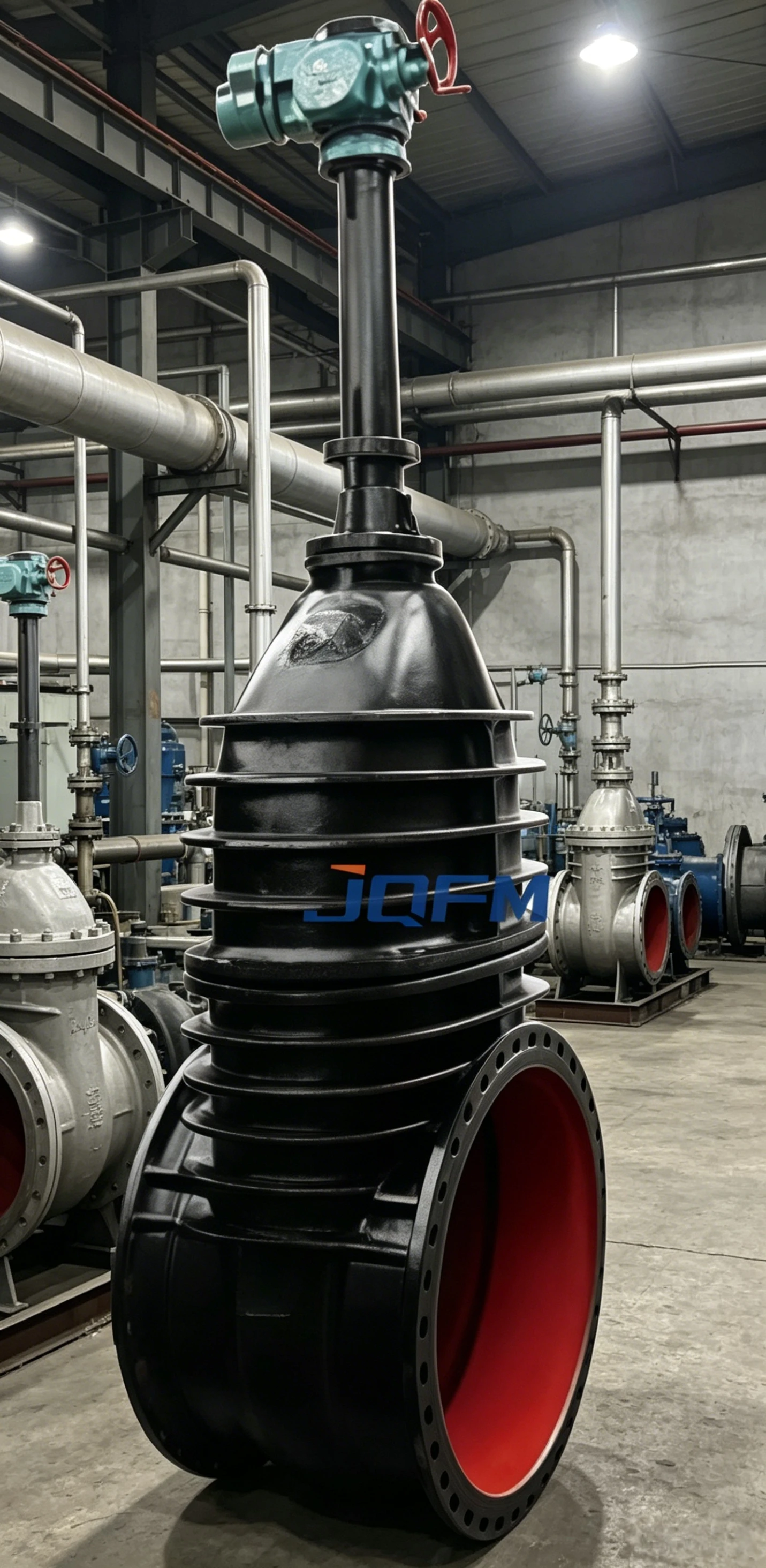

Electric rising stem cast iron gate valve
Designed with a rising stem structure and electric actuator, this cast iron gate valve enables remote operation and accurate valve position monitoring. Manufactured from high-quality cast iron materials, it delivers excellent sealing performance, low flow resistance, corrosion protection, and dependable service for water supply, wastewater, and industrial pipeline systems.
Electric rising stem cast iron gate valve
The Electric Rising Stem Cast Iron Gate Valve combines the advantages of a traditional gate valve with modern electric actuation technology. The rising stem design allows operators to visually identify valve position, improving operational safety and maintenance efficiency.
Constructed from durable cast iron and equipped with a reliable electric actuator, this valve provides automatic opening and closing functions for flow isolation applications. It is widely used in water treatment plants, municipal water supply systems, irrigation networks, HVAC installations, and industrial utility pipelines.
Our Electric Rising Stem Cast Iron Gate Valves can be supplied with complete international certifications:

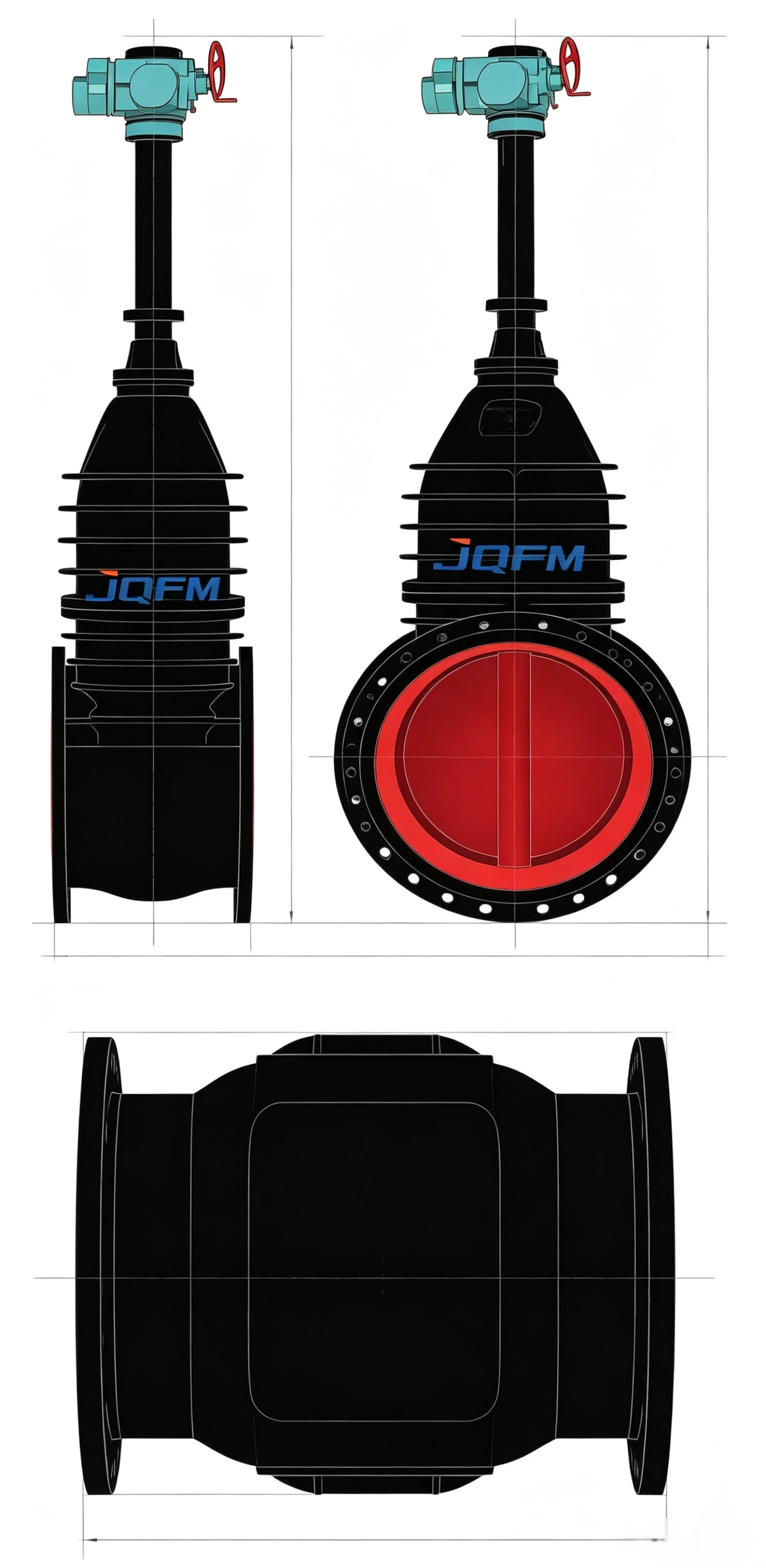

Electric rising stem cast iron gate valve
| Parameter | Specification |
|---|---|
| Product Name | Electric Rising Stem Cast Iron Gate Valve |
| Valve Type | Rising Stem Gate Valve |
| Body Material | Cast Iron / Ductile Iron |
| Stem Material | Stainless Steel 304 / 316 |
| Seat Material | EPDM, NBR, Bronze, Brass |
| Size Range | DN50–DN1200 (2"–48") |
| Pressure Rating | PN10, PN16, Class 125 |
| Connection Type | Flanged |
| Flange Standard | ANSI, DIN, BS, JIS, GB |
| Operation | Electric Actuator |
| Control Mode | On-Off / Modulating |
| Voltage Options | 24V, 110V, 220V, 380V, 415V |
| Protection Grade | IP67 / IP68 |
| Working Temperature | -10°C to 120°C |
| Applicable Media | Water, Wastewater, Air, Neutral Fluids |
| Testing Standard | API 598 / EN 12266 |
| Certification | ISO, CE, PED, WRAS (Optional) |
Electric rising stem cast iron gate valve
Used for automatic flow isolation and pipeline control in urban water distribution networks.
Suitable for clean water, raw water, and treatment process pipelines requiring remote operation.
Provides reliable shut-off control for sewage and wastewater transportation systems.
Ideal for automated irrigation control systems and agricultural water management projects.
Used in heating, ventilation, and cooling water circulation pipelines.
Applied in factory water supply, cooling water systems, and utility service networks.
Widely installed in municipal engineering, pumping stations, reservoirs, and public utility facilities.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
