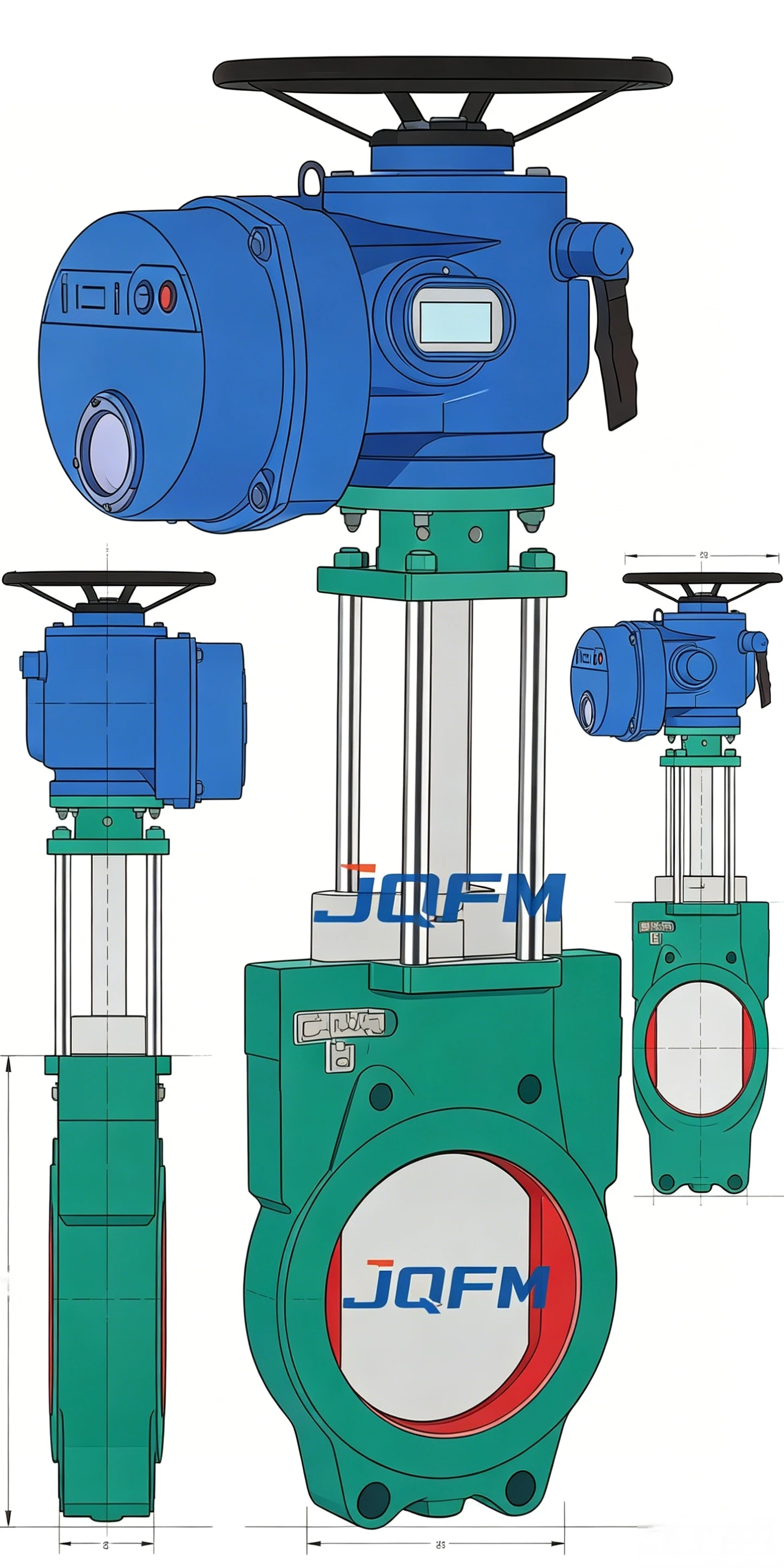

Electric slurry valve
The Electric Slurry Valve is designed for automated control of slurry, pulp, wastewater, and abrasive media pipelines. Equipped with a high-performance electric actuator, it ensures precise opening and closing operations. Wear-resistant construction, tight sealing performance, and intelligent control capabilities make it ideal for mining, chemical, power, and water treatment industries.
Electric slurry valve
The Electric Slurry Valve combines a heavy-duty slurry valve body with an advanced electric actuator to provide reliable automated flow control in harsh industrial environments. Designed to handle abrasive, viscous, and solid-laden media, the valve ensures smooth operation, minimizes clogging, and delivers excellent sealing performance.
Its robust construction offers superior resistance to wear, corrosion, and erosion, while the electric actuator enables remote operation, intelligent control, and integration with industrial automation systems such as PLC, DCS, and SCADA platforms.
As a professional industrial valve manufacturer, we provide complete OEM and ODM services for global customers.
Our Electric Slurry Valves are manufactured and tested according to international industrial standards.
Electric slurry valve
| Parameter | Specification |
|---|---|
| Product Name | Electric Slurry Valve |
| Nominal Size | DN50 – DN1200 (2" – 48") |
| Pressure Rating | PN10 – PN40 |
| ANSI Class | Class 150 – Class 300 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Ductile Iron |
| Gate/Disc Material | Stainless Steel, Wear-Resistant Alloy Steel |
| Seat Material | EPDM, NBR, PTFE, Polyurethane, Metal |
| Connection Type | Flanged, Wafer, Lug |
| Operation | Electric Actuated |
| Power Supply | 24VDC, 220VAC, 380VAC |
| Control Type | On/Off, Modulating |
| Protection Class | IP67 / IP68 |
| Temperature Range | -20°C to +250°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | MSS SP-81, ASME B16.34 |
| Applicable Media | Slurry, Pulp, Wastewater, Tailings, Chemicals |
Electric slurry valve
Used for automated control of tailings, mineral slurry, concentrate transport, and ore processing systems.
Controls sludge, wastewater, and chemical dosing pipelines with remote operation capabilities.
Suitable for fly ash handling, desulfurization systems, and slurry transportation pipelines.
Handles corrosive slurries, chemical residues, and abrasive process media.
Controls pulp stock, fiber slurry, and wastewater discharge systems.
Applied in slurry transportation, residue treatment, and material conveying systems.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
