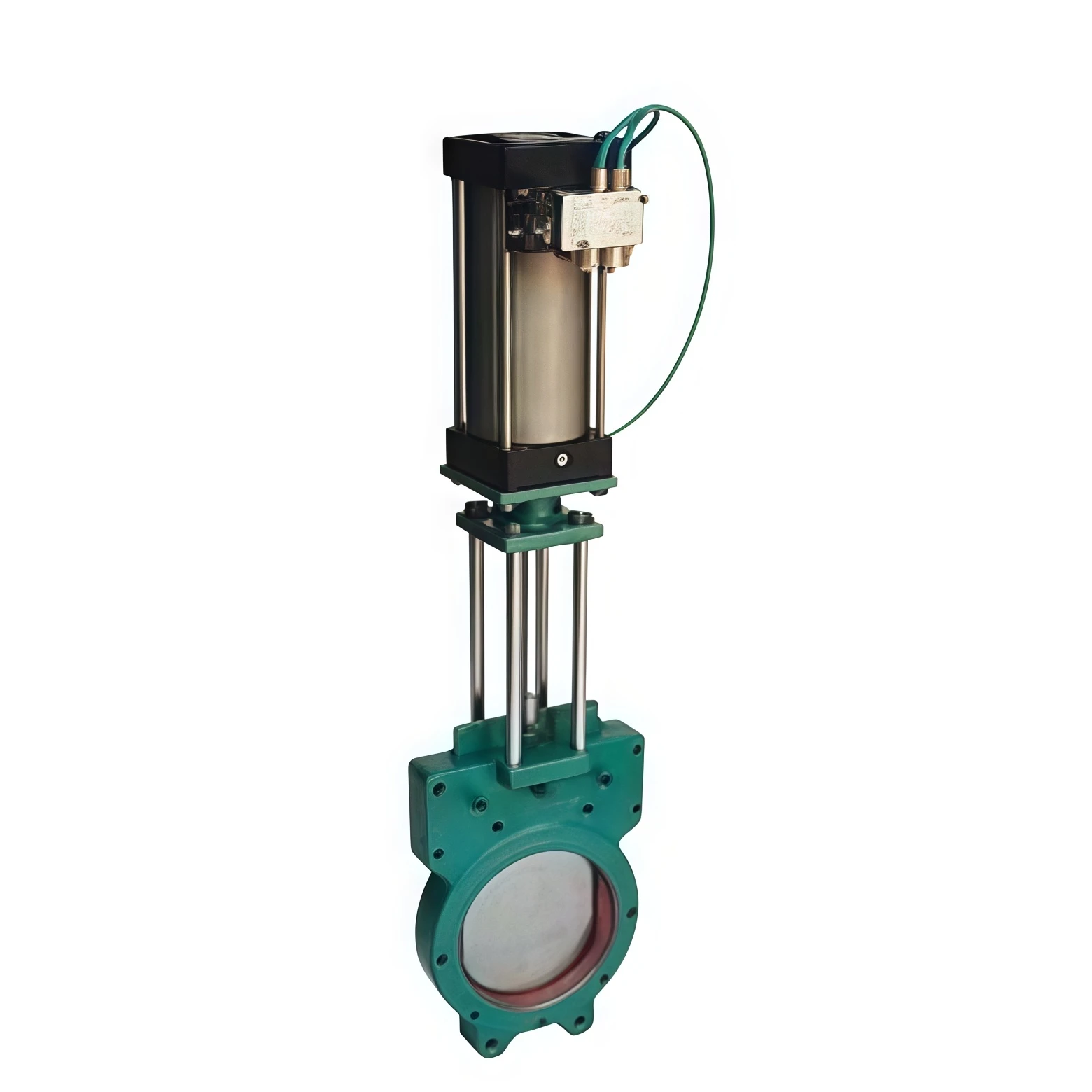

Electro hydraulic knife gate valve
The Electro-Hydraulic Knife Gate Valve is engineered for slurry, pulp, wastewater, and abrasive media systems. Its sharp knife-edge gate effectively cuts through solids, while electro-hydraulic actuation enables precise, automated operation. The valve provides excellent sealing, low maintenance, and long operational life, ideal for mining, power generation, chemical, and bulk material handling industries.

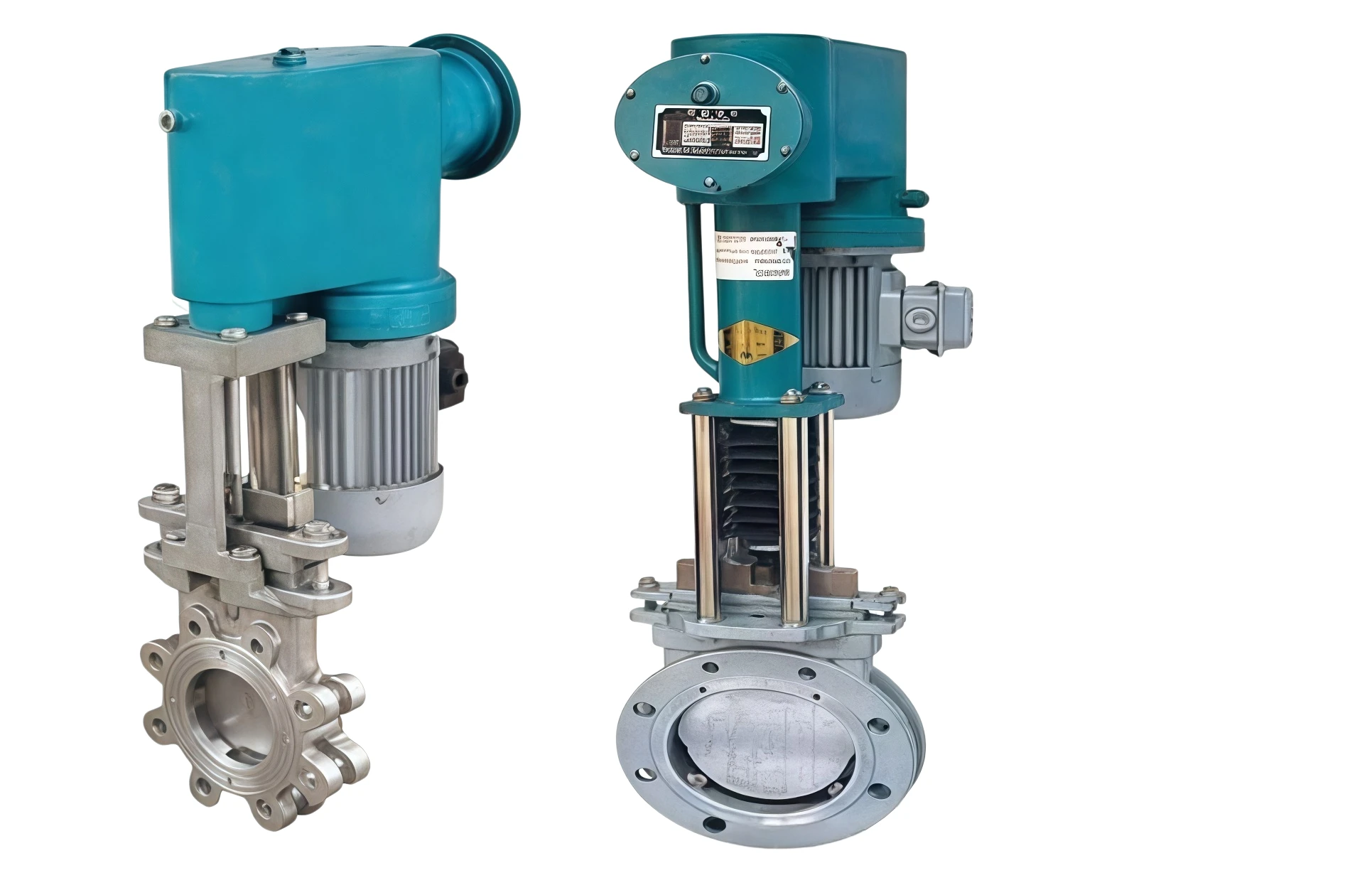

Electro hydraulic knife gate valve
The Electro-Hydraulic Knife Gate Valve combines a robust knife-edge gate with integrated electro-hydraulic actuation for automated control in demanding industrial environments. Its design allows reliable isolation of slurry, powder, pulp, wastewater, and abrasive media, minimizing leakage and wear.
The valve supports full-port flow, reducing pressure drop, and is compatible with remote control, PLC, and DCS systems. High-strength body materials and wear-resistant gate surfaces ensure long-term durability under severe conditions. OEM customization allows adaptation to project-specific sizes, materials, and actuator configurations.
Our Electro-Hydraulic Knife Gate Valves meet international quality standards:
Electro hydraulic knife gate valve
| Parameter | Specification |
|---|---|
| Product Name | Electro-Hydraulic Knife Gate Valve |
| Nominal Size | DN50 – DN1200 (2" – 48") |
| Pressure Rating | PN6 – PN40 |
| ANSI Class | Class 125 – Class 300 |
| Body Material | Carbon Steel, Stainless Steel, Ductile Iron, Alloy Steel |
| Gate Material | SS304 / SS316, Alloy Steel, Hardfaced Steel |
| Seat Material | EPDM, NBR, PTFE, Metal Seat |
| Connection Type | Wafer, Lug, Flanged |
| Operation | Electro-Hydraulic Actuated |
| Manual Override | Yes |
| Stem Type | Rising Stem |
| Temperature Range | -20°C to +200°C |
| Sealing Type | Bidirectional / Unidirectional |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | MSS SP-81 / API 609 |
| Applicable Media | Slurry, Pulp, Wastewater, Powder, Bulk Solids |
Electro hydraulic knife gate valve
Slurry handling, tailings discharge, ore pulp transport.
Fly ash, boiler ash, and industrial wastewater handling systems.
Pulp stock and paper mill slurry pipelines.
Corrosive slurry, abrasive powders, and solid-laden fluids.
Cement powder, granular materials, and silo discharge.
Sludge, effluent pipelines, and abrasive media control.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
