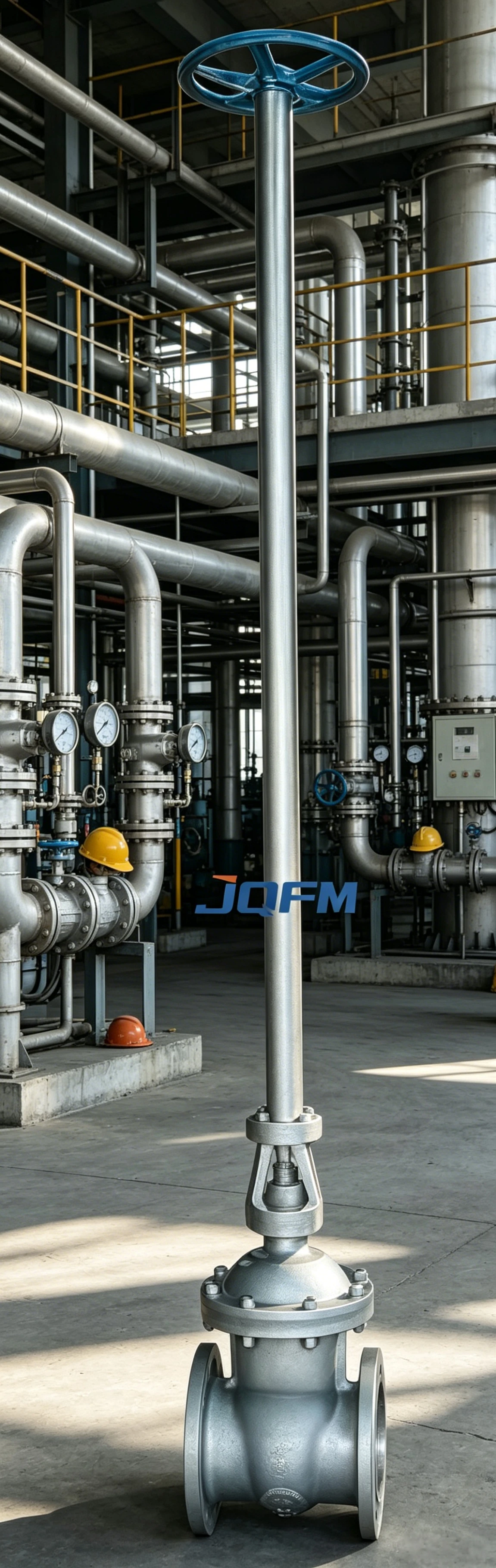

Extended rod steel low pressure gate valve
Designed with an extended stem structure, this steel low-pressure gate valve allows convenient operation in underground, insulated, or elevated pipeline systems. Manufactured from high-quality carbon steel or stainless steel, it offers excellent sealing performance, corrosion resistance, low flow resistance, and long-term reliability for industrial fluid control applications.
Extended rod steel low pressure gate valve

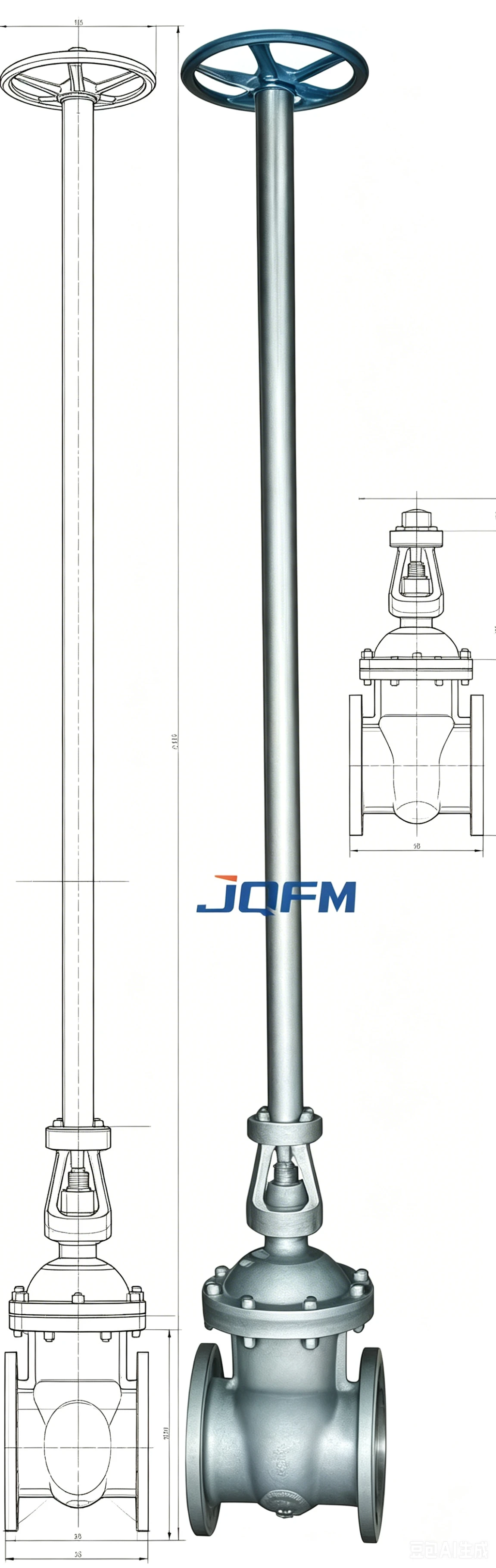

The Extended Rod Steel Low Pressure Gate Valve is specifically designed for installations where the operating point is difficult to access, such as buried pipelines, underground chambers, insulated pipelines, and elevated systems. The extended stem enables operators to control the valve from ground level or designated access points.
The valve adopts a wedge gate design that ensures full-bore flow with minimal pressure loss. Its robust steel construction provides excellent mechanical strength, corrosion resistance, and long service life under low-pressure working conditions.
Our extended rod gate valves can be supplied with complete international certifications:
Extended rod steel low pressure gate valve
| Parameter | Specification |
|---|---|
| Product Name | Extended Rod Steel Low Pressure Gate Valve |
| Valve Type | Wedge Gate Valve |
| Size Range | DN50–DN1200 (2"–48") |
| Pressure Rating | PN10, PN16, Class 150 |
| Body Material | Carbon Steel, Stainless Steel, Duplex Steel |
| Stem Material | Stainless Steel 304/316 |
| Seat Material | Metal Seat, PTFE, EPDM |
| Connection Type | Flanged, Butt Weld |
| Operation | Handwheel, Gearbox, Electric, Pneumatic |
| Stem Extension Length | Customized |
| Working Temperature | -29°C to 425°C |
| Applicable Media | Water, Oil, Gas, Steam, Chemicals |
| Leakage Standard | API 598 / EN 12266 |
| Surface Treatment | Epoxy Coating, Anti-corrosion Painting |
| Design Standard | API, DIN, BS, GB |
| Certification | ISO, CE, API, PED |
Extended rod steel low pressure gate valve
Ideal for underground water distribution pipelines and valve chambers requiring remote operation.
Suitable for insulated hot water and heating pipelines with buried valve installations.
Used for low-pressure transmission systems requiring reliable isolation and easy accessibility.
Applied in cooling water, compressed air, and utility pipeline systems.
Installed in auxiliary piping systems where valves are located in difficult-to-access positions.
Provides dependable shut-off control for low-pressure process media and utility services.
Widely used in underground pipeline networks, sewage systems, and municipal engineering projects.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
