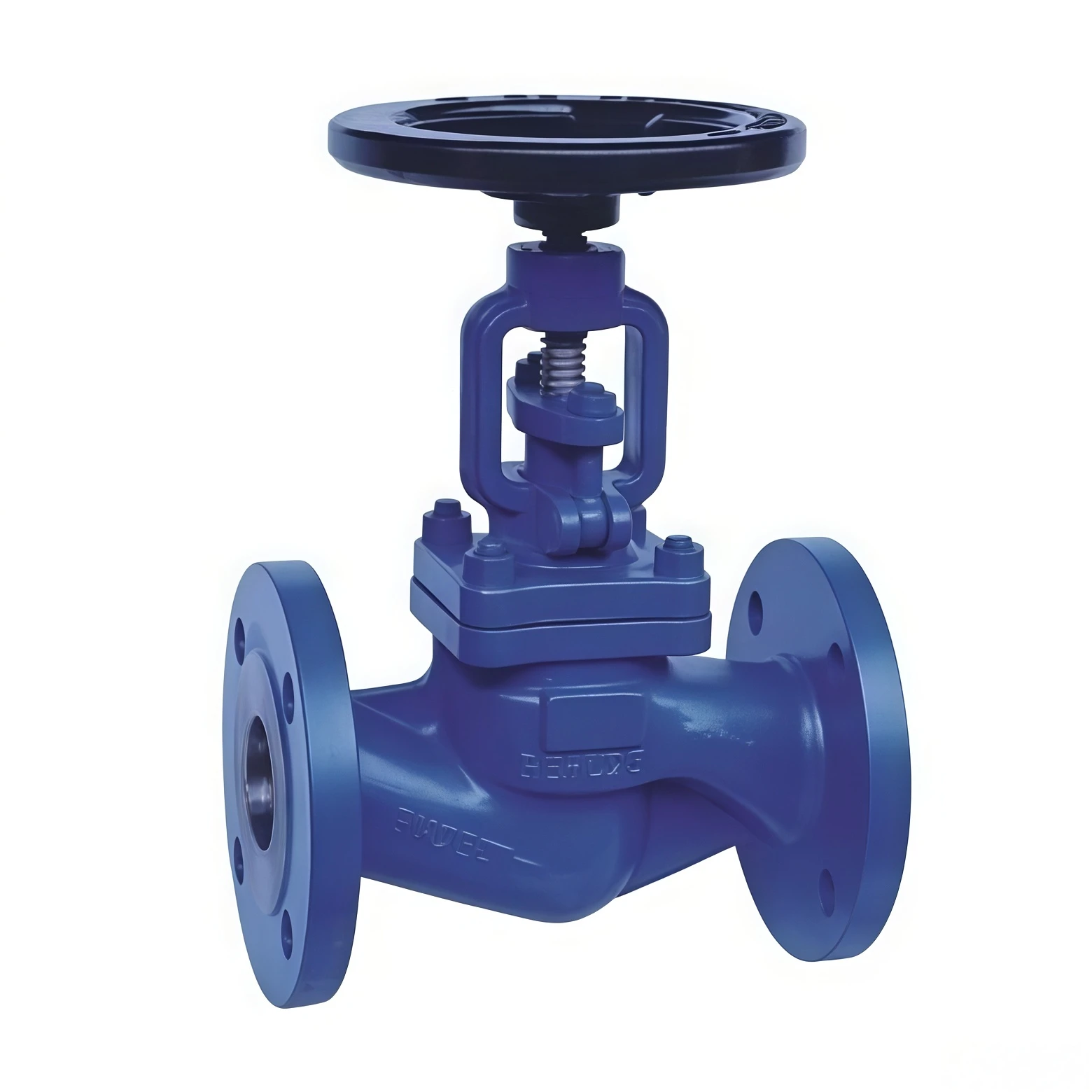

German standard globe valve
The German Standard Globe Valve is designed for demanding industrial applications requiring accurate throttling and reliable isolation. Manufactured according to DIN/EN standards, it offers superior sealing performance, corrosion resistance, and robust mechanical strength. Suitable for water, steam, oil, gas, and chemical media, it delivers consistent performance with minimal maintenance.
German standard globe valve
The German Standard Globe Valve is engineered for precise flow regulation and isolation in industrial piping systems, fully compliant with DIN/EN standards. Its linear motion disc design ensures accurate throttling and reliable sealing.
Constructed from premium materials, including stainless steel and carbon steel, the valve is suitable for high-pressure, high-temperature, and corrosive environments. It supports manual handwheel operation or integration with pneumatic/electric actuators. OEM customization allows adaptation to specific materials, sizes, pressure ratings, and connection types.
German Standard Globe Valves meet international quality and safety requirements:
German standard globe valve
| Parameter | Specification |
|---|---|
| Product Name | German Standard Globe Valve |
| Nominal Size | DN15 – DN1200 (½" – 48") |
| Pressure Rating | PN10 – PN420 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel |
| Disc Material | Stainless Steel, Alloy Steel, Stellite Overlay |
| Seat Material | Metal Seat / Soft Seat (PTFE, NBR, EPDM) |
| Connection Type | Flanged, Threaded, Butt Weld |
| Operation | Manual Handwheel, Bevel Gear, Pneumatic, Electric |
| Temperature Range | -29°C to +550°C |
| Stem Type | Rising / Non-Rising |
| Leakage Standard | API 598 |
| Design Standard | DIN / EN / API 602 / API 623 |
| Applicable Media | Water, Steam, Oil, Gas, Chemicals |
German standard globe valve
Steam lines, boiler feedwater, and turbine pipelines.
Crude oil, refined petroleum, and high-pressure gas pipelines.
Corrosive fluids, solvents, acids, alkalis, and process fluids.
Industrial water supply, potable water, and wastewater treatment pipelines.
Sanitary process lines and production systems.
Precise flow control and shut-off in high-quality DIN/EN standard piping networks.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
