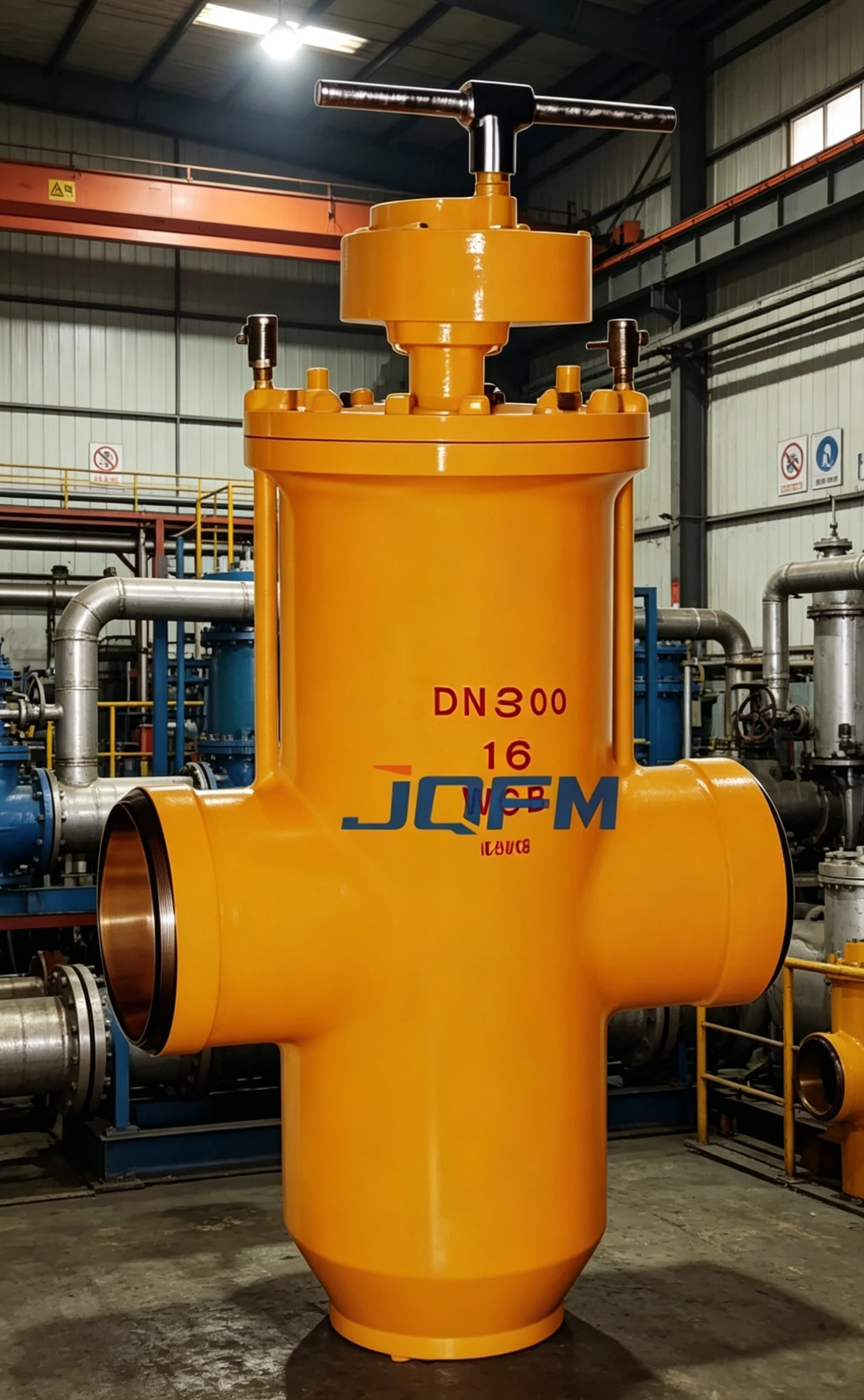

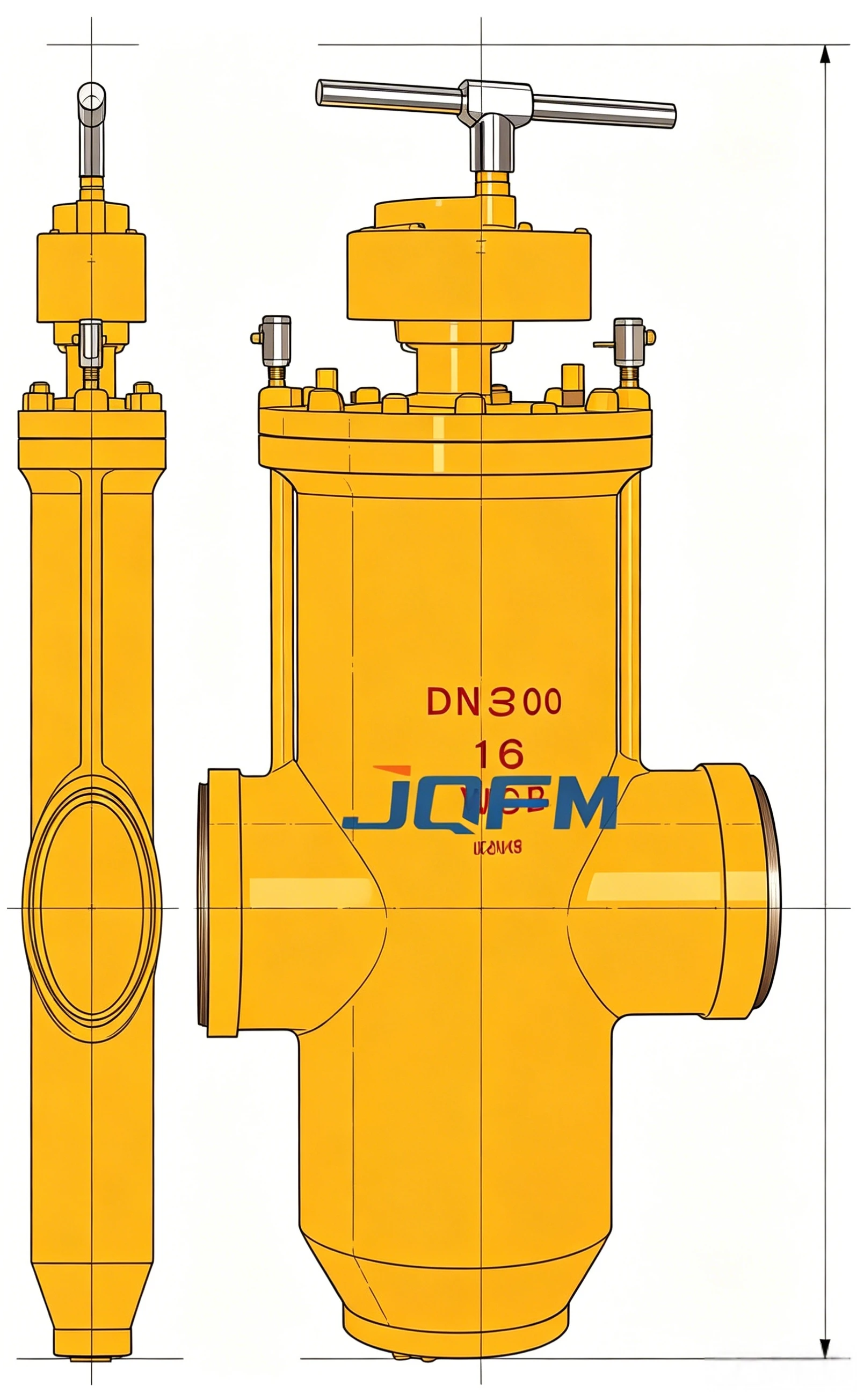

High pressure gas flat gate valve
The High Pressure Gas Flat Gate Valve is engineered for demanding gas transmission and distribution applications. Featuring a full-port slab gate design and precision-machined sealing surfaces, it ensures low pressure loss, dependable bi-directional sealing, and safe operation under high-pressure conditions. Ideal for natural gas pipelines, compressor stations, LNG facilities, and petrochemical plants.
High pressure gas flat gate valve
The High Pressure Gas Flat Gate Valve is specifically designed for natural gas and industrial gas pipeline systems operating under high pressure. Its through-conduit full-bore design minimizes flow resistance while allowing pigging operations for pipeline maintenance.
Manufactured from high-strength forged steel, carbon steel, or stainless steel materials, the valve provides exceptional pressure-bearing capability and corrosion resistance. The advanced sealing structure ensures leak-tight performance, making it suitable for critical gas transmission infrastructure.
As a professional valve manufacturer, we provide comprehensive OEM and ODM services for global gas pipeline projects.
Our High Pressure Gas Flat Gate Valves are manufactured and tested according to international standards.
High pressure gas flat gate valve
| Parameter | Specification |
|---|---|
| Product Name | High Pressure Gas Flat Gate Valve |
| Nominal Size | DN50 – DN1200 (2" – 48") |
| Pressure Rating | PN100 – PN420 |
| ANSI Class | Class 600 – Class 2500 |
| Body Material | Forged Steel, Carbon Steel, Stainless Steel |
| Gate Material | Stainless Steel, Alloy Steel |
| Seat Material | Soft Seat / Metal Seat |
| Connection Type | Flanged, Butt Welded |
| Operation | Manual, Electric, Pneumatic, Hydraulic |
| Temperature Range | -46°C to +200°C |
| Sealing Type | Bi-directional Sealing |
| Leakage Standard | API 598 / ISO 5208 Class A |
| Design Standard | API 6D, API 600, ASME B16.34 |
| Fire Safe Design | API 607 / API 6FA Optional |
| Piggable Design | Yes |
| Applicable Media | Natural Gas, LNG, LPG, Industrial Gas |
High pressure gas flat gate valve
Used in long-distance high-pressure natural gas transportation systems requiring reliable shut-off and low pressure loss.
Suitable for compressor stations, pressure regulating stations, and gas metering facilities.
Applied in LNG receiving terminals, gas storage facilities, and liquefied gas distribution systems.
Widely used in gathering systems, processing plants, and oilfield gas transmission pipelines.
Suitable for industrial gas transportation, hydrocarbon processing, and refinery utility systems.
Provides secure isolation and control for municipal natural gas transmission and distribution infrastructure.
Ideal for large-scale gas pipeline construction, energy transportation projects, and critical utility systems.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
