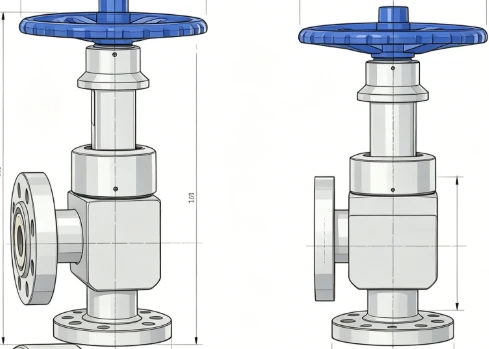

High pressure regulating angle globe valve
The High Pressure Regulating Angle Globe Valve is engineered for accurate flow regulation in high-pressure oil, gas, steam, and chemical pipelines. Its angle body minimizes flow resistance while the balanced trim reduces stem thrust, ensuring smooth operation and tight shut-off. Durable corrosion-resistant materials provide extended service life under demanding industrial conditions.
High pressure regulating angle globe valve
The High Pressure Regulating Angle Globe Valve features an angle body design for efficient flow path and pressure drop reduction. The balanced trim ensures low operating torque and precise flow control. Suitable for high-pressure, high-temperature, and corrosive media, the valve is ideal for oilfield injection, steam systems, chemical plants, and industrial pipelines.
Available materials include carbon steel, stainless steel, alloy steel, and duplex steel. Operation options include manual, electric, pneumatic, and hydraulic actuators for automation integration.
High pressure regulating angle globe valve
| Parameter | Specification |
|---|---|
| Product Name | High Pressure Regulating Angle Globe Valve |
| Nominal Size | DN15 – DN1200 (0.5" – 48") |
| Pressure Rating | PN16 – PN420 |
| ANSI Class | Class 150 – Class 2500 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel |
| Trim Material | Stainless Steel, Alloy Steel, Hardened Steel |
| Seat Material | Metal Seat / Soft Seat |
| Connection Type | Flanged, Butt Welded, Socket Weld |
| Operation | Manual, Electric, Pneumatic, Hydraulic |
| Temperature Range | -46°C to +550°C |
| Sealing Type | Bi-directional Sealing |
| Leakage Standard | API 598 / ISO 5208 Class A |
| Design Standard | API 602 / API 603, ASME B16.34 |
| Applicable Media | Oil, Gas, Steam, Water, Chemicals |
High pressure regulating angle globe valve
High-pressure flow regulation in transmission, gathering, and refinery systems.
Precise throttling in process pipelines and industrial utilities.
Steam, feedwater, and cooling water systems requiring stable pressure and flow control.
Industrial and municipal water networks needing precise regulation.
Applied in water injection, enhanced oil recovery (EOR), and high-pressure wellhead lines.
Mining, metallurgy, chemical, food & beverage, and pharmaceutical pipelines requiring accurate flow and pressure control.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
