For industrial buyers, gate valves are usually selected for pipeline isolation rather than continuous flow adjustment. A gate valve is designed to start or stop the flow of liquid or gas by moving an internal gate into or out of the flow path，it's a types of valves. When fully open, it allows media to pass with low flow resistance; when fully closed, the gate seals against the valve seat to block the pipeline.Gate valves are typically used for applications where flow control is either fully open or fully closed, rather than throttling or regulating the flow. They are commonly found in high-pressure and high-temperature systems, and in both industrial and municipal settings like water, oil, and gas pipelines.
As a China Gate Valve Manufacturer and custom valve manufacturer, Jianqiao provides gate valve options for buyers who need reliable shut-off valves for water, oil, gas, chemical, municipal, and industrial pipeline systems.
How Does a Gate Valve Work?
Gate valves work by moving a gate (which is typically a wedge or slab) into or out of the flow path. Here's the process:
1. When the Valve is Open:
The gate is lifted from the flow path, usually by turning a stem (using a wheel or handle).
Once fully opened, the gate valve has minimal obstruction to the flow, which means the fluid can pass through the valve with very little resistance.
2. When the Valve is Closed:
The gate moves down (toward the valve seat) and blocks the flow. The valve is fully closed when the gate seats tightly against both sides of the valve body.
This sealing prevents any fluid or gas from passing through.
Key Parts of a Gate Valve:
1. Body: The main housing that holds all the components and connects the valve to the pipeline.
2. Gate (or Disc): The movable part that blocks or allows the flow of fluid. It is usually shaped like a wedge or a flat slab.
3. Stem: A shaft that connects the actuator (like a handle or wheel) to the gate. Turning the actuator moves the stem, which in turn raises or lowers the gate.
4. Seat: The surface that the gate seals against when the valve is closed. This ensures no leakage when the valve is in the closed position.
5. Actuator: A mechanism (like a wheel, hand lever, or electric motor) used to turn the stem, moving the gate up or down.
Applications of China Gate Valve
- Water supply and drainage pipelines
Used for opening or closing water flow in municipal, industrial, or building pipeline systems. - Oil pipeline systems
Suitable for pipeline isolation where stable shut-off performance and full-flow passage are required. - Gas pipeline systems
Applied in gas transmission or distribution lines where sealing performance and safe shut-off are important. - Chemical processing pipelines
Used when the valve material and sealing structure must match specific chemical media. - High-pressure systems
Suitable for projects where the valve must withstand higher pipeline pressure during operation. - High-temperature systems
Used in working conditions where temperature resistance and sealing reliability are key concerns. - Automated pipeline systems

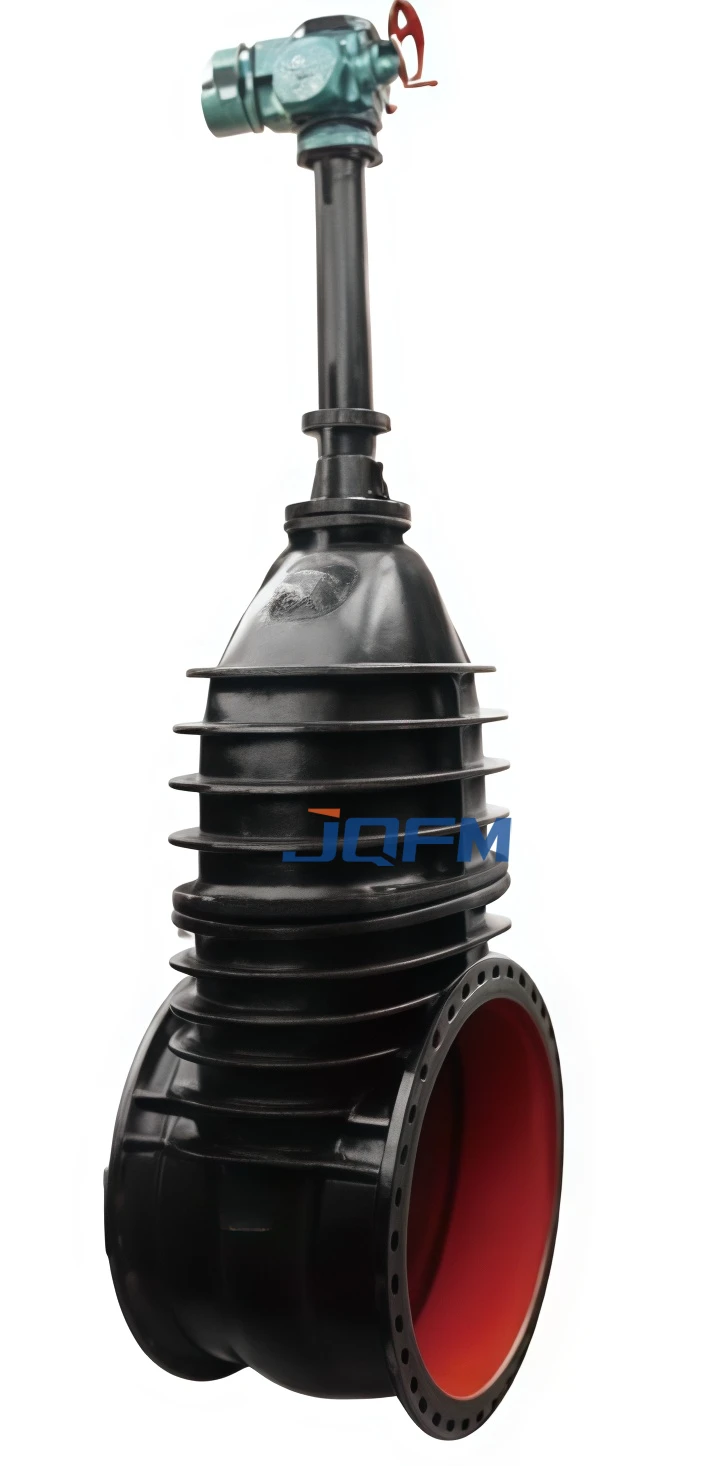

Electric or pneumatic gate valves can be selected when manual operation is inconvenient or remote control is required. - Municipal and industrial engineering projects
Suitable for pipeline sections that require periodic isolation for maintenance, inspection, or system control.
Key Points to Confirm Before Purchase
- Medium type
Confirm whether the pipeline carries water, oil, gas, steam, chemical liquid, corrosive media, or other fluids. - Valve function
Gate valves are more suitable for full-open and full-close service. They should not be selected as the first choice for frequent throttling or precise flow regulation. - Pressure requirement
Confirm the required pressure class, such as PN rating, Class rating, or project-specified pressure standard. - Temperature condition
Check whether the valve will be used in normal temperature, high-temperature, low-temperature, or fluctuating-temperature environments. - Valve material
Select suitable body and internal materials according to corrosion resistance, mechanical strength, and media compatibility. - Sealing requirement
Confirm whether the project requires resilient sealing, metal sealing, special stem sealing, or leakage-control design. - Connection standard
Check the required flange, threaded, welded, ANSI, API, DIN, or other project connection standard before ordering. - Operation method
Confirm whether the valve should be manually operated, gear-operated, electric, or pneumatic. - Installation environment
Consider whether the valve will be installed indoors, outdoors, underground, in a dusty area, in a corrosive environment, or in a space-limited pipeline section. - Customization needs
For special working conditions, buyers can confirm material customization, structural optimization, and interface standard adaptation. The supplier’s service information includes examples such as 316L stainless steel valve customization for acidic media, double-bellows stem sealing for high-temperature dusty environments, and API 600 valves adapted to ANSI B16.5 flange dimensions. - Quality and documentation
For engineering procurement, ask whether drawings, inspection documents, certificates, and compliance information can be provided according to project requirements. The supplier states that quality control covers the process from raw materials to production and lists certifications such as ISO 9001, ISO 14001, OHSAS 18001, TS, CCC, UL, FM, CE, ABS, and API.
