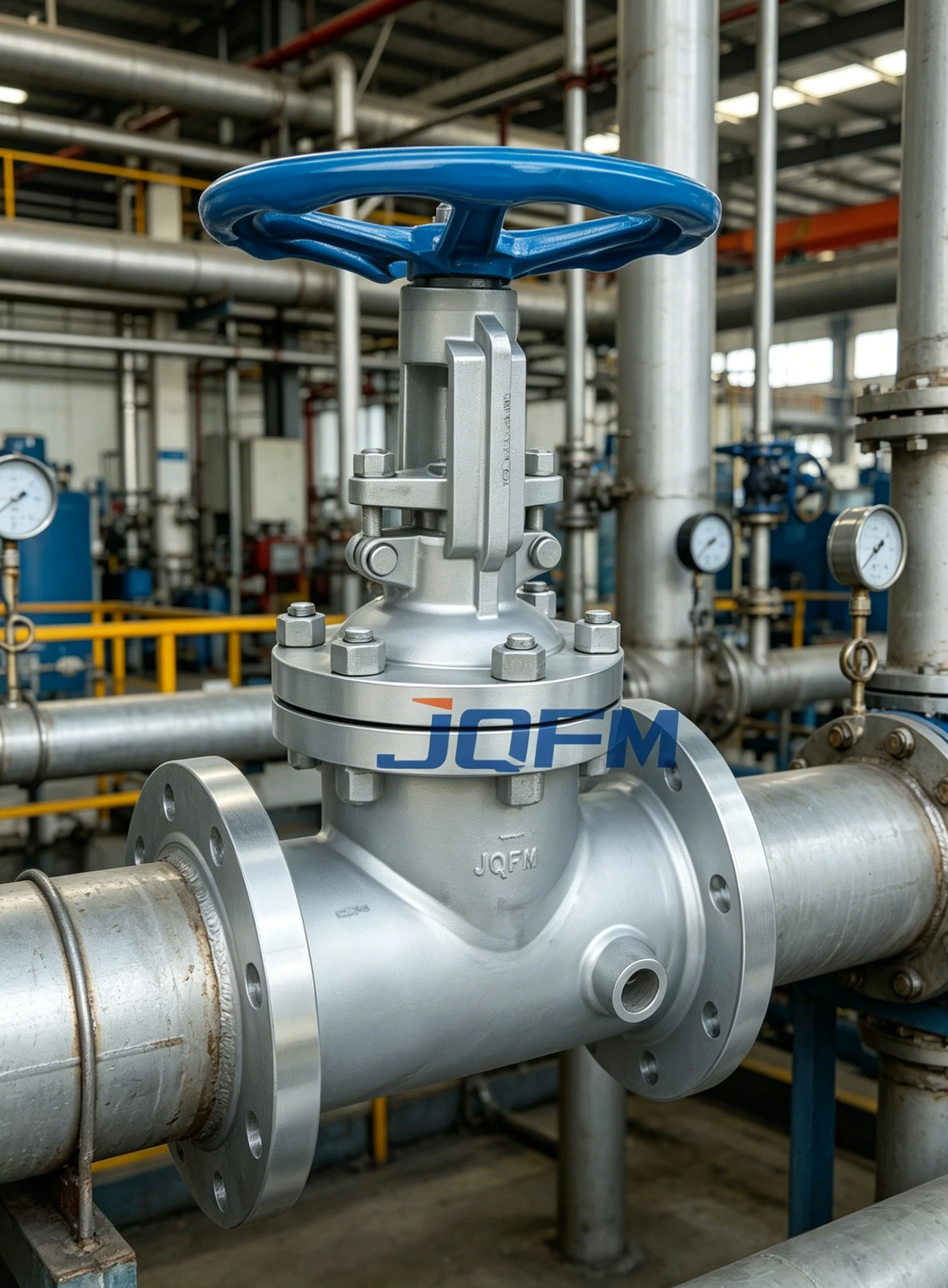

Insulation gate valve
The insulation gate valve features an integrated thermal jacket surrounding the valve body, preventing medium solidification and temperature loss. Designed for high-viscosity and temperature-sensitive fluids, it provides reliable sealing, smooth flow control, and enhanced energy efficiency in steam, thermal oil, asphalt, chemical, and industrial processing systems.
Insulation gate valve
The Insulation Gate Valve, also known as a Jacketed Gate Valve, is specially designed for pipelines carrying media that require temperature maintenance during operation. The valve body is equipped with an external insulation jacket through which steam, thermal oil, hot water, or other heating media circulate to prevent solidification, crystallization, or viscosity changes.
Featuring a full-port gate design, the valve ensures minimal pressure loss and reliable shut-off performance. Manufactured from high-quality carbon steel, stainless steel, and alloy steel materials, insulation gate valves provide excellent durability and corrosion resistance under demanding operating conditions.
These valves are widely used in chemical processing, petrochemical plants, asphalt production, food processing, pharmaceutical manufacturing, and other industries where maintaining media temperature is critical.
As a professional industrial valve manufacturer, we offer complete OEM and ODM services.
All insulation gate valves are manufactured and tested according to international quality standards.

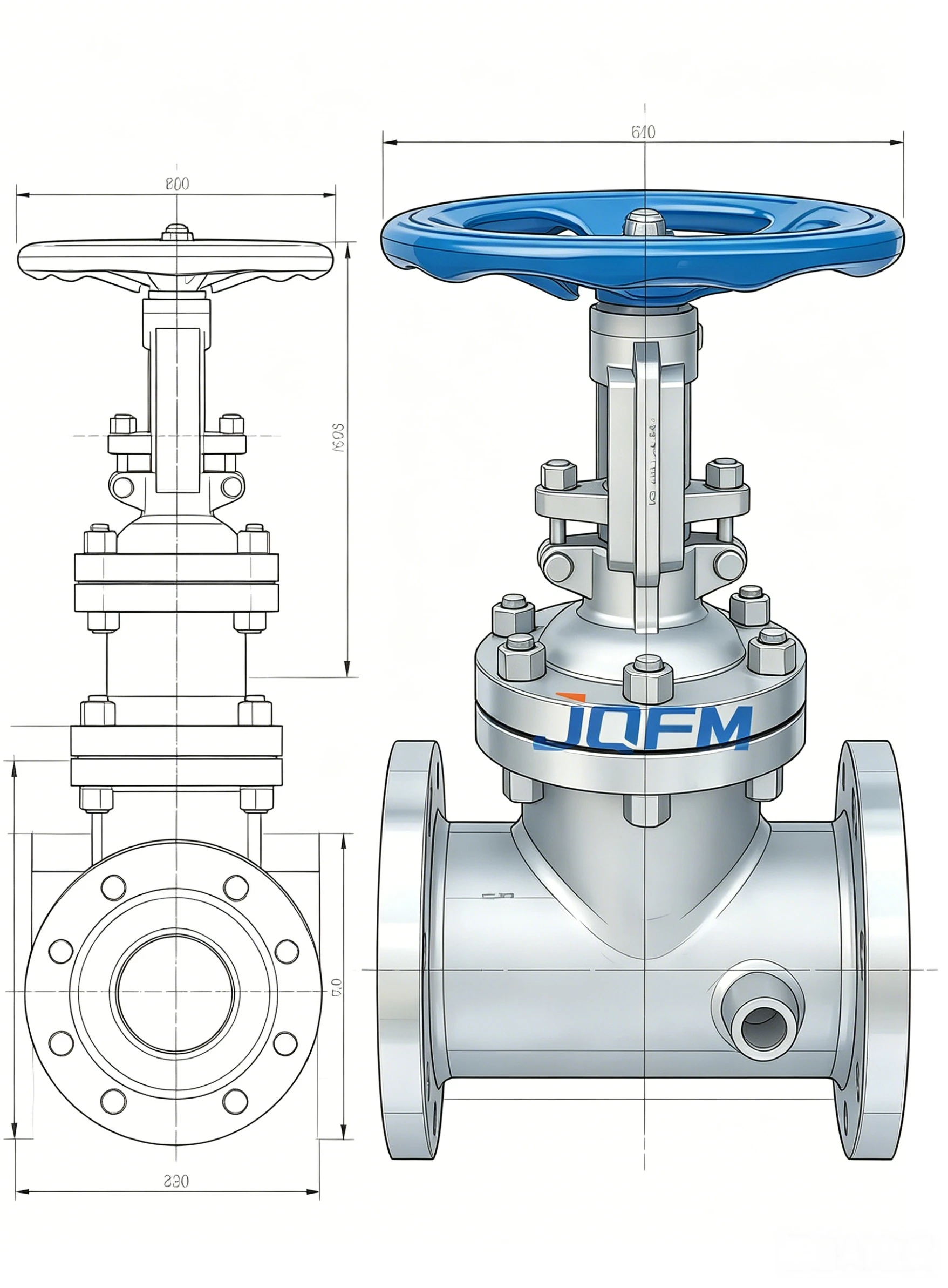

Insulation gate valve
| Parameter | Specification |
|---|---|
| Product Name | Insulation Gate Valve |
| Valve Type | Jacketed Gate Valve |
| Size Range | DN15–DN600 (1/2"–24") |
| Pressure Rating | PN16, PN25, PN40 |
| ANSI Class | Class 150, 300 |
| Body Material | WCB, CF8, CF8M, Alloy Steel |
| Gate Material | Stainless Steel |
| Stem Material | SS304, SS316 |
| Jacket Material | Carbon Steel / Stainless Steel |
| Heating Medium | Steam, Thermal Oil, Hot Water |
| Connection Type | Flanged, Butt Weld, Threaded |
| Operation Type | Handwheel, Gear, Electric, Pneumatic |
| Seat Type | Metal Seat / Soft Seat |
| Temperature Range | -29°C to +425°C |
| Design Standard | API 600, ASME B16.34 |
| Testing Standard | API 598 |
| Leakage Class | ANSI Class VI |
| Applicable Media | Asphalt, Bitumen, Thermal Oil, Resin, Chemicals |
| Insulation Structure | Full Body Jacket |
Insulation gate valve
Bitumen transportation systems, asphalt storage tanks, road construction plants.
Heavy oil pipelines, wax media systems, thermal process applications.
High-viscosity fluid transportation, crystallizing media handling systems.
Heat transfer fluid pipelines, industrial heating systems.
Chocolate processing, syrup transportation, edible oil systems.
Temperature-sensitive process fluids and specialty chemical transportation.
Resin transfer systems, polymer processing facilities, chemical reactors.
Steam-assisted process pipelines and heat preservation applications.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
