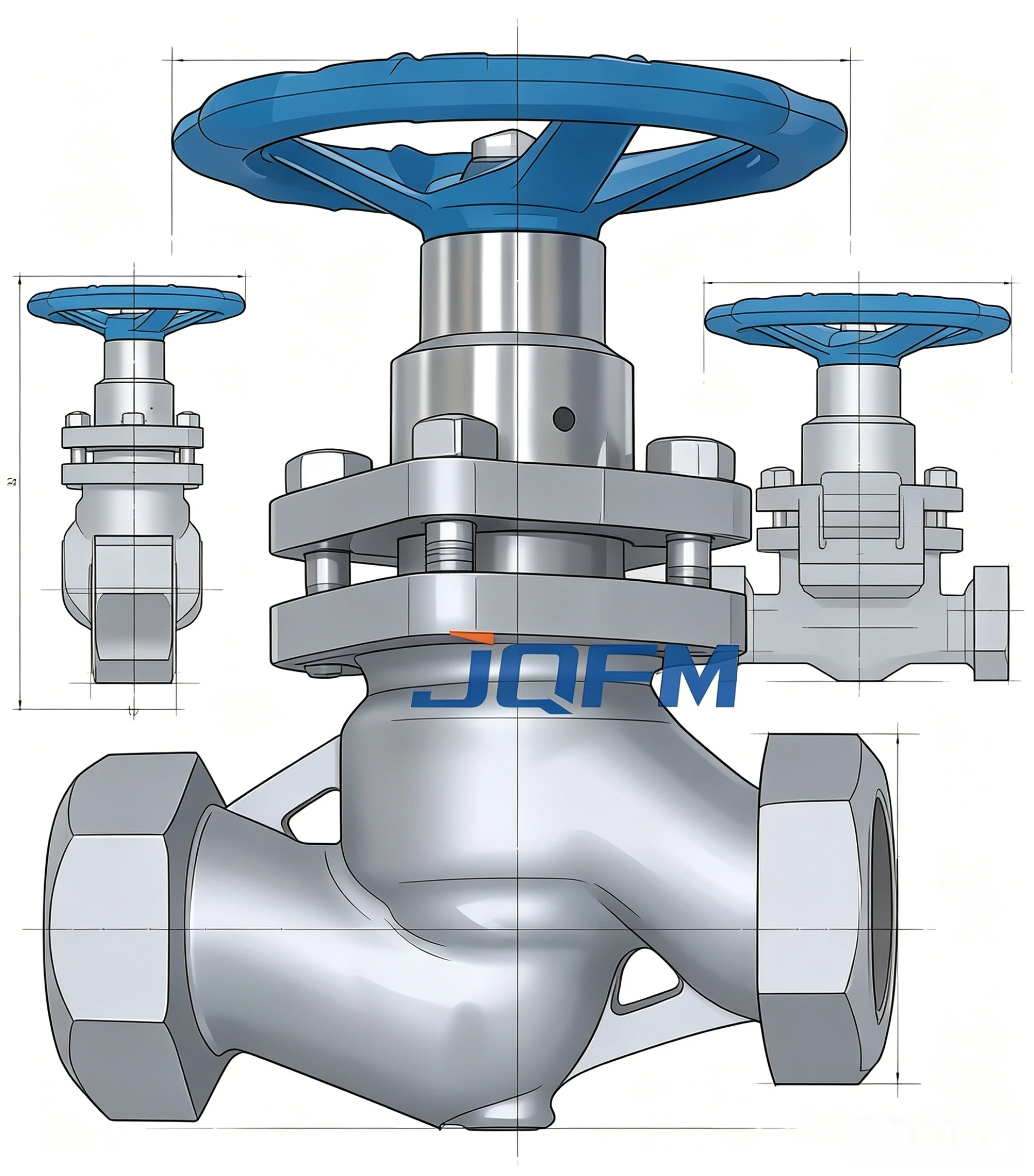

Internal thread plunger valve
The Internal Thread Plunger Valve is designed for industrial applications with small-diameter pipelines, requiring tight shut-off and accurate flow regulation. Its plunger-style disc ensures minimal leakage and smooth operation. Threaded connections allow easy installation and maintenance. Suitable for water, oil, gas, chemicals, and laboratory or process lines.

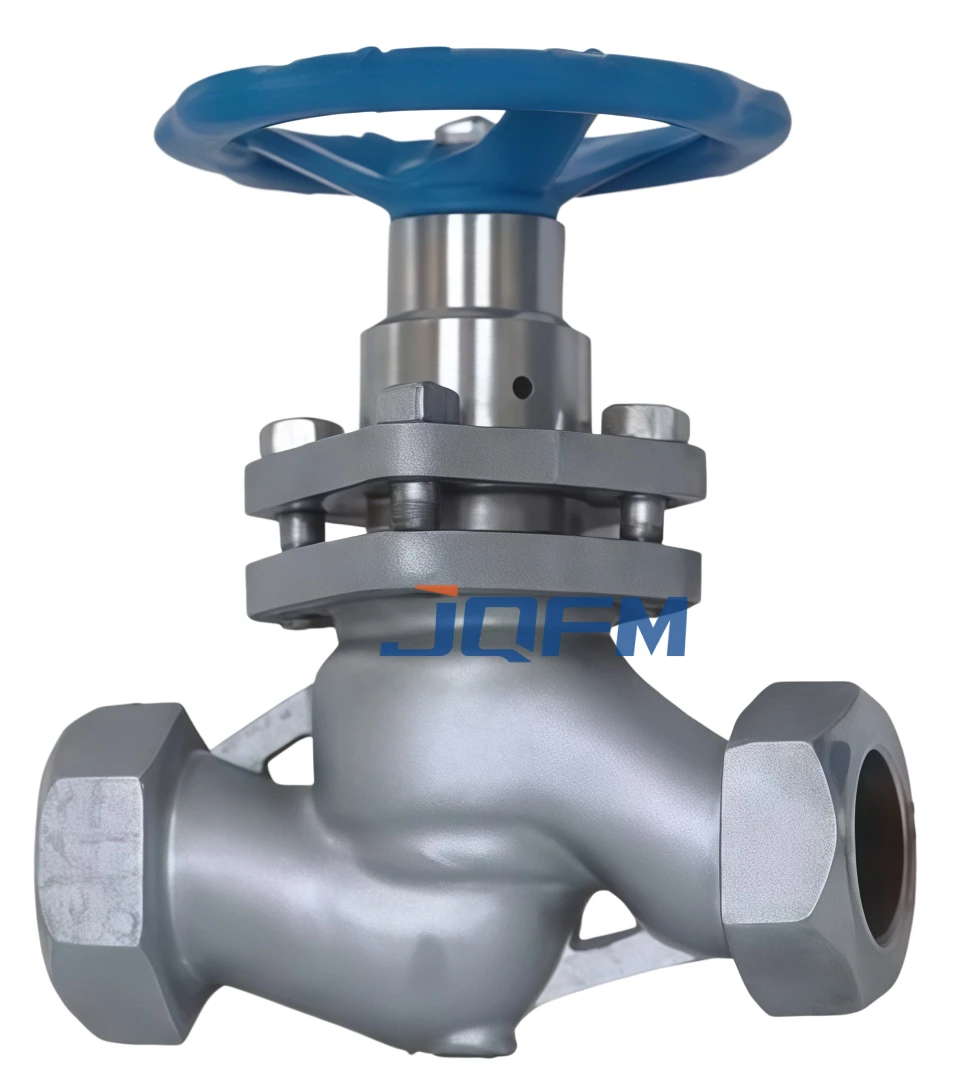

Internal thread plunger valve
The Internal Thread Plunger Valve utilizes a compact plunger disc design for precise throttling and reliable isolation in small-diameter pipelines. Threaded connections enable quick installation without flanges or welding, making it ideal for chemical, petrochemical, water, and gas distribution systems.
Manufactured from high-strength stainless steel or alloy materials, the valve ensures corrosion and wear resistance. It supports manual handwheel operation, and can be adapted for pneumatic or electric actuation in specialized applications.
Internal Thread Plunger Valves meet international quality and safety standards:
Internal thread plunger valve
| Parameter | Specification |
|---|---|
| Product Name | Internal Thread Plunger Valve |
| Nominal Size | DN8 – DN100 (¼" – 4") |
| Pressure Rating | PN10 – PN63 |
| Body Material | Stainless Steel 304 / 316, Carbon Steel, Brass, Alloy Steel |
| Disc Material | Stainless Steel, Alloy Steel, Hardfaced Steel |
| Seat Material | Metal Seat / PTFE / NBR / EPDM |
| Connection Type | Internal Thread (BSPT, NPT, ISO 7/1) |
| Operation | Manual Handwheel / Pneumatic / Electric Actuator |
| Temperature Range | -20°C to +200°C |
| Leakage Standard | API 598 |
| Design Standard | API 602 / API 623 / ISO 14313 |
| Applicable Media | Water, Oil, Gas, Chemicals, Laboratory Fluids |
Internal thread plunger valve
Small-diameter chemical piping, corrosive fluid handling, laboratory connections.
Metering lines, sampling lines, and process piping.
Process control, potable water, and wastewater pipelines.
Precision throttling and isolation in small pipeline networks.
Safe and accurate flow control for experimental systems.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
