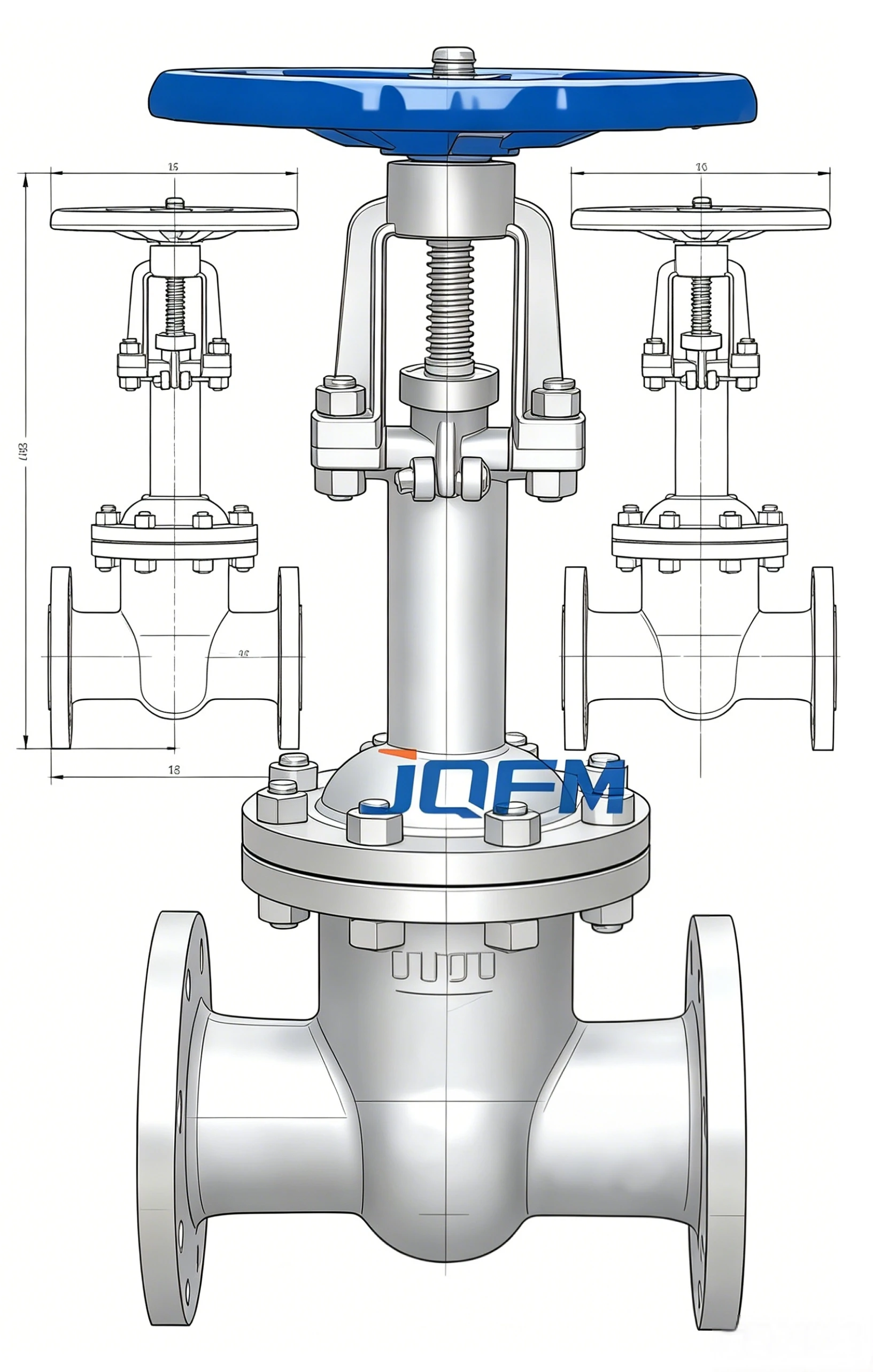

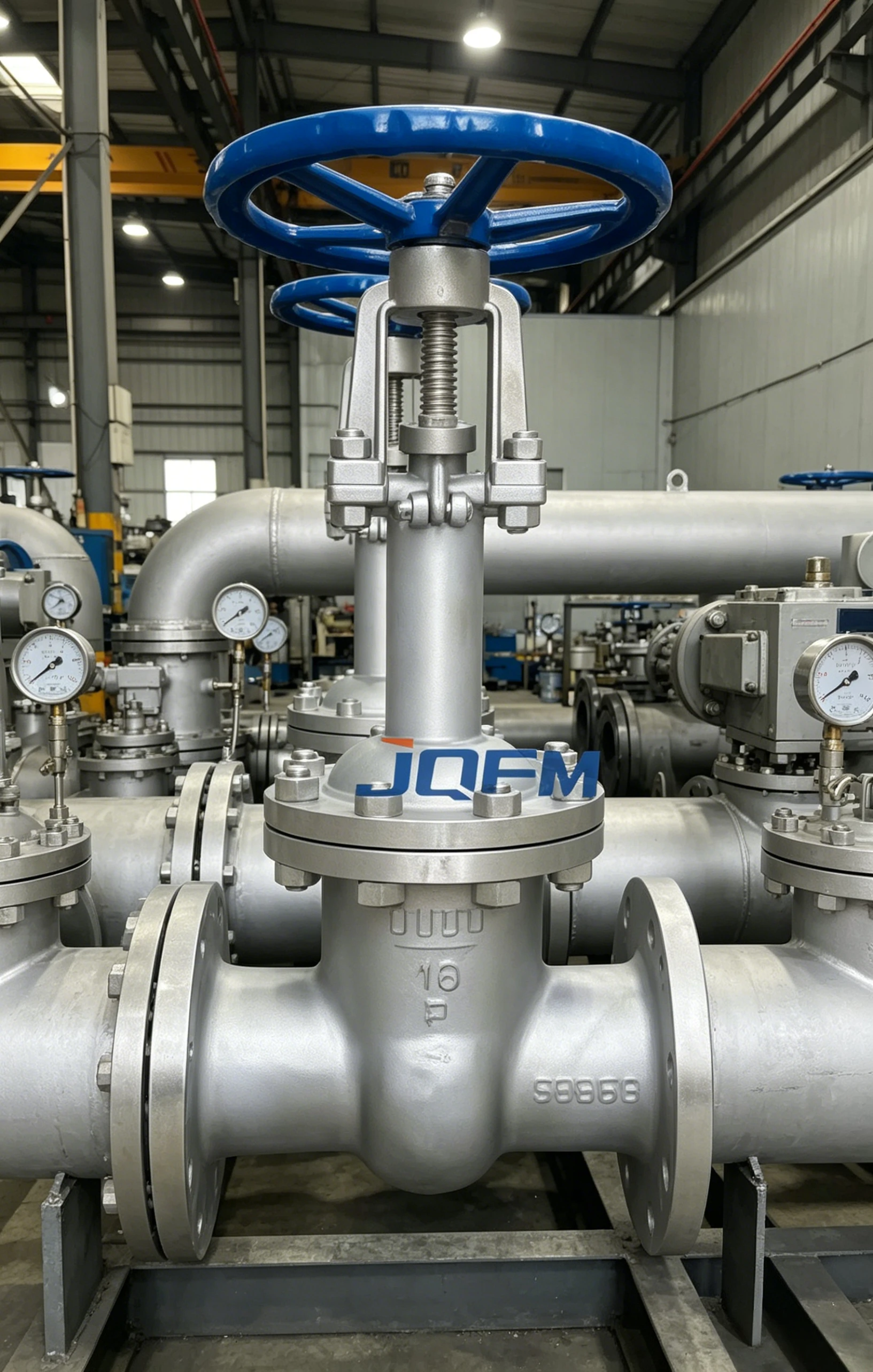

Low temperature gate valve
The Low Temperature Gate Valve features an extended bonnet design that protects stem sealing components from cryogenic temperatures. Manufactured from premium low-temperature resistant materials, it offers excellent sealing performance, low operating torque, long service life, and compliance with international standards for LNG, LPG, and industrial gas applications.
Low Temperature Gate Valve
Low Temperature Gate Valves are specially engineered for cryogenic and ultra-low temperature services down to -196°C. Designed according to API 600 and BS 6364 standards, these valves ensure tight shut-off, operational reliability, and maximum safety under severe operating conditions.
The extended bonnet structure minimizes heat transfer and protects packing materials from low temperatures. Available in multiple pressure classes, materials, and connection types, these valves are ideal for LNG terminals, gas processing facilities, petrochemical plants, and cryogenic storage systems.
As a professional valve manufacturer, we provide complete OEM and ODM solutions for global distributors, EPC contractors, and industrial projects.
Our products are manufactured under strict quality management systems and comply with international valve industry standards.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Name | Low Temperature Gate Valve |
| Valve Type | Cryogenic Gate Valve |
| Size Range | DN15 – DN600 (1/2" – 24") |
| Pressure Rating | Class 150 – Class 2500 |
| Operating Temperature | -196°C to +80°C |
| Body Material | Stainless Steel, LF2, F304, F316, F304L, F316L |
| Trim Material | Stainless Steel, Hard Facing Alloy |
| Seat Type | Soft Seat / Metal Seat |
| Connection Type | Flanged, Butt Weld, Socket Weld |
| Flange Standard | ANSI, ASME, DIN, EN, JIS, GOST |
| Bonnet Design | Extended Cryogenic Bonnet |
| Operation | Manual, Gear, Pneumatic, Electric |
| Leakage Standard | API 598 |
| Design Standard | API 600, BS 6364 |
| Testing Standard | API 598, BS 6364 |
| Applicable Media | LNG, LPG, LOX, LIN, Liquid Hydrogen, Cryogenic Fluids |
Functional Advantages
Industry Applications
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
