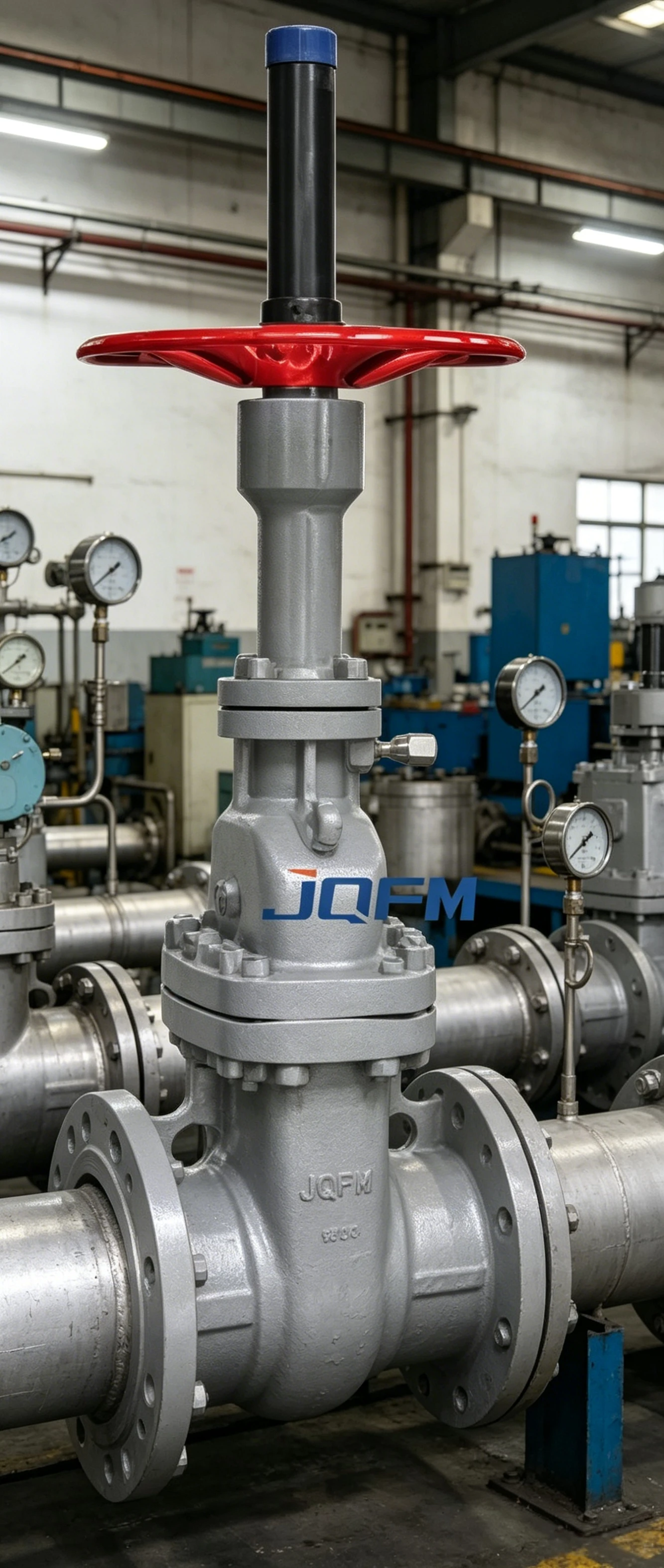

Non-diversion flat gate valve
The Non-Diversion Flat Gate Valve is designed for straight-through flow systems requiring full shut-off without bypass channels. Its flat gate structure provides minimal pressure drop, smooth operation, and durable sealing. Suitable for water, steam, oil, and chemical pipelines, it offers low maintenance, high reliability, and integration with automation systems.

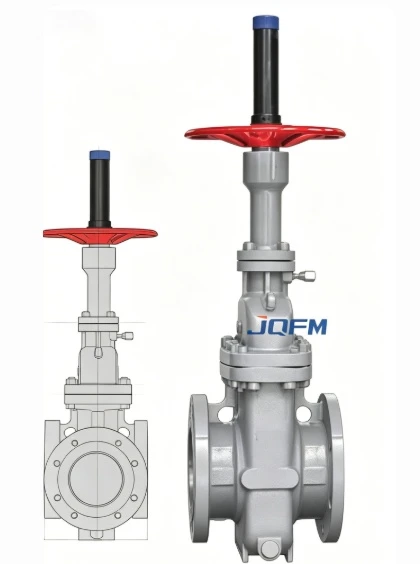

Non-diversion flat gate valve
The Non-Diversion Flat Gate Valve is a high-performance isolation valve designed for pipelines where a straight, unobstructed flow path is required. Unlike diversion-type valves, it does not have a pressure-balancing or bypass hole, making it ideal for applications requiring direct flow without turbulence.
Constructed from carbon steel, stainless steel, or alloy steel, it provides excellent mechanical strength, corrosion resistance, and bi-directional sealing. The valve can be operated manually, electrically, pneumatically, or hydraulically and is compatible with automated control systems.
Key Features:
Non-diversion flat gate valve
| Parameter | Specification |
|---|---|
| Product Name | Non-Diversion Flat Gate Valve |
| Nominal Size | DN50 – DN1200 (2" – 48") |
| Pressure Rating | PN10 – PN420 / Class 150–2500 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Forged Steel |
| Gate Material | Stainless Steel, Alloy Steel, Duplex Steel |
| Seat Material | Metal Seat / Soft Seat |
| Connection Type | Flanged, Butt Welded, Socket Weld |
| Operation | Manual, Electric, Pneumatic, Hydraulic |
| Temperature Range | -29°C to +550°C |
| Sealing Type | Bi-directional Sealing |
| Leakage Standard | ISO 5208 Class A / API 598 |
| Design Standard | API 600, API 6D, ASME B16.34 |
| Applicable Media | Water, Oil, Gas, Steam, Chemicals |
Non-diversion flat gate valve
Suitable for straight-through pipelines, refinery systems, and high-pressure transmission lines requiring precise shut-off.
Used in chemical processing, high-temperature and high-pressure process lines without flow bypass.
Applied in feedwater, steam, and cooling systems requiring reliable isolation and minimal pressure drop.
Ideal for potable water pipelines, wastewater treatment, and pumping stations.
Used in chemical plants, food & beverage, textile, and industrial pipelines requiring full isolation without diversion.
Compatible with SCADA and DCS systems for remote control in automated industrial pipelines.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
