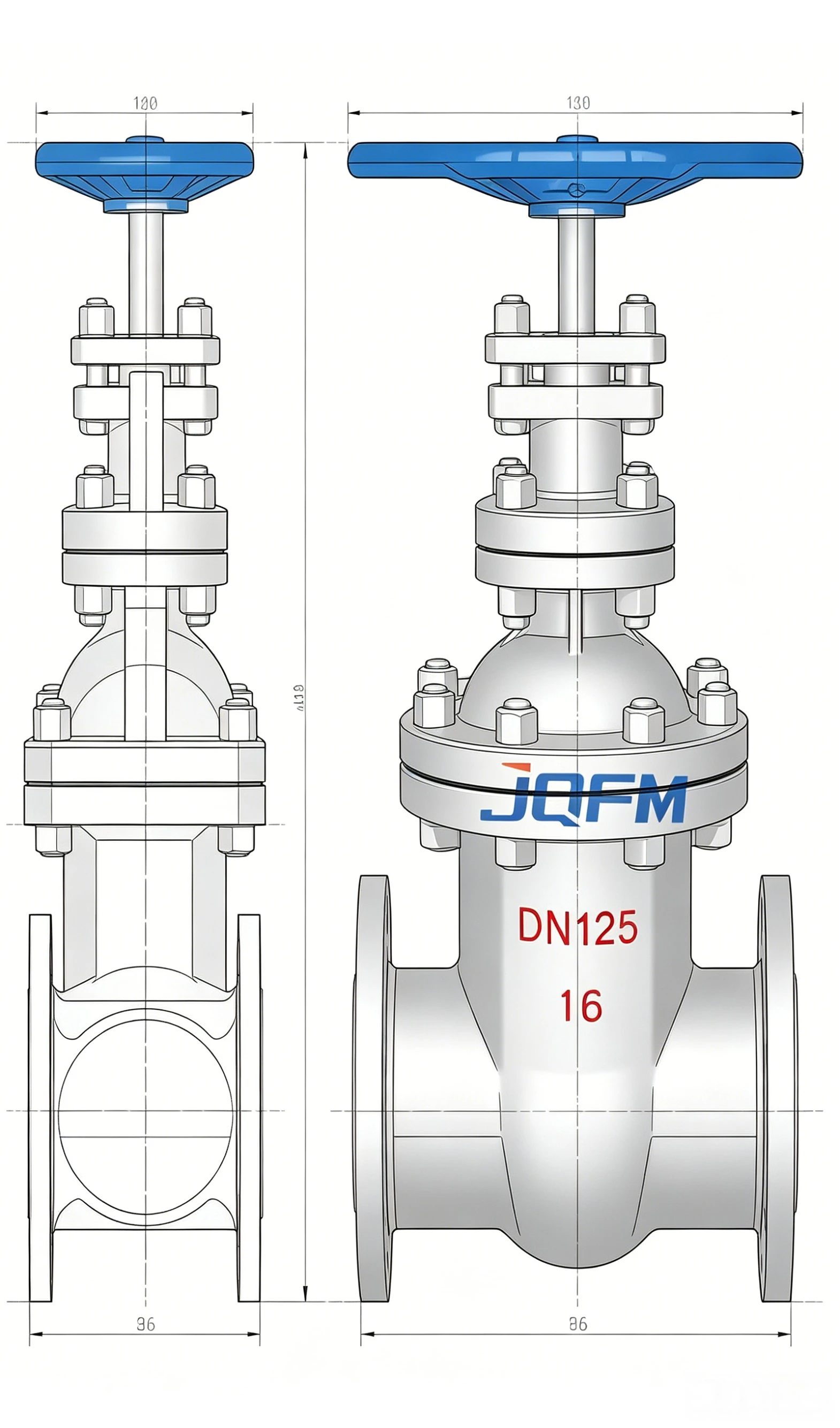

Non rising stem gate valve
The non rising stem gate valve features an internal stem design that eliminates vertical stem movement during operation, making it ideal for confined installations. It offers low flow resistance, dependable shut-off performance, corrosion resistance, and reduced maintenance requirements for water, oil, gas, and industrial fluid applications.

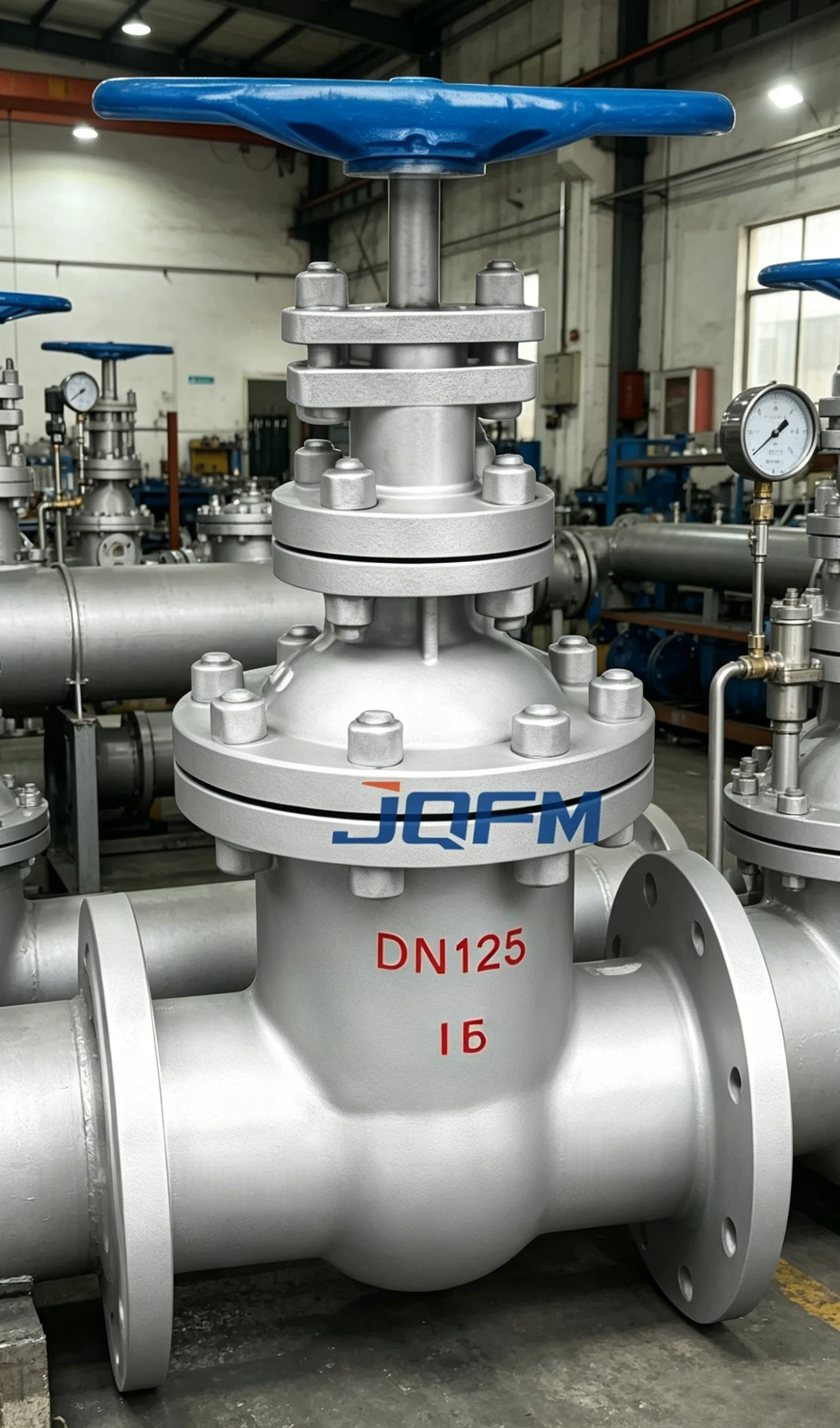

Non rising stem gate valve
The Non Rising Stem Gate Valve is designed for applications where installation space is limited and reliable flow isolation is required. Unlike rising stem valves, the stem rotates internally without extending above the handwheel, making it suitable for underground installations, water distribution systems, and compact industrial facilities.
Manufactured from high-quality carbon steel, ductile iron, stainless steel, and alloy steel materials, these valves provide excellent mechanical strength, sealing reliability, and corrosion resistance. The full-port design ensures minimal pressure loss and efficient fluid flow.
Non rising stem gate valves are widely used in municipal water supply networks, wastewater treatment facilities, fire protection systems, oil and gas pipelines, and industrial process applications.
As a professional valve manufacturer, we offer complete OEM and ODM solutions.
All non rising stem gate valves are manufactured and tested according to international quality standards.
Non rising stem gate valve
| Parameter | Specification |
|---|---|
| Product Name | Non Rising Stem Gate Valve |
| Valve Type | Non Rising Stem (NRS) Gate Valve |
| Size Range | DN50–DN1200 (2"–48") |
| Pressure Rating | PN10, PN16, PN25, PN40 |
| ANSI Class | 125, 150, 300 |
| Body Material | Ductile Iron, Cast Iron, Carbon Steel, Stainless Steel |
| Disc Material | Ductile Iron / Stainless Steel |
| Stem Material | Stainless Steel SS304 / SS316 |
| Seat Type | Soft Seat / Metal Seat |
| Connection Type | Flanged, Mechanical Joint |
| Operation Type | Handwheel, Gear, Electric, Pneumatic |
| Coating | Epoxy Coating (FBE) |
| Temperature Range | -10°C to +120°C (Soft Seat) |
| Design Standard | AWWA C509, AWWA C515, DIN, BS |
| Testing Standard | API 598, EN 12266 |
| Leakage Standard | Zero Leakage Available |
| Applicable Media | Water, Wastewater, Oil, Gas |
| Installation Type | Underground / Indoor / Outdoor |
| Corrosion Protection | Available |
Non rising stem gate valve
Water transmission pipelines, distribution networks, pumping stations.
Sewage systems, drainage networks, treatment facilities.
Firefighting pipelines, hydrant networks, sprinkler systems.
Utility pipelines, storage terminals, non-critical process systems.
Agricultural water distribution, reservoir management, canal networks.
General process pipelines, cooling water systems, utility services.
Underground pipeline networks, municipal engineering projects.
Cooling water circulation systems and auxiliary service pipelines.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
