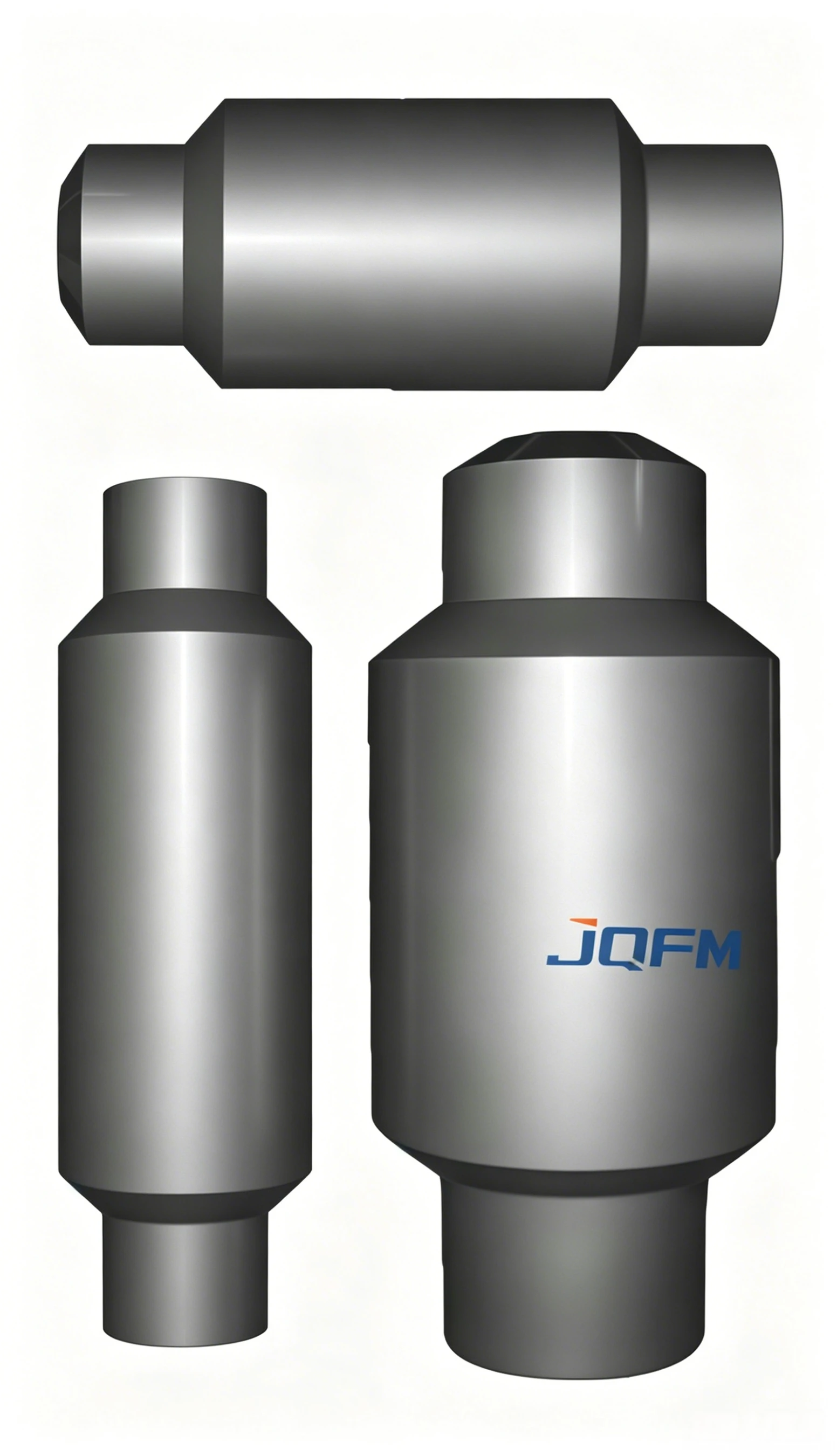

Oilfield ultra high pressure check valve
The Oilfield Ultra High Pressure Check Valve is specifically designed for oilfield injection, fracturing, cementing, and production systems. Engineered to withstand ultra-high pressures, it automatically prevents reverse flow and protects pumps, pipelines, and wellhead equipment. High-strength forged materials and precision sealing ensure long-term reliability in harsh operating environments.
Oilfield ultra high pressure check valve
The Oilfield Ultra High Pressure Check Valve is a critical safety component for high-pressure oilfield operations. Designed to automatically allow forward flow and prevent reverse flow, it protects valuable equipment from pressure surges and backflow damage.
Manufactured from premium forged steel and alloy materials, the valve offers exceptional pressure resistance, wear resistance, and corrosion protection. Its compact design and fast-closing mechanism make it ideal for hydraulic fracturing, water injection, cementing, well testing, and oil & gas production systems.
Our Oilfield Ultra High Pressure Check Valves are manufactured and tested according to international quality and oilfield standards.
Oilfield ultra high pressure check valve
| Parameter | Specification |
|---|---|
| Product Name | Oilfield Ultra High Pressure Check Valve |
| Nominal Size | DN15 – DN300 (1/2" – 12") |
| Pressure Rating | 5,000 – 20,000 PSI |
| API Pressure Class | 5K, 10K, 15K, 20K PSI |
| Body Material | Forged Carbon Steel, Alloy Steel, Stainless Steel |
| Disc Material | Stainless Steel, Tungsten Carbide Coated Alloy |
| Seat Material | Metal Seat / Metal-to-Metal Seal |
| Connection Type | Threaded, Hammer Union, Flanged, Welded |
| Operation | Automatic |
| Temperature Range | -46°C to +250°C |
| Sealing Type | Soft Seal / Metal Seal |
| Design Standard | API 6A, API 16C, ASME B16.34 |
| Testing Standard | API 598, API 6A PR2 |
| Applicable Media | Crude Oil, Natural Gas, Fracturing Fluid, Water, Mud |
Oilfield ultra high pressure check valve
Provides reliable backflow prevention in high-pressure fracturing manifolds, pumps, and fluid delivery systems.
Protects injection pumps and pipelines from reverse flow during enhanced oil recovery (EOR) operations.
Prevents backflow during well cementing operations and maintains system integrity.
Used in production and testing equipment to ensure one-way flow and pressure safety.
Essential for pressure control and flow management in drilling and well intervention operations.
Suitable for gathering systems, processing plants, and high-pressure transmission equipment.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
