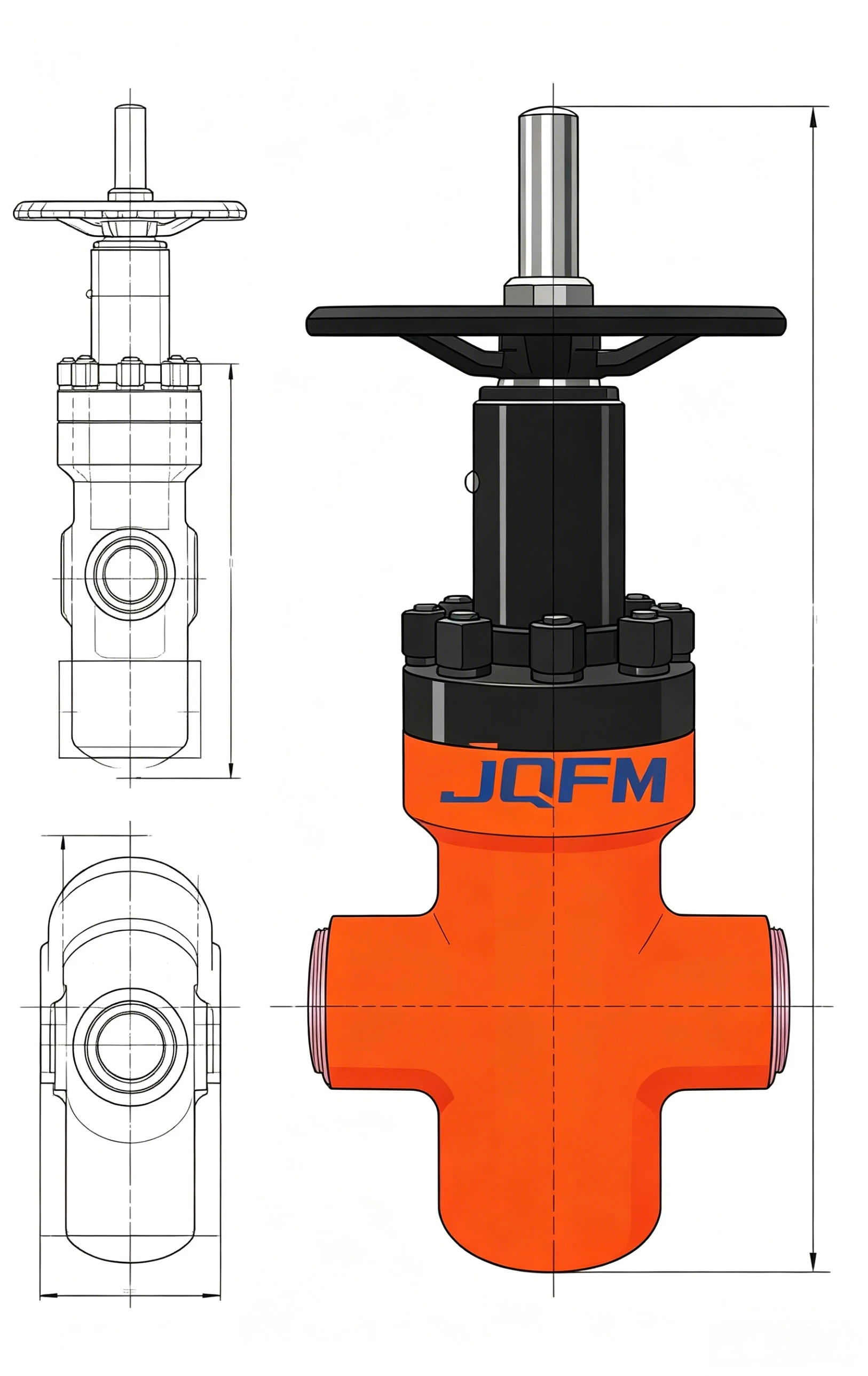

Parallel gate valve
The Parallel Gate Valve is engineered for pipelines requiring precise flow control and leak-proof shut-off. Its parallel gate structure ensures tight sealing, reduced operating torque, and uniform pressure distribution. Suitable for water, oil, gas, steam, and chemical media, it delivers stable performance, low maintenance, and extended service life in demanding industrial applications.
Parallel gate valve
Parallel Gate Valve features a full-bore, parallel-sliding gate design that offers reliable bi-directional sealing. Its flat and parallel gate ensures uniform load distribution and minimizes wear on seats, making it ideal for high-pressure and high-temperature applications.
Constructed from carbon steel, stainless steel, alloy steel, or forged steel, the valve offers excellent strength and corrosion resistance. Manual, electric, pneumatic, or hydraulic actuators can be integrated for automated control.
Parallel gate valve
| Parameter | Specification |
|---|---|
| Product Name | Parallel Gate Valve |
| Nominal Size | DN50 – DN1200 (2" – 48") |
| Pressure Rating | PN10 – PN420 |
| ANSI Class | Class 150 – Class 2500 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Forged Steel |
| Gate Material | Stainless Steel, Alloy Steel, Duplex Steel |
| Seat Material | Soft Seat / Metal Seat |
| Connection Type | Flanged, Butt Welded |
| Operation | Manual, Electric, Pneumatic, Hydraulic |
| Temperature Range | -46°C to +550°C |
| Sealing Type | Bi-directional Sealing |
| Leakage Standard | API 598 / ISO 5208 Class A |
| Design Standard | API 6D, API 600, ASME B16.34 |
| Applicable Media | Water, Oil, Gas, Steam, Chemicals |
Parallel gate valve
Used in transmission, gathering, and refinery systems for reliable isolation and pressure control.
Applied in chemical processing units, industrial fluid pipelines, and refinery utilities.
Suitable for municipal water supply, industrial water networks, and pumping stations.
Used in boiler feedwater, cooling water, and high-pressure steam systems.
Ideal for mining, metallurgy, chemical plants, and other industrial fluid pipelines.
Supports SCADA/DCS systems for automated pipeline control.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
