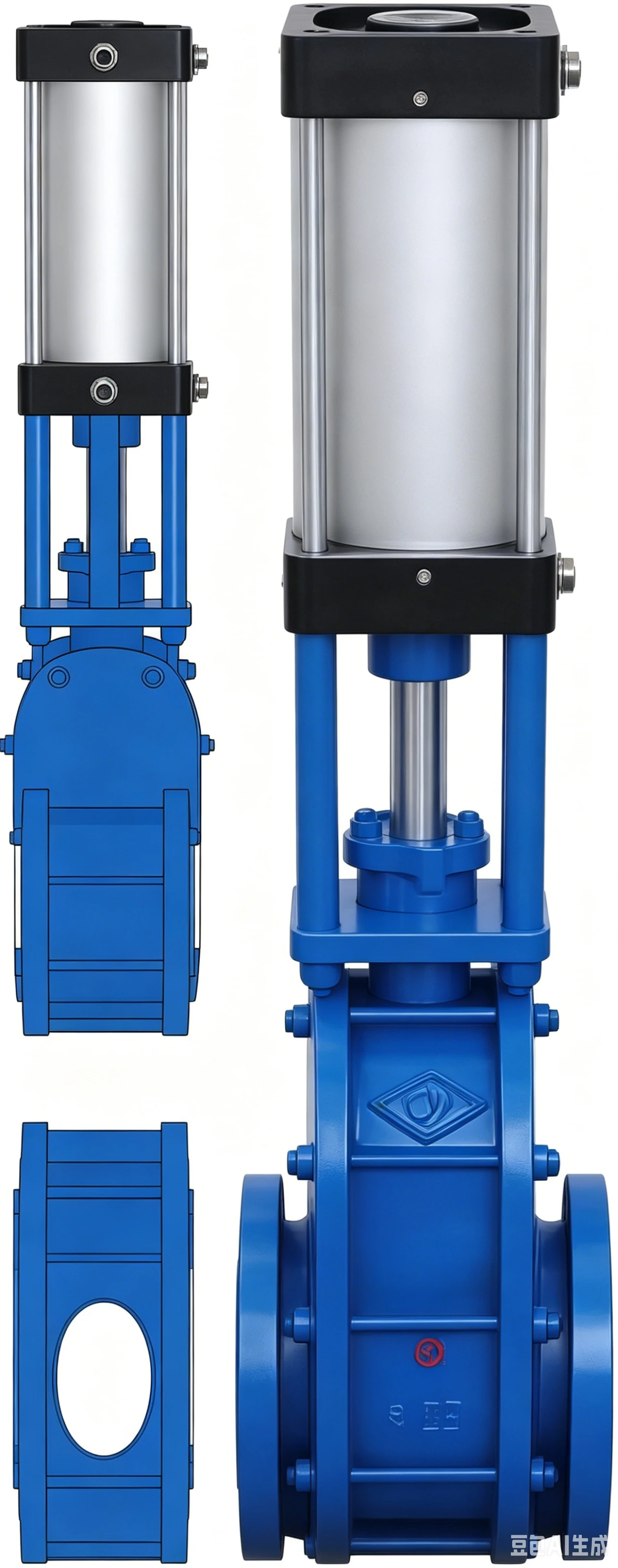

Pneumatic ceramic double gate valve
The Pneumatic Ceramic Double Gate Valve is specifically designed for severe-service applications involving fly ash, coal powder, slurry, and abrasive particles. Its double-gate structure combined with high-performance ceramic sealing components provides excellent wear resistance, zero leakage performance, and automated operation. Pneumatic actuation ensures fast response, reduced maintenance, and reliable performance in demanding industrial environments.

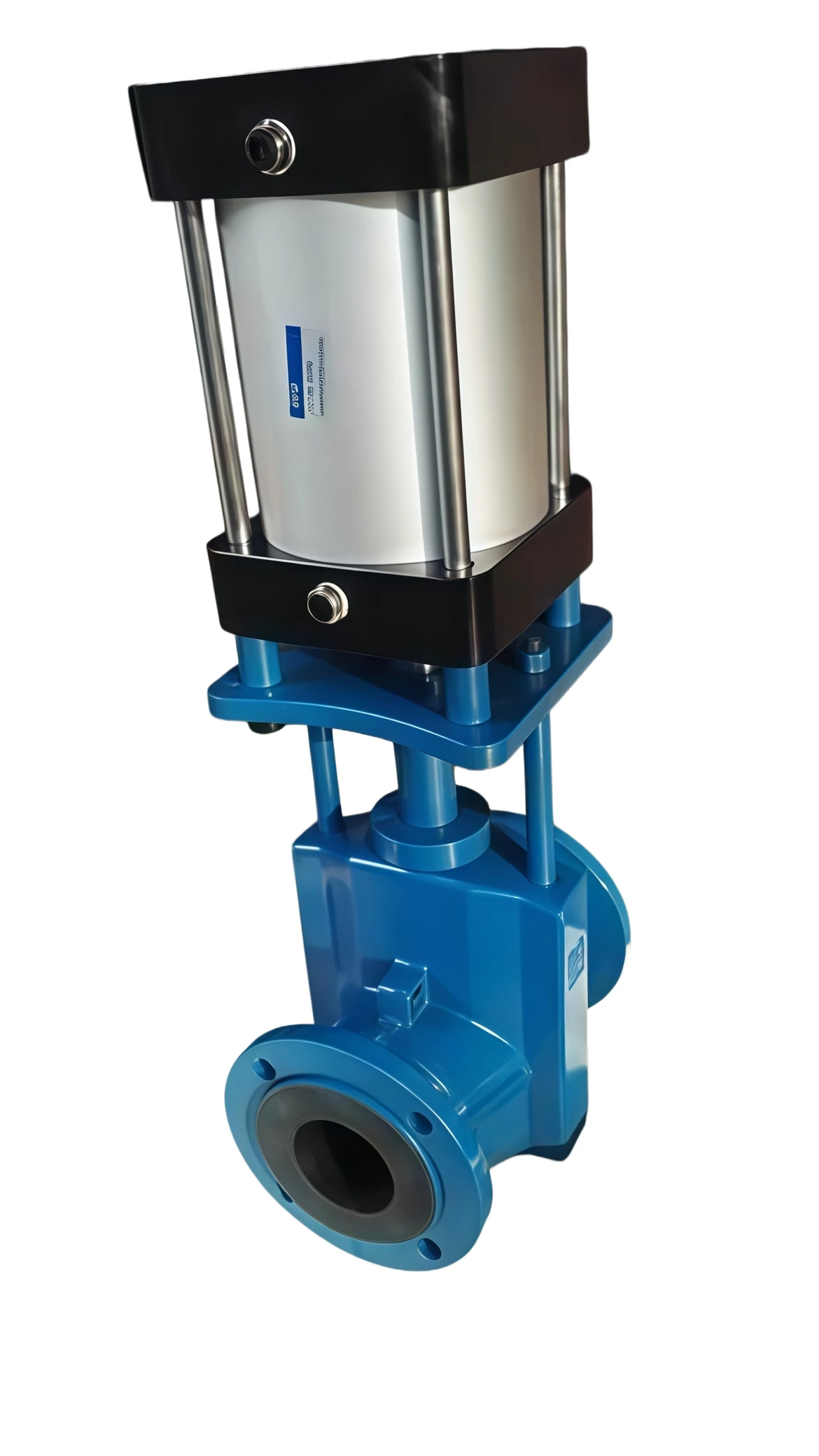

Pneumatic ceramic double gate valve
The Pneumatic Ceramic Double Gate Valve is engineered for handling highly abrasive and erosive media in pneumatic conveying and bulk material handling systems. The dual-gate design creates an effective isolation chamber, significantly improving sealing performance while minimizing wear.
Advanced ceramic liners and sealing surfaces provide exceptional abrasion resistance, extending service life far beyond conventional metal valves. The pneumatic actuator enables rapid automatic operation and seamless integration into industrial automation systems.
This valve is widely used in power generation, mining, metallurgy, cement production, chemical processing, and ash handling systems where severe wear conditions exist.
Our Pneumatic Ceramic Double Gate Valves are manufactured and tested according to international industrial standards.

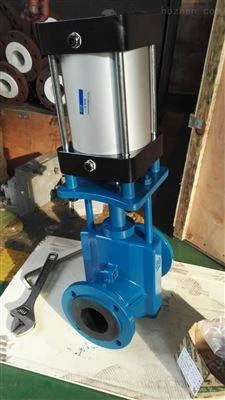

Pneumatic ceramic double gate valve
| Parameter | Specification |
|---|---|
| Product Name | Pneumatic Ceramic Double Gate Valve |
| Nominal Size | DN50 – DN800 (2" – 32") |
| Pressure Rating | PN10 – PN40 |
| ANSI Class | Class 150 – Class 300 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel |
| Ceramic Material | Alumina, Zirconia, Silicon Carbide |
| Gate Material | Ceramic-Lined Alloy Steel |
| Seat Material | Ceramic / Metal Composite |
| Connection Type | Flanged, Welded |
| Operation | Pneumatic Actuated |
| Air Supply Pressure | 0.4 – 0.8 MPa |
| Temperature Range | -20°C to +450°C |
| Sealing Type | Double Gate Isolation Seal |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | ASME B16.34, DIN, GB Standards |
| Applicable Media | Fly Ash, Coal Powder, Slurry, Cement Powder, Abrasive Particles |
Pneumatic ceramic double gate valve
Used in fly ash conveying systems, ash hopper discharge, boiler ash handling, and pneumatic conveying pipelines.
Suitable for abrasive mineral powder transportation, tailings systems, and slurry handling applications.
Applied in cement powder conveying, clinker dust collection, and silo discharge systems.
Used for blast furnace dust removal, slag conveying, and powder material transportation systems.
Handles catalysts, abrasive powders, and corrosive granular media.
Ideal for pneumatic conveying, hopper discharge, silo isolation, and powder transportation pipelines.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
