Pneumatic gate valve

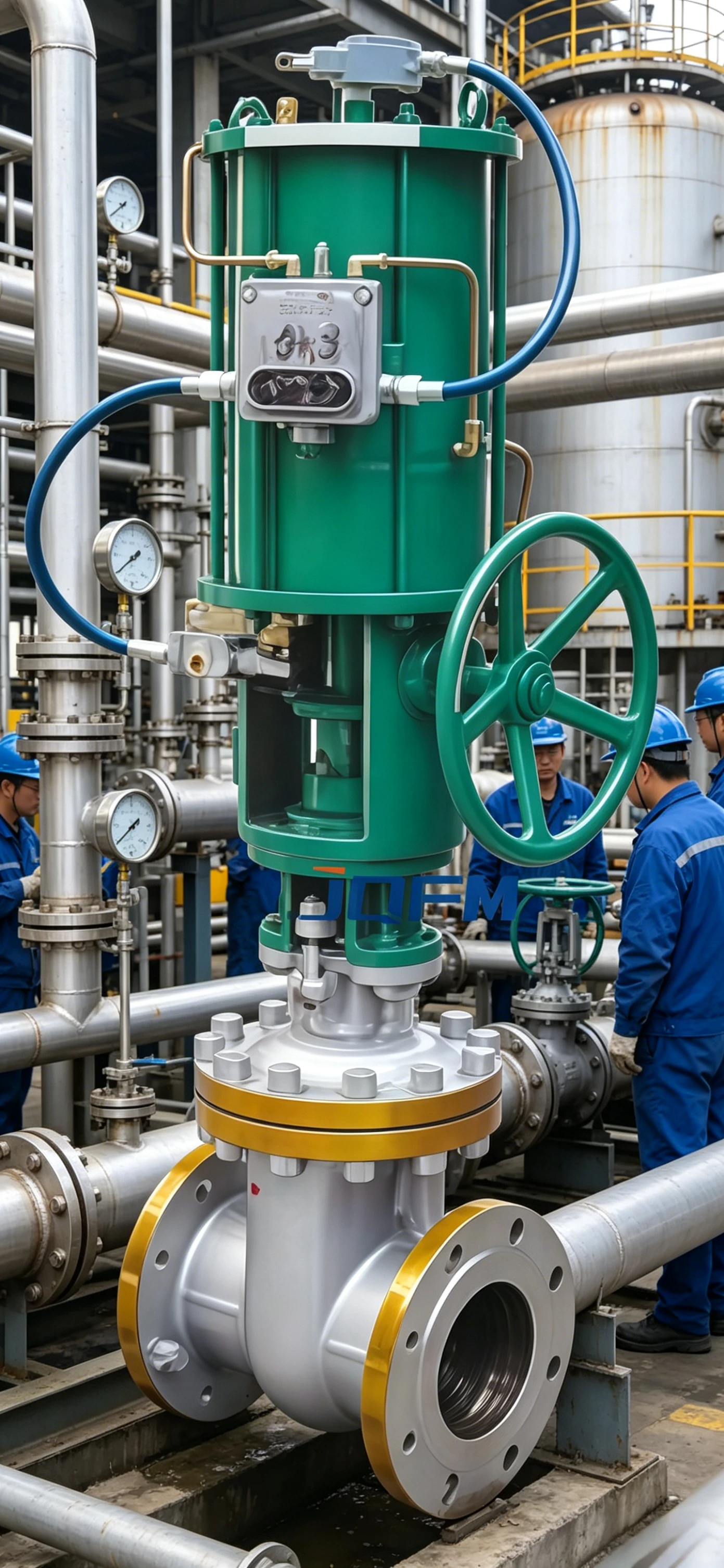

The Pneumatic Gate Valve combines a high-performance gate valve with a pneumatic actuator to achieve automatic remote operation. Designed for rapid opening and closing, excellent sealing performance, and minimal pressure loss, it is widely used in water treatment, chemical processing, oil & gas, power generation, and industrial automation systems.
Pneumatic Gate Valve
The Pneumatic Gate Valve is an automated isolation valve that utilizes compressed air to operate the valve stem and gate mechanism. It is specifically designed for applications requiring reliable shut-off, remote control, and integration into automated process systems.
With a full-bore design, the valve provides minimal flow resistance and allows unrestricted media flow when fully open. Pneumatic actuation ensures fast response times, improved operational safety, and reduced manual labor requirements.
As a professional industrial valve manufacturer, we provide comprehensive OEM and ODM solutions for global customers.
Valve Body Materials
Gate Materials
Seat Materials
Actuator Materials
Our pneumatic gate valves are manufactured and tested in compliance with international standards.
Parameter Specifications
| Item | Specification |
|---|---|
| Product Name | Pneumatic Gate Valve |
| Valve Type | Pneumatic Actuated Gate Valve |
| Nominal Size | DN50–DN2000 (2"–80") |
| Pressure Rating | PN10, PN16, PN25, PN40, PN64, PN100 |
| Body Material | Ductile Iron, Carbon Steel, SS304, SS316 |
| Gate Material | Stainless Steel, Alloy Steel |
| Seat Material | EPDM, NBR, PTFE, Metal Seat |
| Connection Type | Flanged, Welded |
| Flange Standard | ANSI, ASME, DIN, EN, JIS, GB/T |
| Actuator Type | Double Acting / Single Acting |
| Air Supply Pressure | 0.4–0.8 MPa |
| Operating Temperature | -29°C to +550°C |
| Control Signal | 4-20mA, NAMUR, PLC Compatible |
| Leakage Class | ISO 5208 Rate A |
| Design Standard | API 600, API 6D |
| Testing Standard | API 598, EN 12266 |
| Surface Coating | Epoxy Coating, FBE Coating |
| Operation Mode | Pneumatic Automatic Control |
| Applicable Media | Water, Oil, Gas, Steam, Chemicals |
Industry Applications
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
