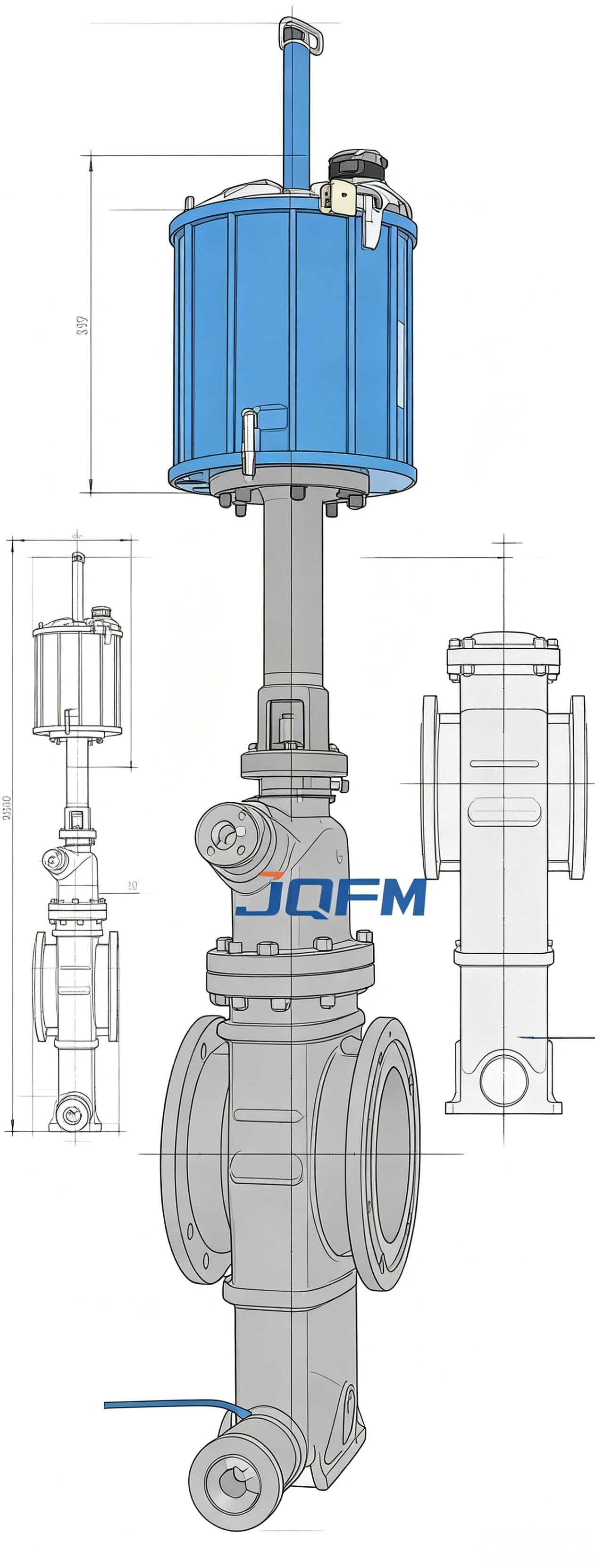

Pneumatic slag discharge flat gate valve
The Pneumatic Slag Discharge Flat Gate Valve is specially designed for ash, slag, powder, and bulk material discharge systems. Equipped with a pneumatic actuator, it enables rapid opening and closing while ensuring excellent sealing performance. Its wear-resistant structure minimizes maintenance requirements and improves operational efficiency in demanding industrial environments.
Pneumatic slag discharge flat gate valve
The Pneumatic Slag Discharge Flat Gate Valve is a high-performance isolation valve designed for automatic discharge and transportation of abrasive materials such as fly ash, bottom ash, coal powder, cement powder, slag, and mineral particles.
Driven by a pneumatic actuator, the valve provides quick response, reliable operation, and easy integration into automated control systems. Its flat gate structure ensures low flow resistance and effective shut-off, making it ideal for continuous operation in harsh working conditions.
As a professional industrial valve manufacturer, we offer complete OEM and ODM services for customized project requirements.
Our Pneumatic Slag Discharge Flat Gate Valves are manufactured according to international quality standards.
Pneumatic slag discharge flat gate valve
| Parameter | Specification |
|---|---|
| Product Name | Pneumatic Slag Discharge Flat Gate Valve |
| Nominal Size | DN50 – DN1200 (2" – 48") |
| Pressure Rating | PN10 – PN100 |
| ANSI Class | Class 150 – Class 600 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel |
| Gate Material | Wear-Resistant Steel, Stainless Steel |
| Seat Material | Metal Seat / Reinforced Soft Seat |
| Connection Type | Flanged, Welded |
| Actuator Type | Pneumatic Actuator |
| Control Mode | Local / Remote Automatic Control |
| Air Supply Pressure | 0.4 – 0.8 MPa |
| Temperature Range | -20°C to +450°C |
| Sealing Type | Bi-directional Sealing |
| Leakage Standard | API 598 / ISO 5208 Class A |
| Design Standard | API 600, API 6D, ASME B16.34 |
| Applicable Media | Fly Ash, Bottom Ash, Slag, Coal Powder, Cement Powder, Mineral Particles |
Pneumatic slag discharge flat gate valve
Widely used in fly ash handling systems, bottom ash discharge systems, coal-fired boiler ash removal, and pneumatic conveying systems.
Ideal for cement powder discharge, clinker handling, dust collection systems, and bulk material transportation.
Suitable for ore powder transportation, tailings discharge, mineral processing systems, and abrasive material handling.
Applied in blast furnace slag discharge, dust collection systems, and high-temperature solid material transportation.
Used for powder material conveying, catalyst discharge, and industrial bulk solids handling systems.
Suitable for silos, hoppers, storage tanks, and pneumatic conveying pipelines requiring automated discharge control.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
