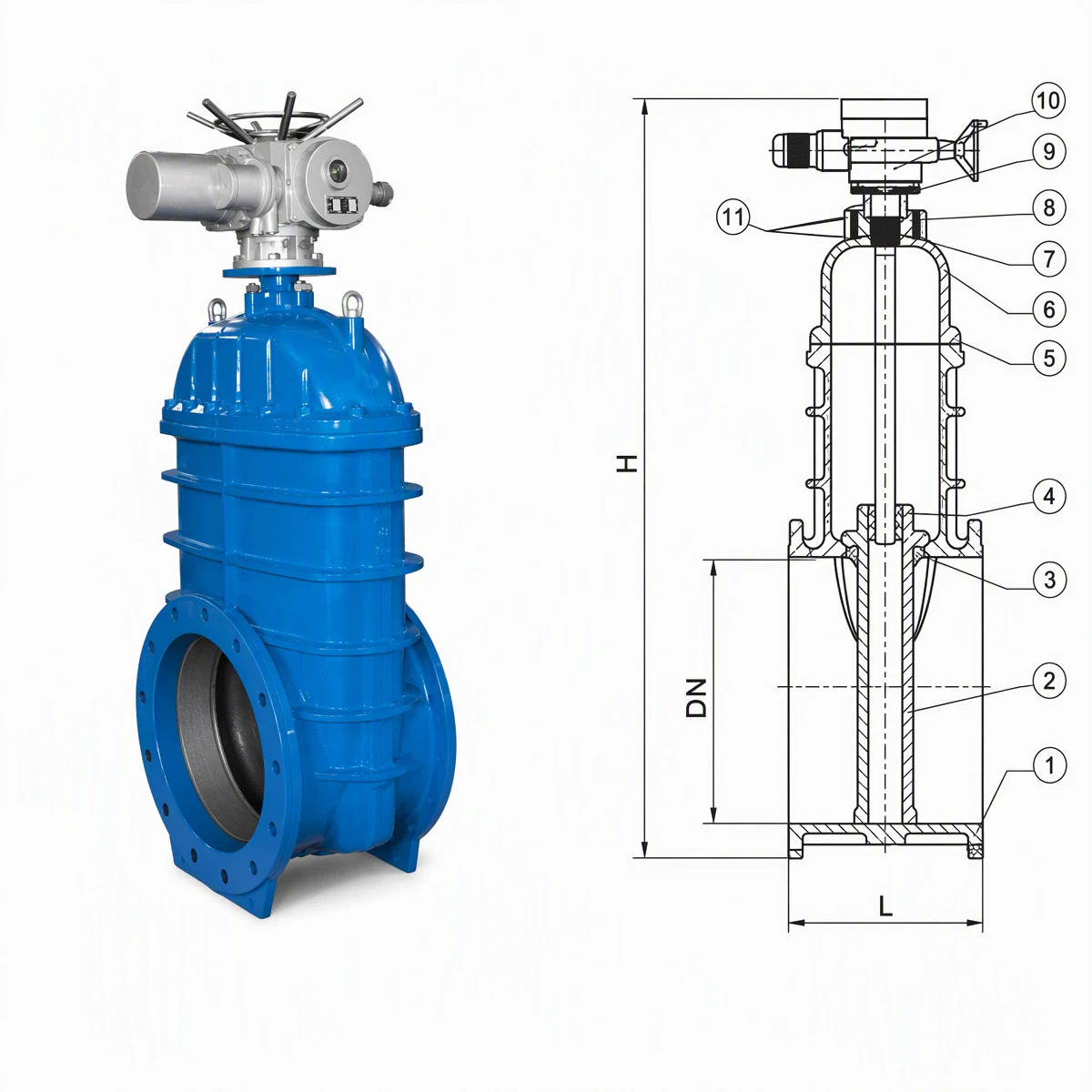

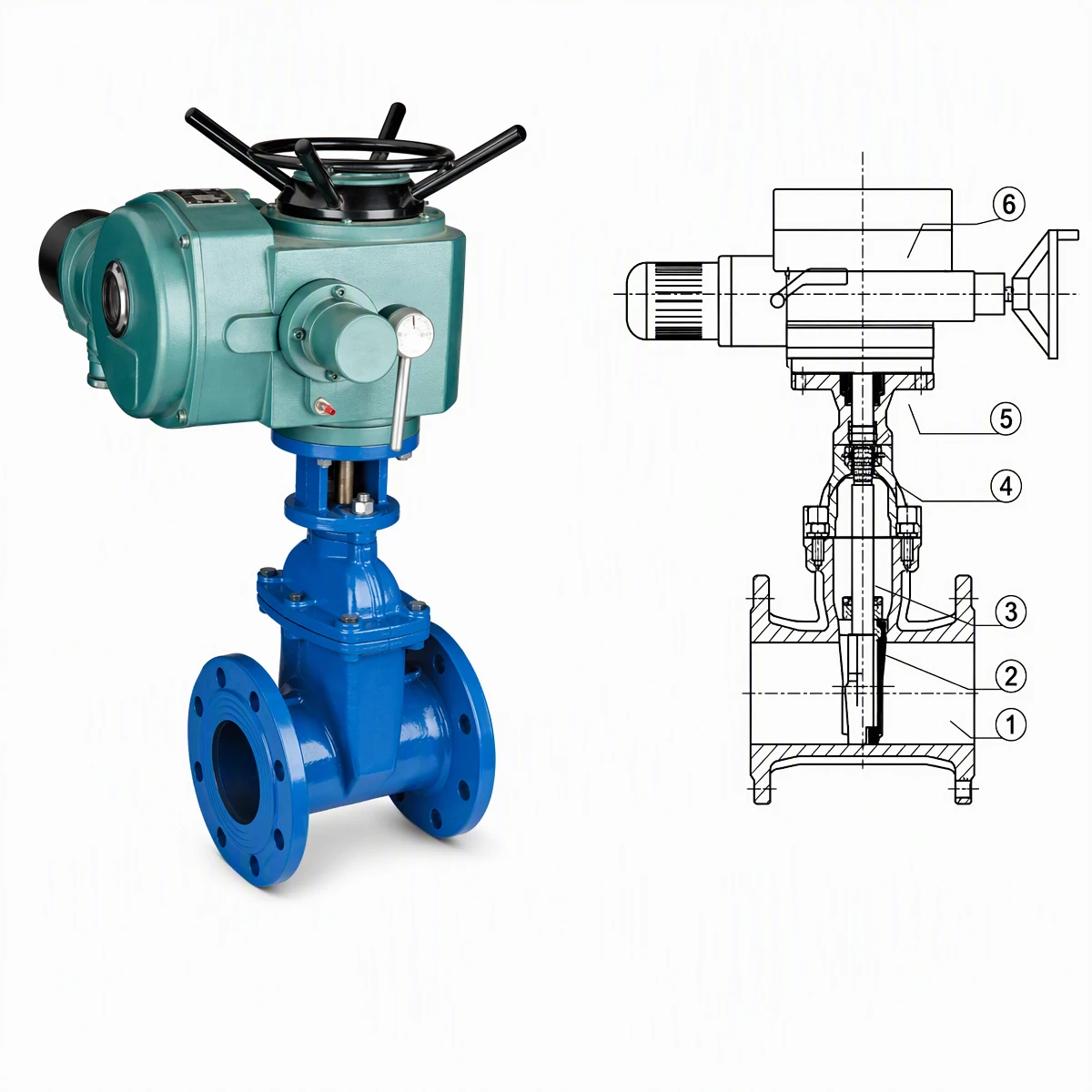

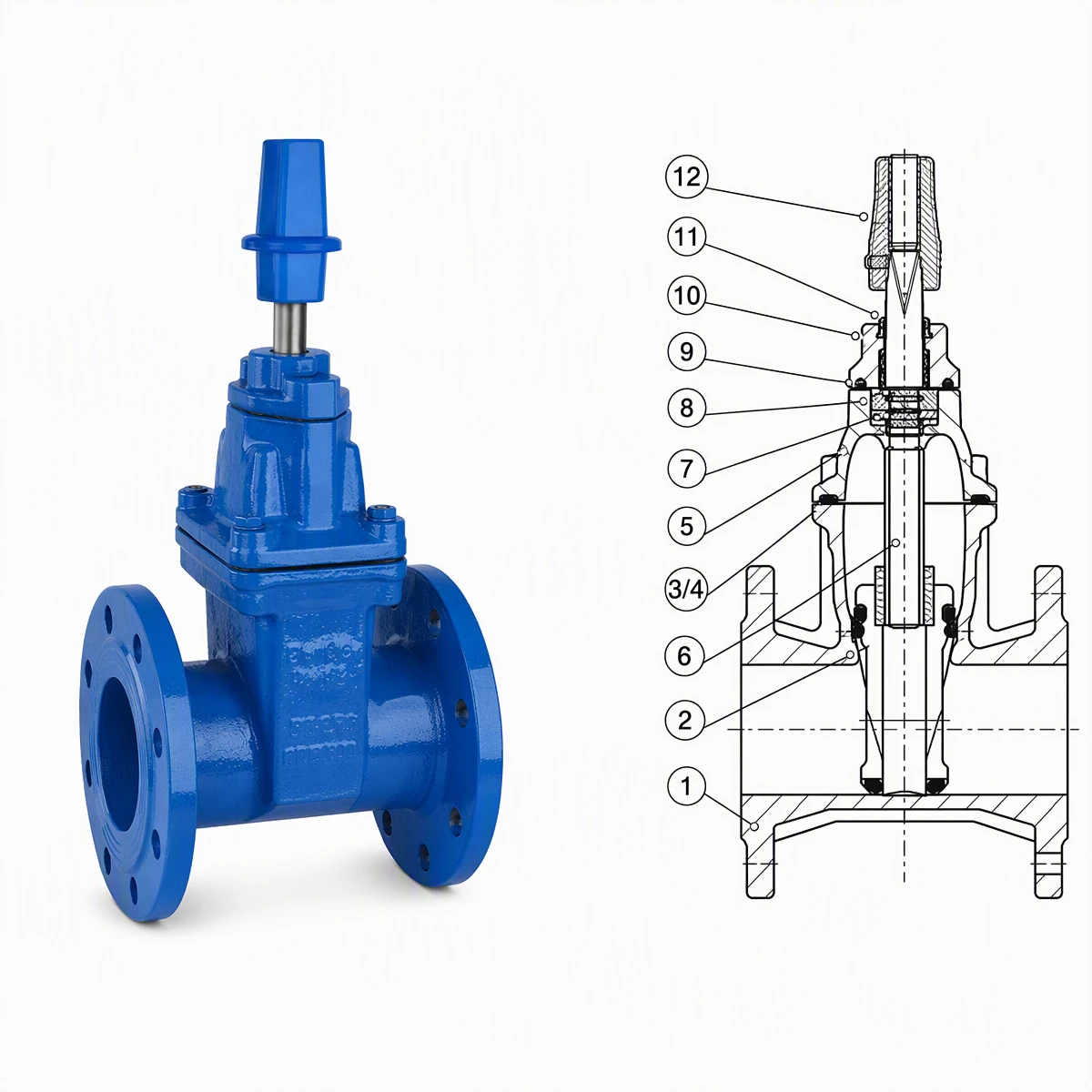

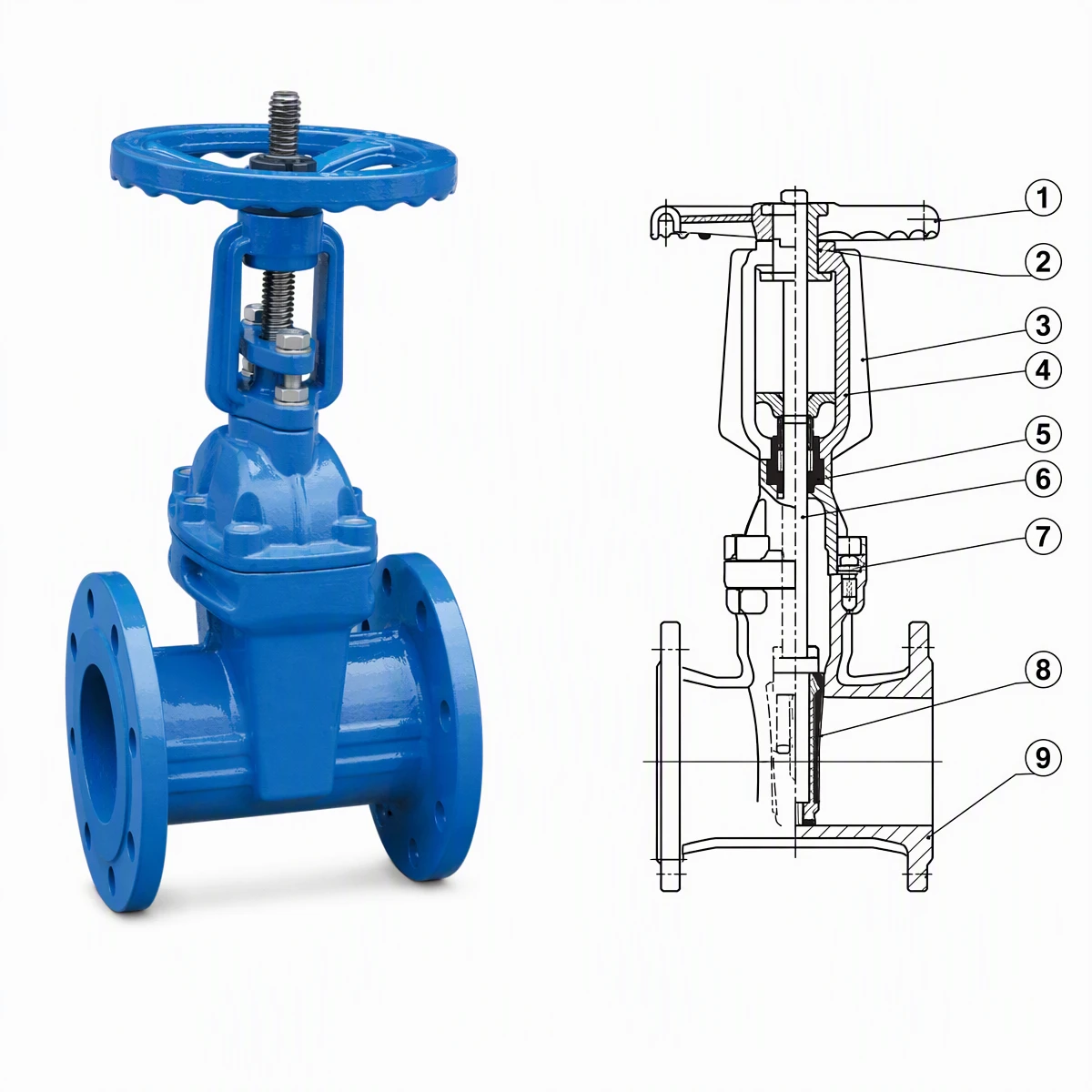

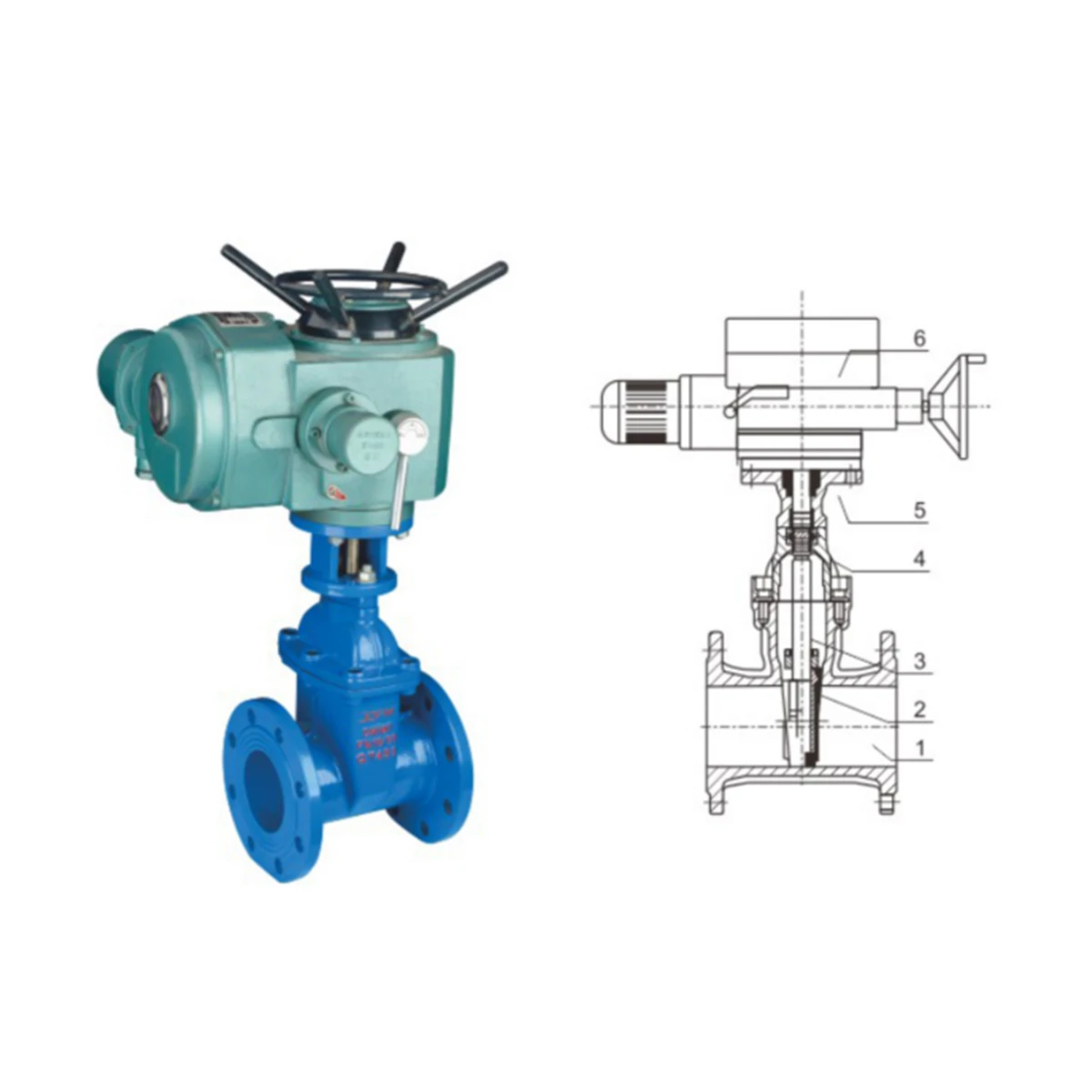

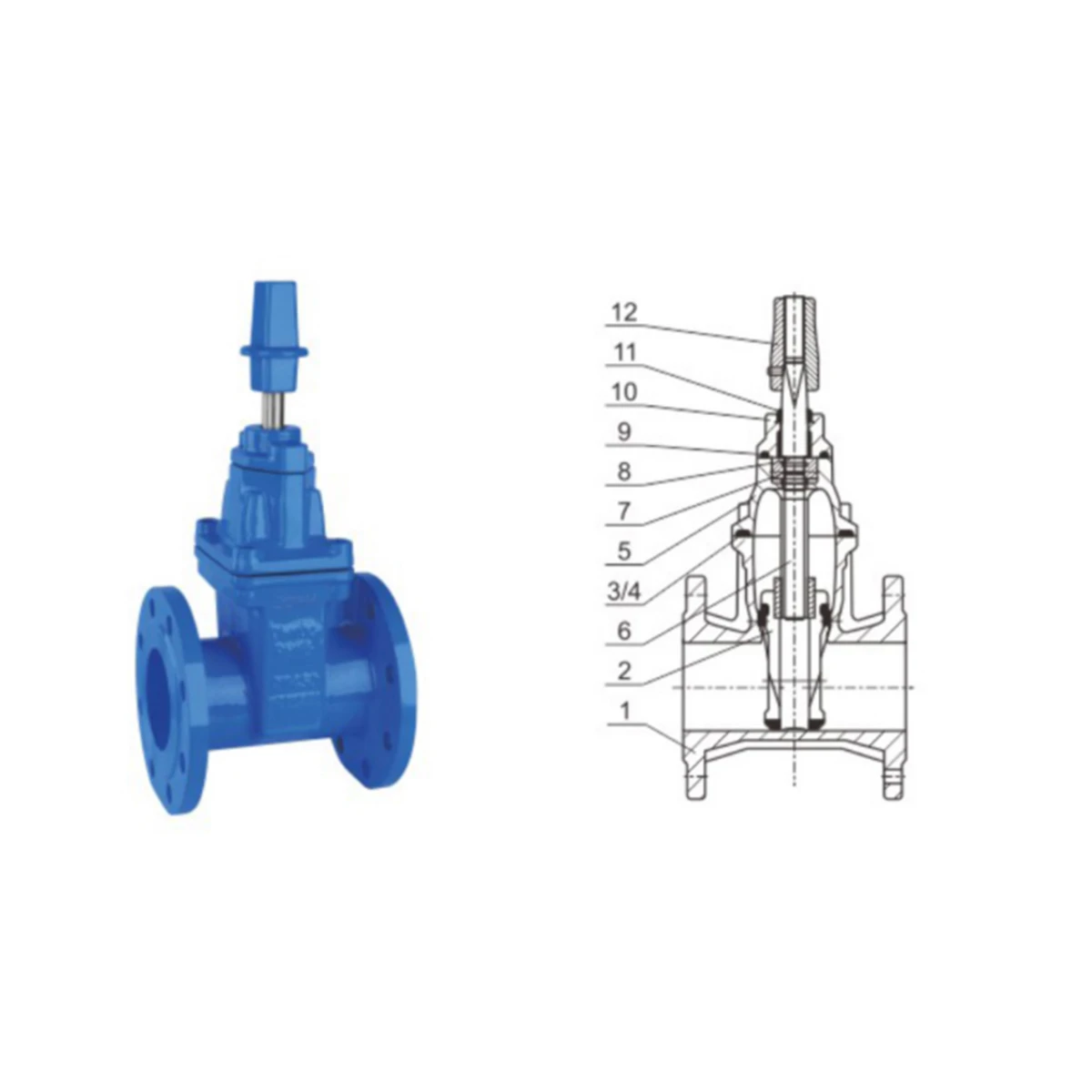

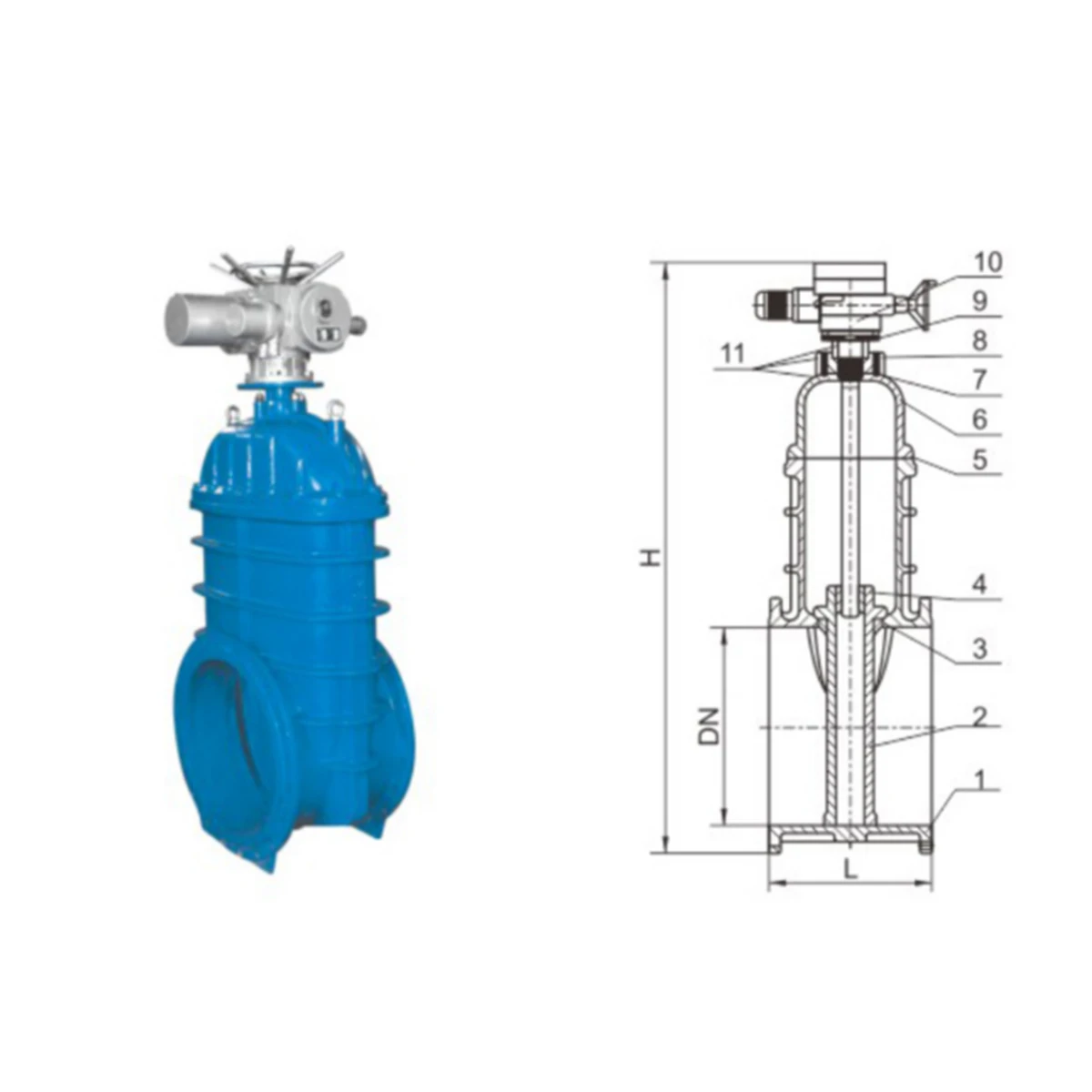

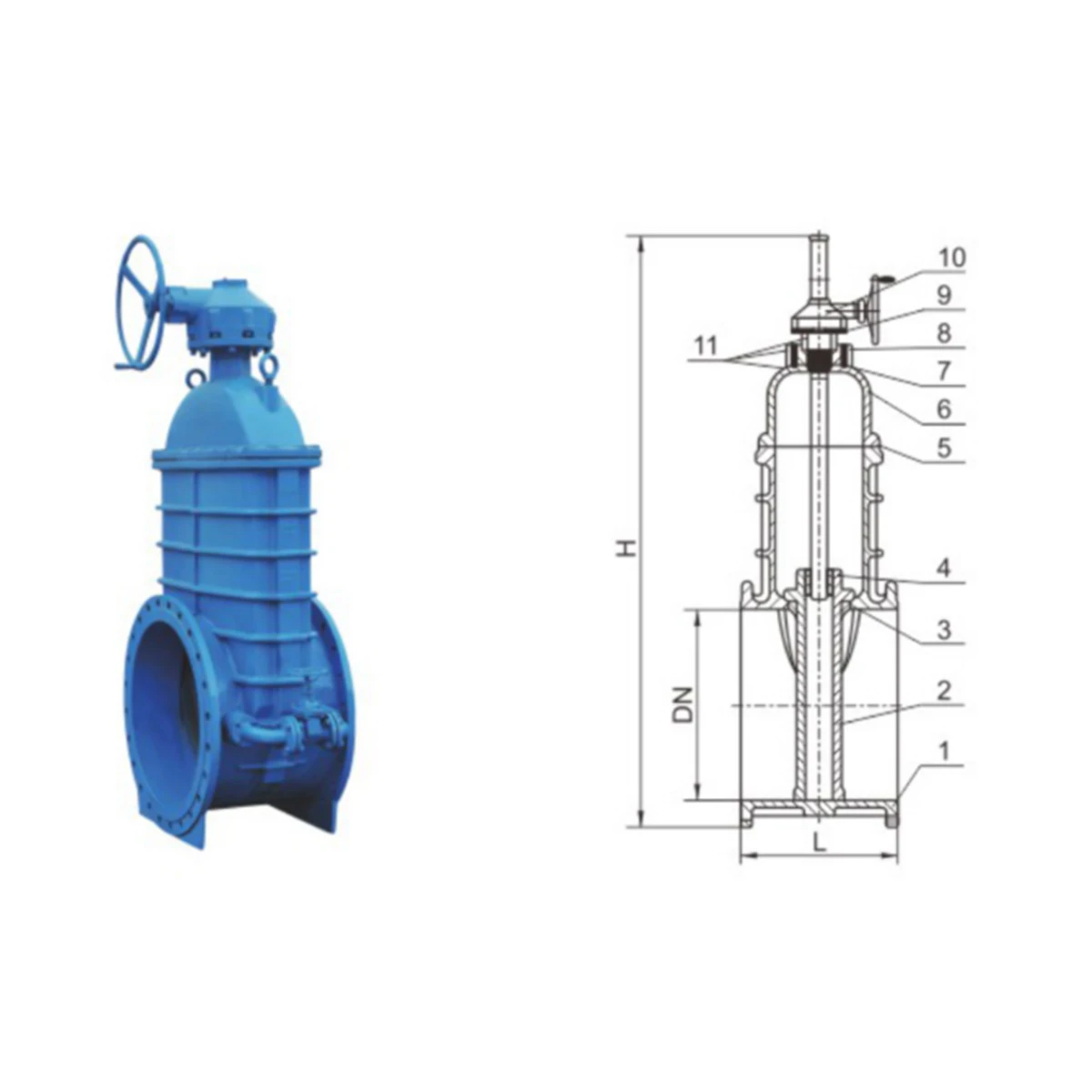

Resilient Seated Gate Valve
The Test Torque is the amount of force required to open or close the valve. For a Resilient Seated Gate Valve, the torque is primarily influenced by the nominal diameter and pressure rating. Below is a typical torque chart, which should be cross-referenced with the manufacturer’s specific data for more accurate results.

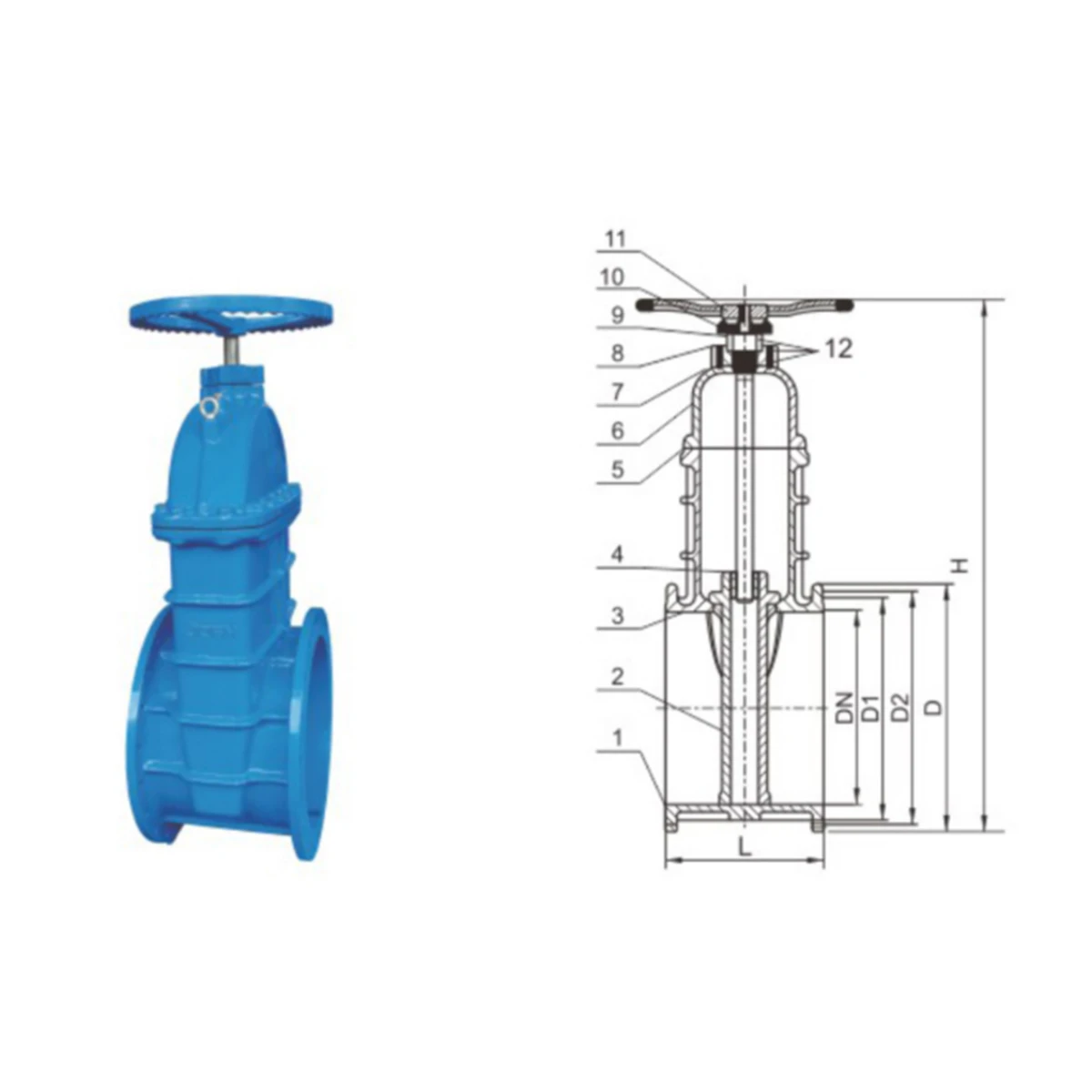

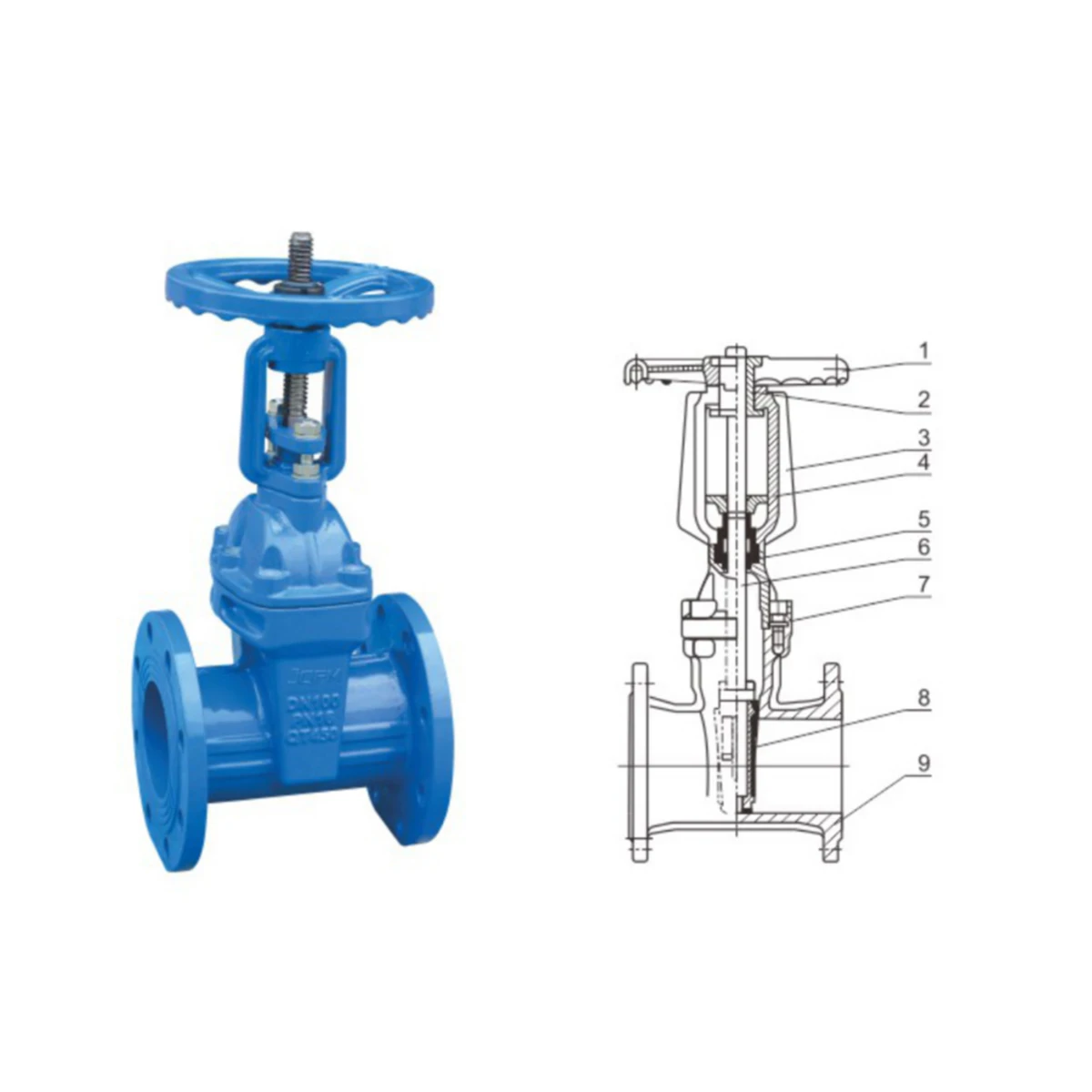

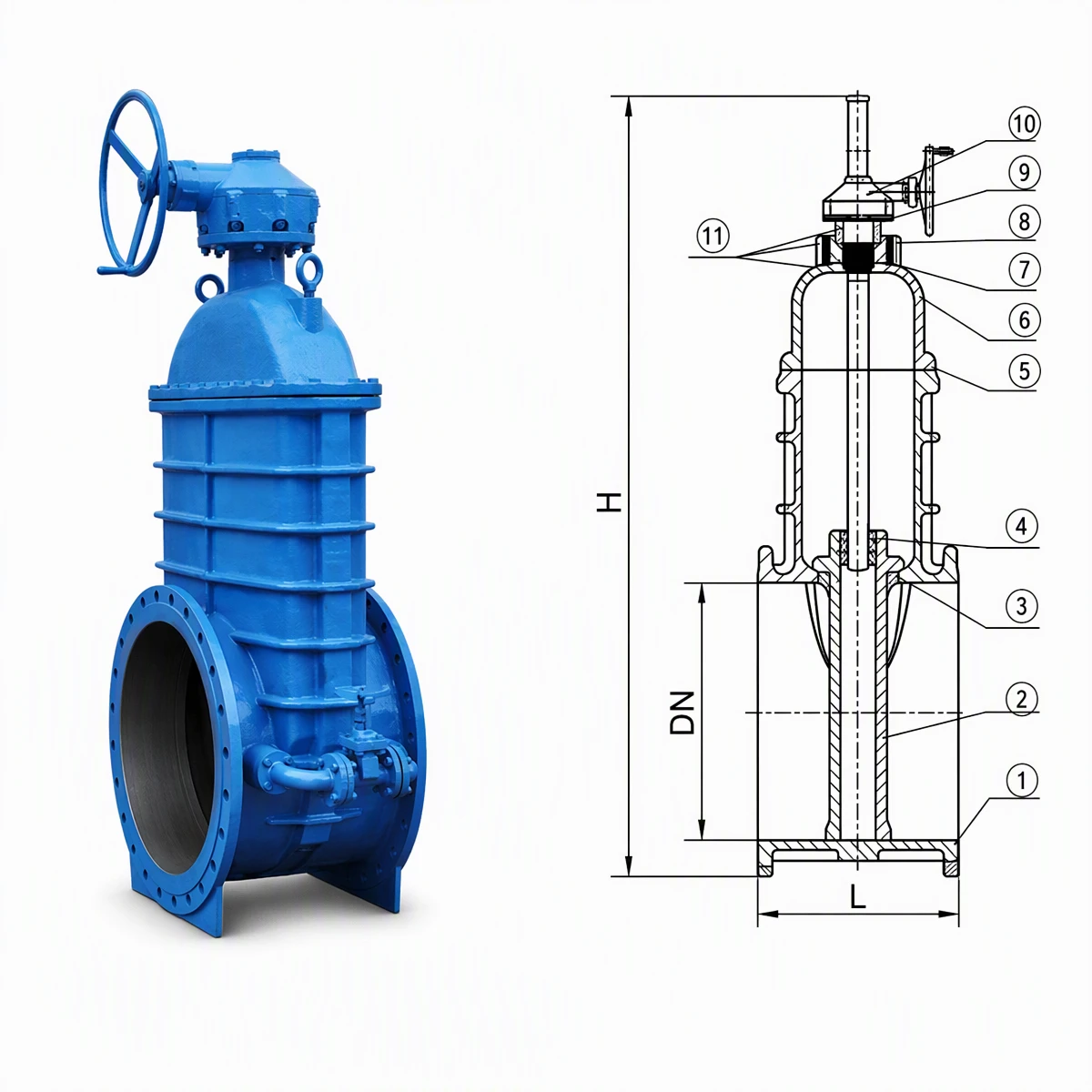

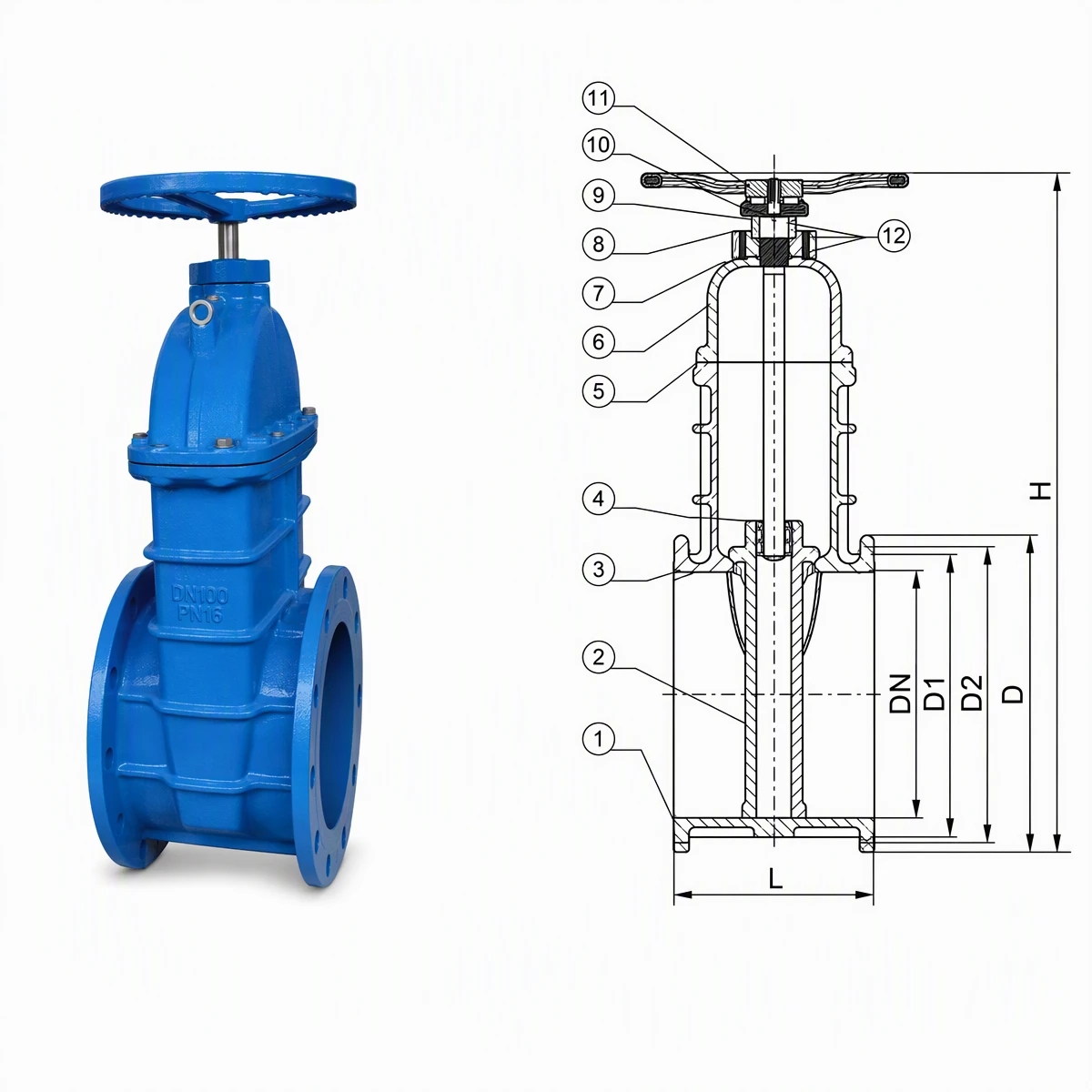

Resilient Seated Gate Valve
The Resilient Seated Gate Valve is a soft-sealing isolation valve designed for reliable shut-off service in water supply, wastewater treatment, fire protection, irrigation, and industrial utility systems. The valve features a ductile iron or cast steel body and an elastomer-coated wedge, providing bubble-tight sealing performance with zero visible leakage.
Compared with traditional metal-seated gate valves, resilient seated gate valves offer superior sealing, corrosion resistance, lower operating torque, and maintenance-free operation. The full-bore design ensures minimal pressure loss and unrestricted flow, making it an ideal solution for municipal and industrial pipeline networks.
As a professional valve manufacturer, we offer comprehensive OEM and ODM services for global infrastructure and industrial projects.
Body Materials
Wedge Materials
Stem Materials
Seal Materials
Our products are manufactured in accordance with international quality standards and valve industry certifications.
Parameter Specifications
| Item | Specification |
|---|---|
| Product Name | Resilient Seated Gate Valve |
| Valve Type | Soft-Sealing Gate Valve |
| Nominal Size | DN50–DN1200 (2"–48") |
| Pressure Rating | PN10, PN16, PN25 |
| Body Material | Ductile Iron, Cast Iron, Carbon Steel, Stainless Steel |
| Wedge Material | EPDM/NBR Encapsulated Ductile Iron |
| Stem Material | SS304, SS316, Duplex SS |
| Seat Type | Resilient Seated |
| Connection Type | Flanged |
| Flange Standard | EN 1092-2, ANSI B16.5, AWWA, JIS, GB |
| Operating Temperature | -10°C to +80°C (EPDM) |
| Maximum Working Pressure | Up to 2.5 MPa |
| Leakage Rate | ISO 5208 Rate A (Zero Leakage) |
| Stem Design | Non-Rising Stem / Rising Stem |
| Operation Type | Handwheel, Gearbox, Electric Actuator |
| Coating | Fusion Bonded Epoxy (FBE) ≥250μm |
| Design Standard | EN 1074, BS 5163, AWWA C509/C515 |
| Face-to-Face Standard | EN 558, BS 5163 |
| Inspection & Testing | EN 12266, ISO 5208 |
| Applicable Media | Water, Wastewater, Fire Water, Neutral Liquids |
Industry Applications
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
