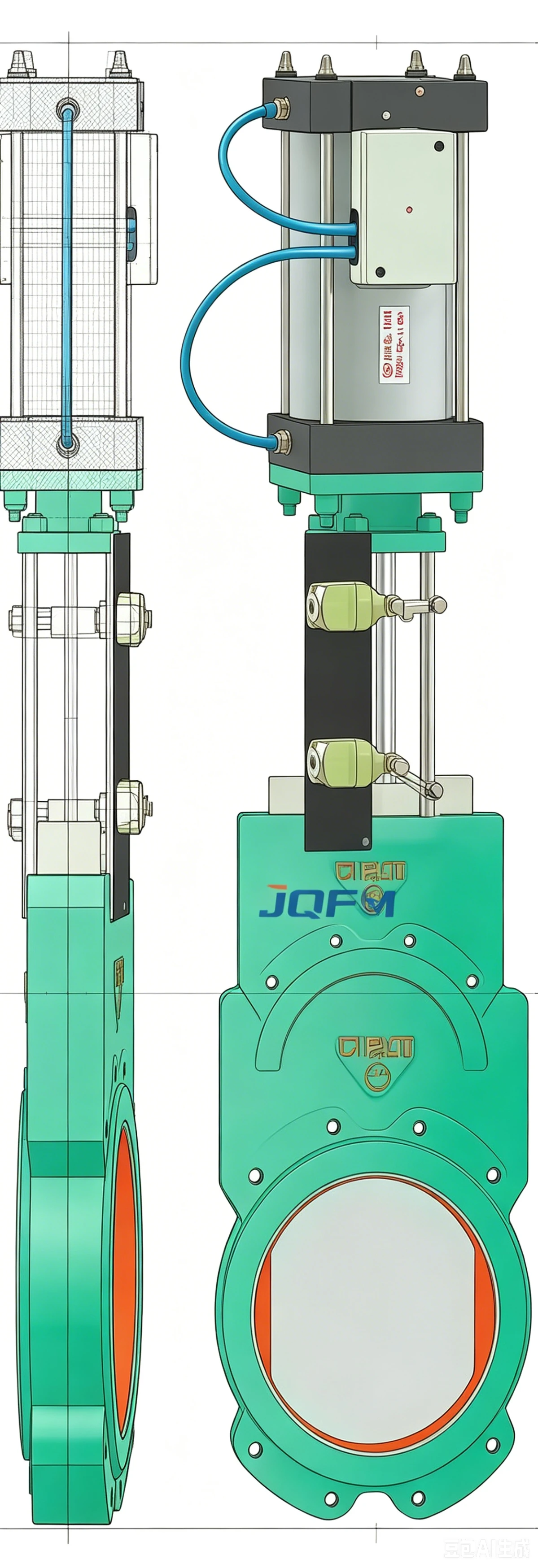

Slurry valve
The Slurry Valve is engineered for industrial pipelines transporting slurries, pulp, and viscous fluids. Its sharp knife-edge gate ensures smooth flow and prevents clogging. Constructed from abrasion- and corrosion-resistant materials, the valve delivers tight sealing, long-term durability, and easy manual or automated operation in mining, chemical, wastewater, and pulp industries.
Slurry valve
Slurry Valves are designed for controlling abrasive, viscous, or particle-laden fluids in industrial pipelines. The knife-edge gate allows solids to pass through without obstruction, ensuring uninterrupted flow. Available in manual, pneumatic, or electric operation, these valves are suitable for slurry, pulp, wastewater, and chemical processes.
Robust body materials, including carbon steel, stainless steel, and alloy steel, provide durability against wear and corrosion. Flanged, wafer, or lug connections allow easy installation and integration into industrial piping systems. Customizable features include seat materials, actuator compatibility, and coatings for harsh conditions.
Slurry valve
| Parameter | Specification |
|---|---|
| Product Name | Slurry Valve |
| Nominal Size | DN50 – DN1200 (2" – 48") |
| Pressure Rating | PN10 – PN40 |
| ANSI Class | Class 150 – Class 300 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Ductile Iron |
| Gate Material | Stainless Steel, Hardfaced Alloy, Wear-Resistant Steel |
| Seat Material | EPDM, NBR, PTFE, Metal Seat |
| Connection Type | Flanged, Wafer, Lug |
| Operation | Manual, Pneumatic, Electric |
| Temperature Range | -20°C to +250°C |
| Sealing Type | Bi-directional / Uni-directional |
| Leakage Standard | API 598 / ISO 5208 Class A |
| Design Standard | API 609, ASME B16.34 |
| Applicable Media | Slurry, Pulp, Wastewater, Chemicals, Abrasive Fluids |
Slurry valve
Controls abrasive slurries, tailings, and pulp pipelines.
Regulates sludge, wastewater, and chemical dosing lines.
Handles corrosive slurries and viscous chemical media.
Manages pulp stock, effluent, and process slurry pipelines.
Controls dense, semi-solid industrial liquids in manufacturing plants.
Used in ash handling, cooling water, and condensate slurry systems.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
