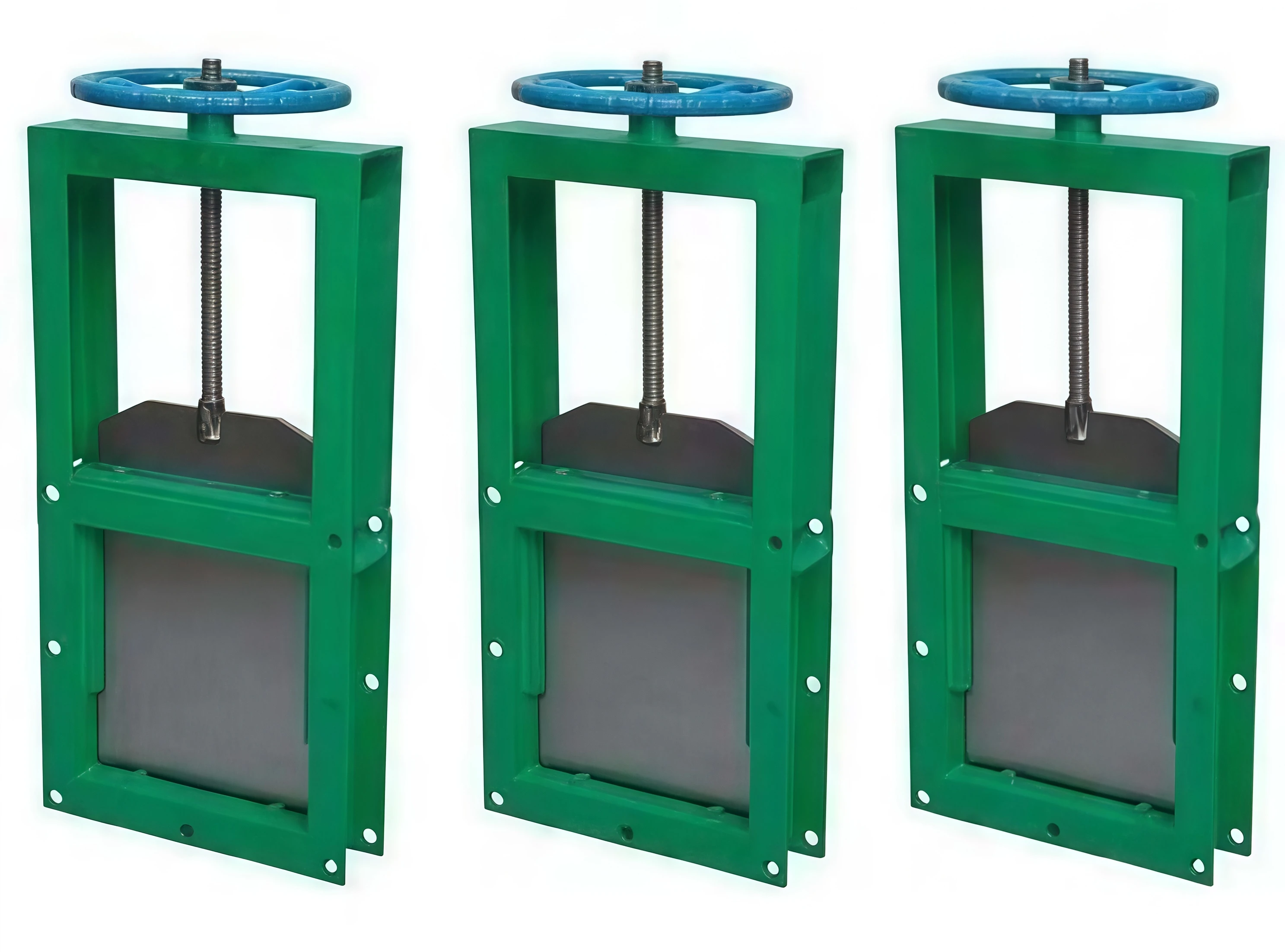

Spiral gate valve
The Spiral Gate Valve is engineered for industrial applications requiring high-pressure and high-temperature control. Its spiral-guided wedge mechanism distributes sealing forces evenly, reducing torque and wear. Designed for tight shut-off, minimal leakage, and long service life, it suits power plants, oil & gas pipelines, chemical processing, and metallurgical systems.
Spiral gate valve
Spiral Gate Valves feature a spiral-wedge design that converts linear motion into uniform sealing force, enhancing tight shut-off under high pressure and temperature conditions. The valve body and wedge materials are selected for corrosion and erosion resistance, ensuring durability in severe industrial environments.
The valve supports flanged, butt-welded, or socket-welded connections and is available with rising stem or non-rising stem designs. OEM customization options include body and seat materials, sealing types, actuator integration, and dimensions to meet project-specific requirements.
Spiral Gate Valves meet international quality and industrial standards:
Spiral gate valve
| Parameter | Specification |
|---|---|
| Product Name | Spiral Gate Valve |
| Nominal Size | DN50 – DN1200 (2" – 48") |
| Pressure Rating | PN10 – PN250 |
| ANSI Class | Class 150 – Class 900 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel |
| Gate/Wedge Material | Stainless Steel, Alloy Steel, Hardfaced Steel |
| Seat Material | Metal Seat / Soft Seat |
| Connection Type | Flanged, Butt-Welded, Socket-Welded |
| Operation | Manual, Bevel Gear, Electric, Pneumatic |
| Stem Type | Rising / Non-Rising Stem |
| Temperature Range | -29°C to +550°C |
| Sealing Type | Metal-to-Metal / Soft Seal |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | API 600 / API 602 / ASME B16.34 |
| Applicable Media | Steam, Oil, Gas, Water, Chemicals, Slurry |
Spiral gate valve
Steam and condensate pipelines, boiler feed water, high-pressure isolation.
High-pressure crude oil, refined petroleum, natural gas pipelines.
Corrosive chemical handling, high-temperature process pipelines.
Slag, molten metal off-gas systems, and high-pressure process pipelines.
High-pressure water control, effluent, and treatment plant pipelines.
Chemical, thermal, and high-temperature slurry pipelines requiring tight shut-off.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
