Station Flanged Gate Valve
Description: Refers to the internal diameter of the valve or the pipe it is designed to fit. It is expressed in millimeters (mm) or inches.
Common Values: DN 50 (2 inches), DN 100 (4 inches), DN 150 (6 inches), DN 200 (8 inches), and larger sizes, up to DN 1200 (48 inches) or more, depending on the application.
Feature Benefit: Ensures compatibility with different pipe sizes, enabling the valve to be used in a wide range of applications and pipeline configurations.

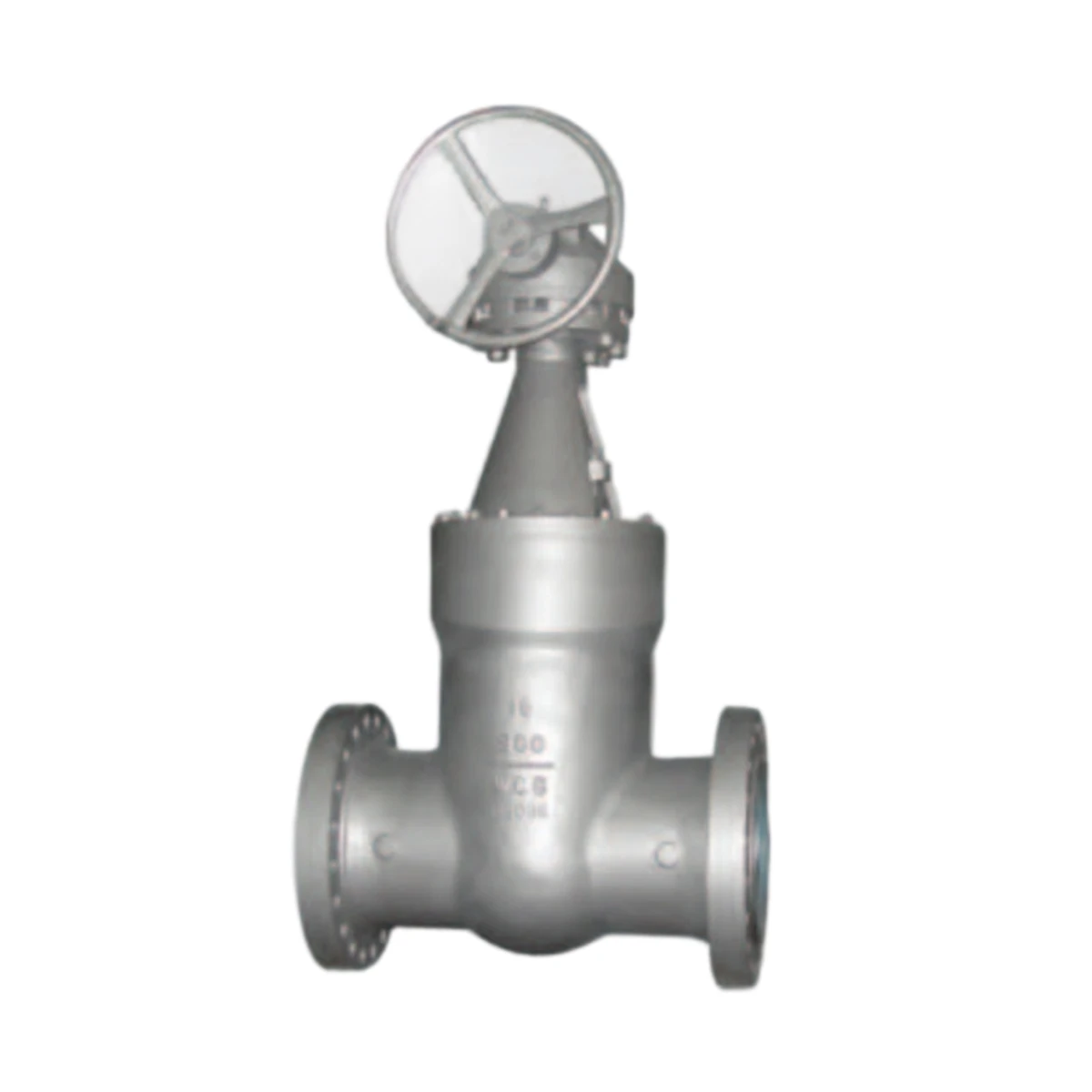

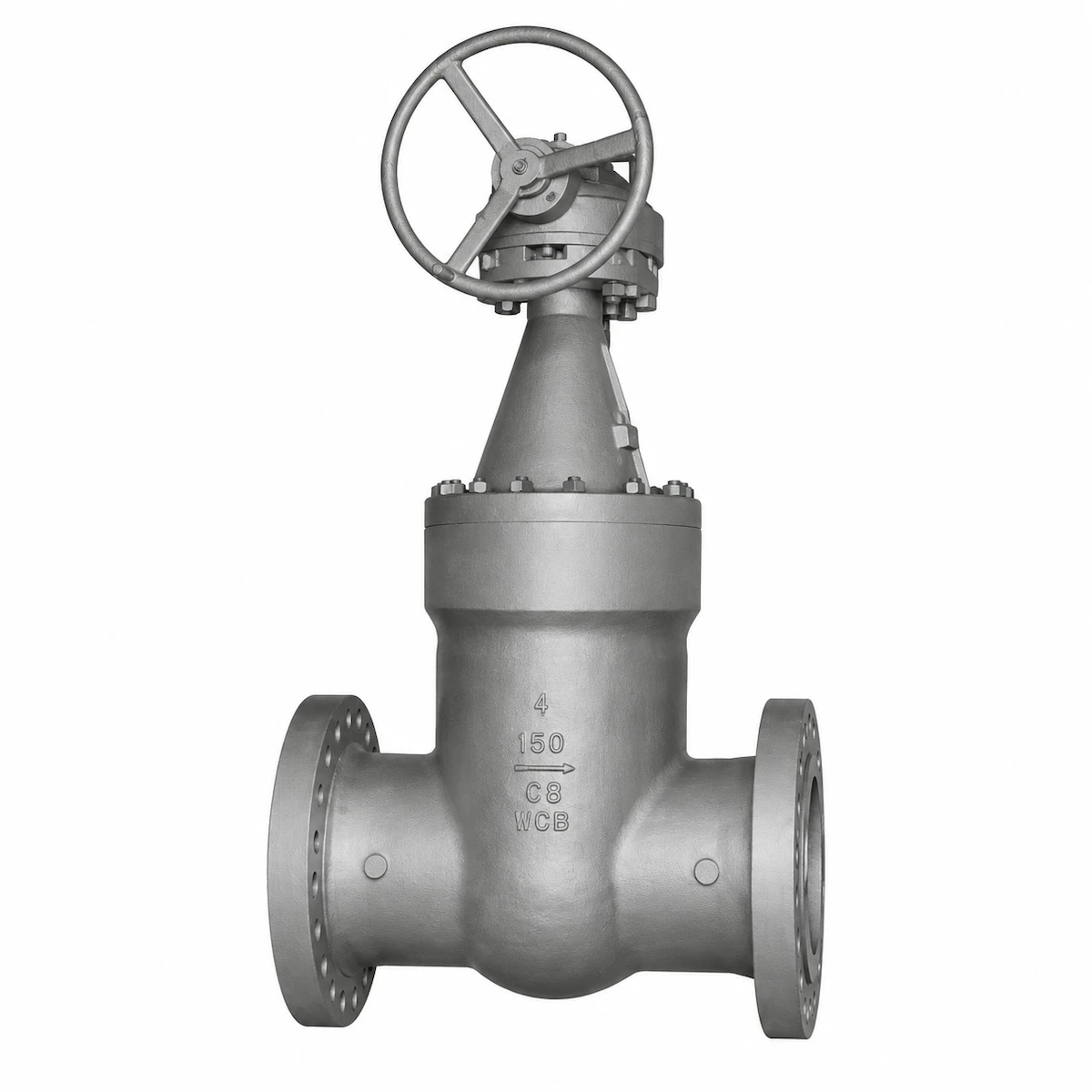

Power Station Flanged Gate Valve
The Power Station Flanged Gate Valve is specifically designed for high-temperature and high-pressure applications in power generation facilities and industrial process systems. Manufactured in accordance with international standards, it features a robust pressure-sealed or bolted bonnet design, ensuring reliable shut-off performance under demanding operating conditions.
Constructed from premium-grade carbon steel, alloy steel, or stainless steel materials, the valve offers excellent resistance to high temperatures, pressure fluctuations, and corrosion. The full-port design minimizes flow resistance and ensures efficient fluid transmission. It is widely used in steam, feedwater, condensate, and other critical utility systems where safety and operational reliability are essential.
Designed to meet the requirements of North American and Middle Eastern markets, our power station gate valves comply with relevant ASME, ANSI, API, and customer-specific specifications.
As an experienced industrial valve manufacturer, we provide comprehensive OEM and ODM services tailored to project requirements and regional standards.
| Customization Item | Available Options |
|---|---|
| Valve Size | Customized from DN50 to DN1200 |
| Pressure Rating | Class 150–2500 |
| Body Material | Carbon Steel, Alloy Steel, Stainless Steel, Duplex Stainless Steel |
| Trim Material | Customized according to service conditions |
| Flange Standard | ANSI, ASME, DIN, EN, JIS, GOST |
| End Connections | RF, RTJ, FF, BW, SW |
| Actuation | Manual, Gear, Electric, Pneumatic, Hydraulic |
| Coating System | Epoxy, High-Temperature Paint, C5-M Marine Coating |
| Nameplate | Customized Logo and Brand Marking |
| Packaging | Customized Export Packaging |
| Documentation | MTC EN10204 3.1, NACE, PMI, RT, UT, Third-Party Inspection Reports |
| Certification | API, ISO, CE, EAC, SIL, NACE MR0175 Available |
Private label manufacturing
Customized casting and forging
Project-specific engineering support
Technical drawing optimization
Packaging and branding customization
Third-party inspection coordination
Fast sample production and mass manufacturing
United States
Canada
Mexico
Saudi Arabia
United Arab Emirates (UAE)
Qatar
Kuwait
Oman
Bahrain
Iraq
Designed for high-temperature and high-pressure service
Low flow resistance and excellent sealing performance
Long service life under severe operating conditions
Compliance with ASME, ANSI, and API standards
Available with comprehensive OEM/ODM customization options
Proven performance in North American and Middle Eastern industrial projects
This makes the Power Station Flanged Gate Valve an ideal choice for critical steam and utility applications requiring maximum reliability, safety, and operational efficiency.
Parameter Specifications
| Parameter | Specification |
|---|---|
| Product Type | Power Station Flanged Gate Valve |
| Valve Design | Gate Valve |
| Connection Type | Flanged |
| Size Range | NPS 2" – 48" (DN50 – DN1200) |
| Pressure Rating | Class 150, 300, 600, 900, 1500, 2500 |
| Design Standard | ASME B16.34, API 600, BS 1414 |
| Face-to-Face Standard | ASME B16.10 |
| Flange Standard | ASME B16.5, ASME B16.47 |
| Testing Standard | API 598, ISO 5208 |
| Body Materials | WCB, WC6, WC9, C5, C12A, CF8, CF8M, CF3M |
| Trim Materials | 13Cr, F6a, Stellite, SS304, SS316 |
| Operating Temperature | Up to 600°C (1112°F) |
| Applicable Media | Steam, Water, Condensate, Thermal Oil, Non-corrosive and Corrosive Fluids |
| Sealing Type | Metal-to-Metal Seal |
| Operation | Handwheel, Gear Operated, Electric Actuator, Pneumatic Actuator |
| Leakage Class | API 598 Standard |
| End Connection | RF, RTJ, FF Flanged Ends |
Industry Applications
Main steam pipelines
Boiler feedwater systems
Condensate recovery systems
Turbine auxiliary systems
Combined-cycle power plants
Nuclear and thermal power stations
High-pressure steam systems
Refinery utility pipelines
Process fluid isolation
High-temperature process lines
Heat transfer systems
Utility service pipelines
District heating systems
Water treatment facilities
Industrial steam distribution networks
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
