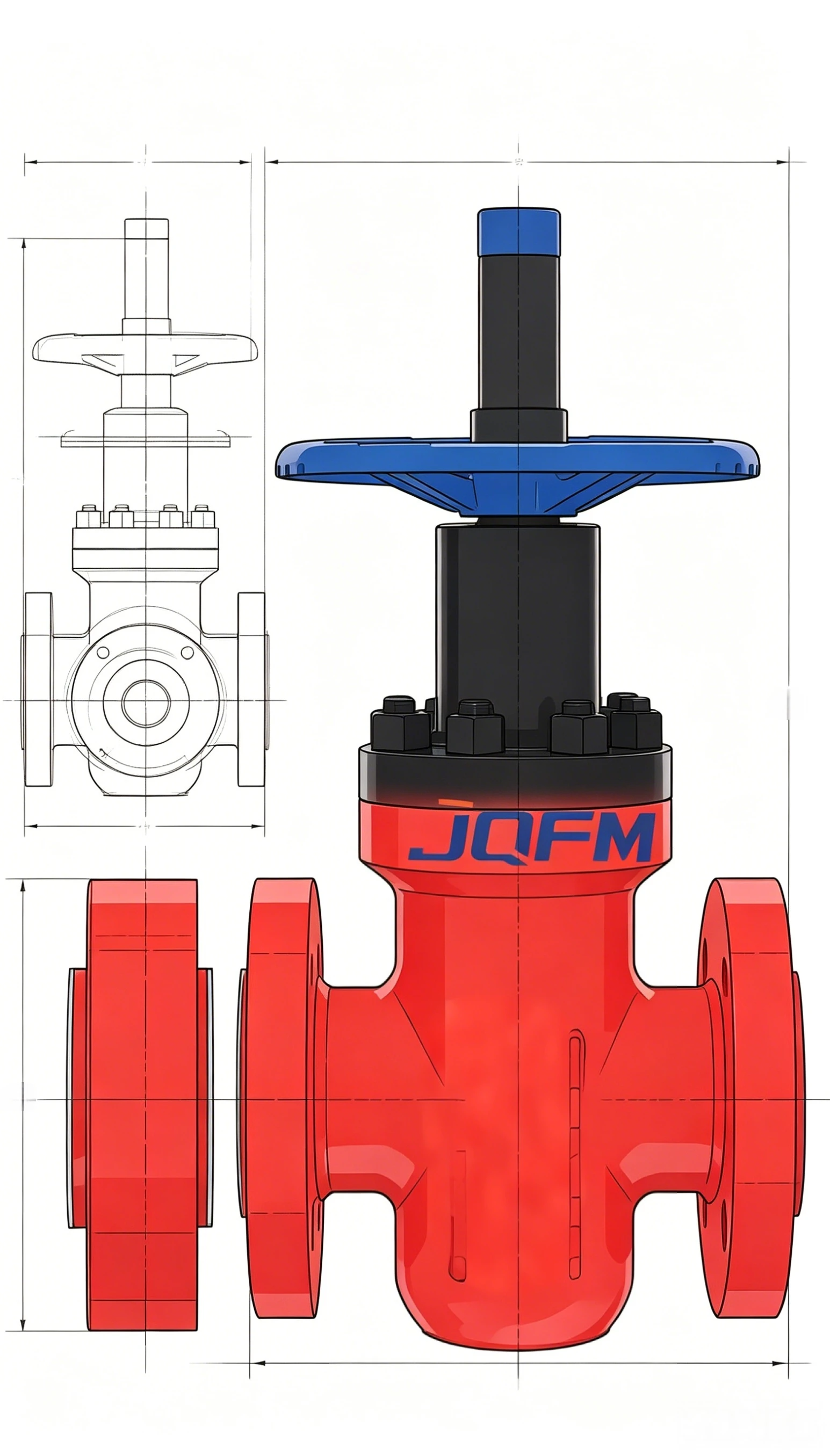

Water injection flat gate valve
The Water Injection Flat Gate Valve is specifically engineered for oilfield water injection and industrial fluid transportation systems. Its full-port flat gate design ensures unrestricted flow and reliable sealing under high-pressure conditions. Manufactured from high-strength and corrosion-resistant materials, the valve offers excellent operational stability, extended service life, and minimal maintenance requirements.

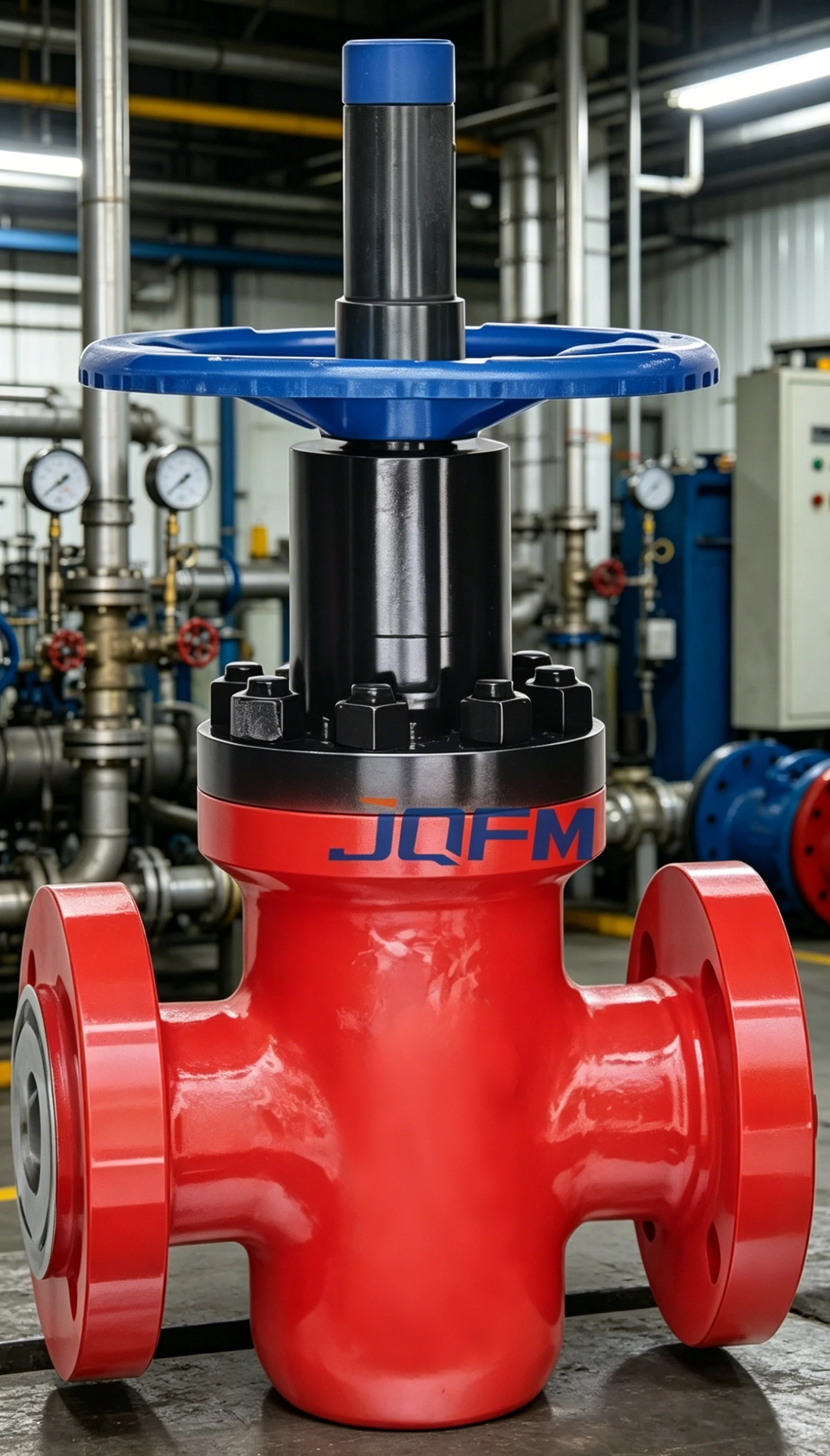

Water injection flat gate valve
The Water Injection Flat Gate Valve is designed for high-pressure water injection pipelines commonly used in oilfield enhanced oil recovery (EOR), water flooding systems, and industrial process applications.
Featuring a through-conduit slab gate structure, the valve minimizes flow resistance while ensuring dependable bi-directional sealing. Its robust construction withstands harsh operating environments, including high-pressure, corrosive, and abrasive service conditions.
As a professional industrial valve manufacturer, we provide comprehensive OEM and ODM services tailored to project requirements.
Our Water Injection Flat Gate Valves are manufactured and tested according to international quality standards.
Water injection flat gate valve
| Parameter | Specification |
|---|---|
| Product Name | Water Injection Flat Gate Valve |
| Nominal Size | DN50 – DN1200 (2" – 48") |
| Pressure Rating | PN16 – PN420 |
| ANSI Class | Class 150 – Class 2500 |
| Body Material | Carbon Steel, Forged Steel, Stainless Steel, Duplex Stainless Steel |
| Gate Material | Stainless Steel, Alloy Steel |
| Seat Material | Soft Seat / Metal Seat |
| Connection Type | Flanged, Butt Welded |
| Operation | Manual, Electric, Pneumatic, Hydraulic |
| Temperature Range | -29°C to +200°C |
| Sealing Type | Bi-directional Sealing |
| Leakage Standard | API 598 / ISO 5208 Class A |
| Design Standard | API 6D, API 600, ASME B16.34 |
| Corrosion Protection | Internal & External Anti-Corrosion Coating |
| Applicable Media | Water, Treated Water, Injection Water, Industrial Fluids |
Water injection flat gate valve
Widely used in enhanced oil recovery (EOR), water flooding operations, and reservoir pressure maintenance systems.
Suitable for water injection stations, wellhead systems, gathering networks, and oilfield surface facilities.
Applied in industrial water treatment systems, filtration facilities, and high-pressure water transportation pipelines.
Used in cooling water systems, process water networks, and utility fluid transportation systems.
Suitable for boiler feedwater systems, cooling water circulation systems, and industrial water management networks.
Ideal for mining, metallurgy, chemical processing, and large-scale industrial water distribution projects.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
