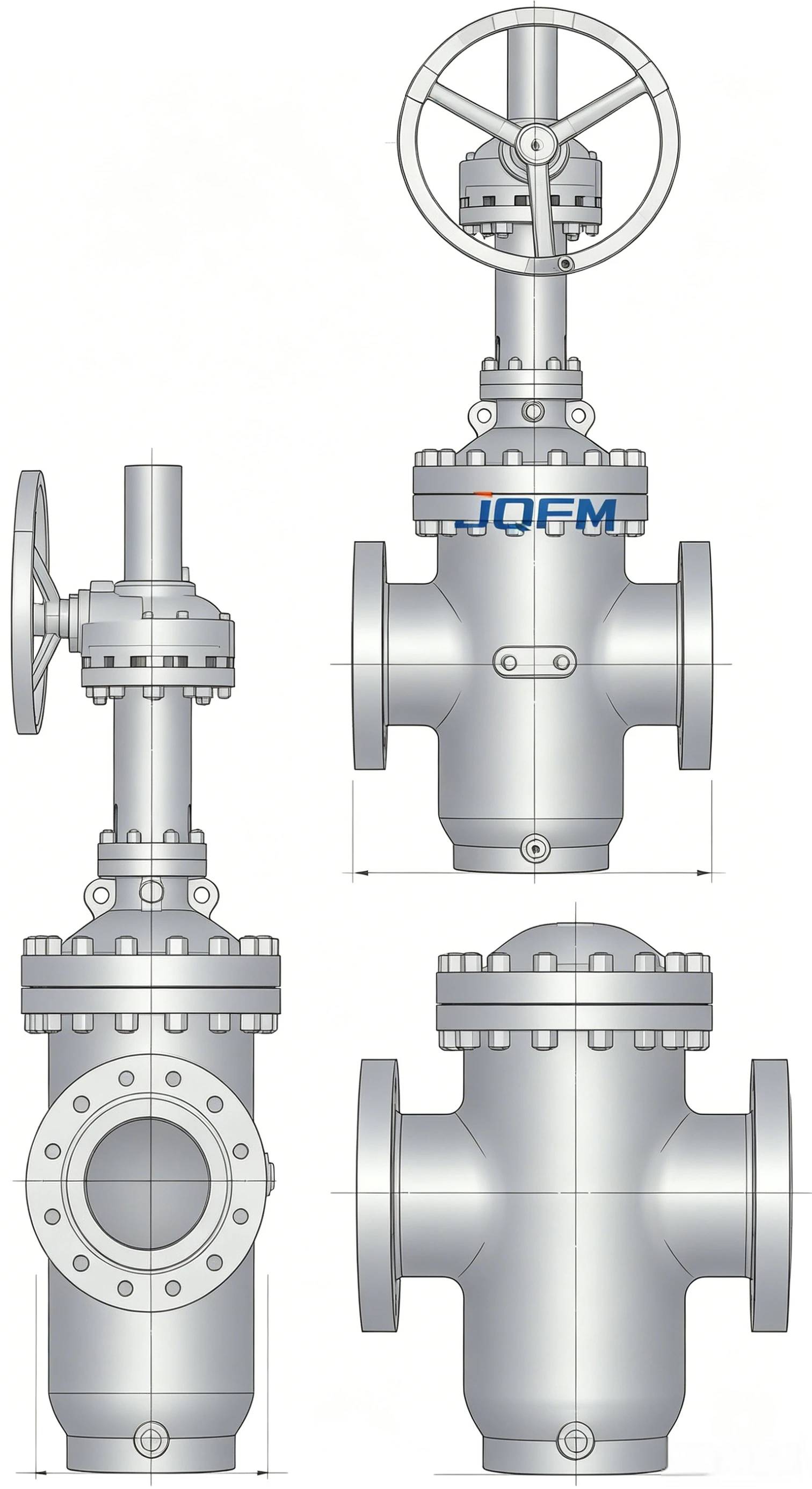

Z43WFlat gate valve
The Flat Gate Valve is engineered with a flat gate and robust body, providing smooth, low-resistance flow and secure shut-off. Suitable for water, oil, gas, and steam pipelines, it delivers reliable operation, easy maintenance, and extended service life, making it ideal for power plants, petrochemical, water treatment, and industrial processing
Flat gate valve
Flat Gate Valves are designed for straight-through, low-resistance flow in pipelines, utilizing a flat gate to provide tight sealing and smooth operation. The valve body and gate are made of carbon steel, stainless steel, or alloy steel, ensuring durability under high pressure and temperature conditions.
Key Advantages:
Flat gate valve
| Parameter | Specification |
|---|---|
| Product Name | Flat Gate Valve |
| Nominal Size | DN50 – DN1200 (2" – 48") |
| Pressure Rating | PN10 – PN420 / Class 150–2500 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel |
| Gate Material | Stainless Steel, Duplex Steel, Coated Steel |
| Connection Type | Flanged, Butt Weld, Socket Weld |
| Operation | Manual, Electric, Pneumatic, Hydraulic |
| Temperature Range | -29°C to +550°C |
| Sealing Type | Metal-to-Metal / Soft Seal |
| Leakage Class | ISO 5208 Class A |
| Design Standard | API 600, API 6D, ASME B16.34 |
| Testing Standard | API 598 |
| Applicable Media | Water, Steam, Oil, Gas, Chemicals |
Flat gate valve
Steam and water pipelines, cooling systems, feedwater systems, turbine isolation.
Crude oil, refined products, natural gas pipelines, refinery systems.
Corrosive and non-corrosive chemical pipelines, process lines, storage systems.
Drinking water pipelines, wastewater treatment, desalination plants, irrigation systems.
Food & beverage, pulp & paper, textile, and manufacturing process pipelines requiring tight shut-off and minimal flow resistance.
Hot and cold water distribution, district heating pipelines, and industrial cooling systems.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
