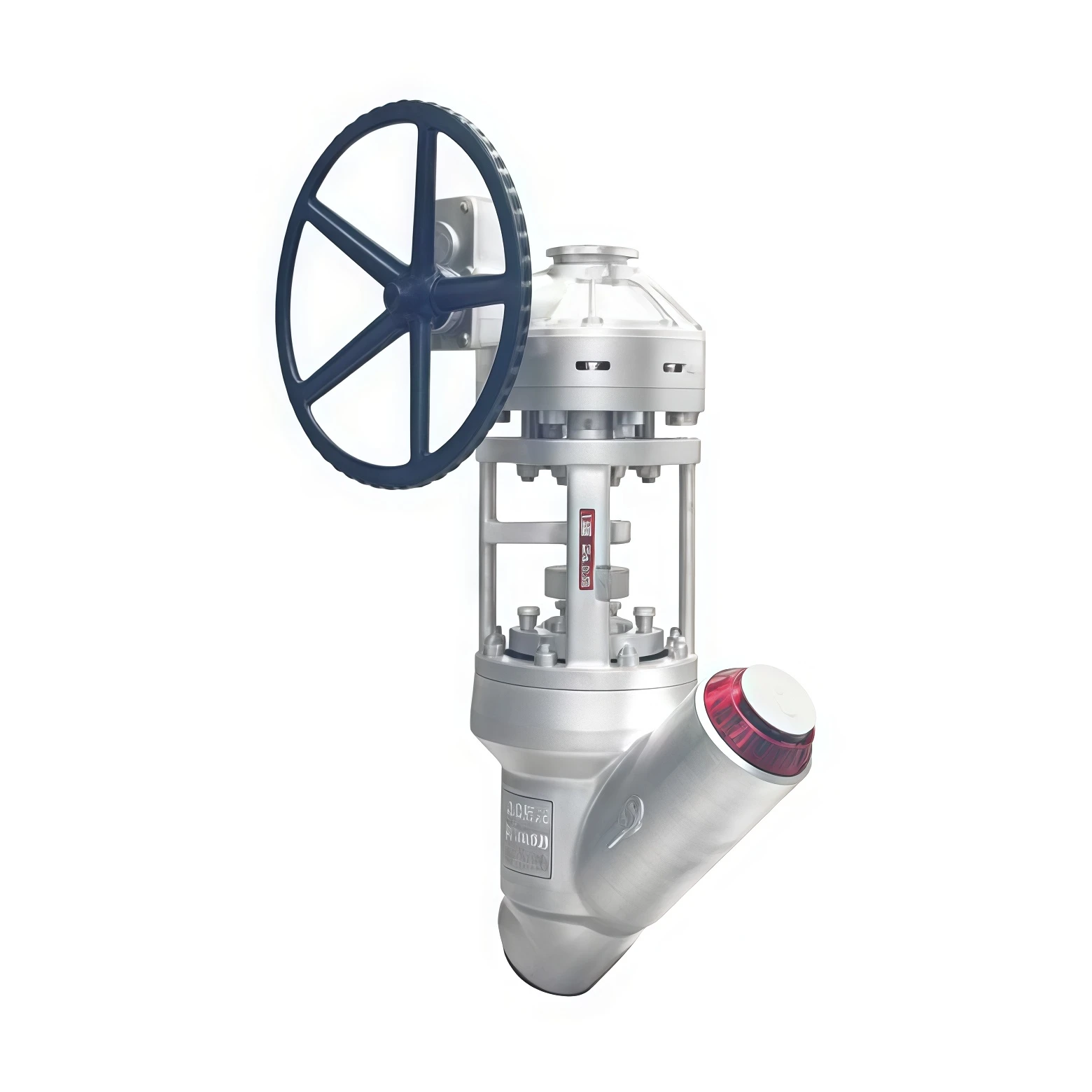

American Standard Y-type globe valve
The Y-type Globe Valve features a streamlined Y-shaped design that minimizes flow resistance and reduces turbulence. It provides precise throttling and tight shut-off in liquid, gas, and steam pipelines. Manufactured to American standards, it ensures durability, high-pressure tolerance, and corrosion resistance, suitable for demanding industrial process control applications.
American Standard Y-type globe valve
The American Standard Y-type Globe Valve is engineered for optimized flow efficiency and reliable shut-off in pipelines carrying liquids, gases, and steam. Its Y-shaped body reduces pressure drop, mitigates erosion, and allows smoother flow compared to conventional globe valves. Constructed from carbon steel, stainless steel, or alloy steel, it offers excellent corrosion and temperature resistance.
The valve can be manually or electrically actuated and supports OEM customization for sizes, materials, connection types, seat designs, and actuator configurations. This design enhances long-term performance, reduces maintenance needs, and supports integration into automated process control systems.
American Standard Y-type Globe Valves are manufactured and tested according to international standards:
American Standard Y-type globe valve
| Parameter | Specification |
|---|---|
| Product Name | American Standard Y-type Globe Valve |
| Nominal Size | DN15 – DN600 (½" – 24") |
| Pressure Rating | PN16 – PN420 |
| ANSI Class | Class 150 – Class 1500 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Stainless Steel |
| Trim Material | Stainless Steel, Alloy Steel, Stellite Overlay |
| Seat Material | Metal Seat / Soft Seat (PTFE, RPTFE, NBR) |
| Connection Type | Flanged, Threaded, Butt Weld |
| Operation | Manual, Electric, Pneumatic |
| Temperature Range | -29°C to +550°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | ANSI / ASME B16.34, API 602 / 623 |
| Applicable Media | Water, Steam, Oil, Gas, Industrial Fluids |
American Standard Y-type globe valve
Steam distribution, condensate control, and feedwater pipelines.
Process fluid throttling, gas, and liquid control in refinery systems.
Flow regulation, shut-off, and automated pipeline systems.
Industrial water supply, distribution, and treatment process control.
Process automation, cooling systems, and fluid distribution networks.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
