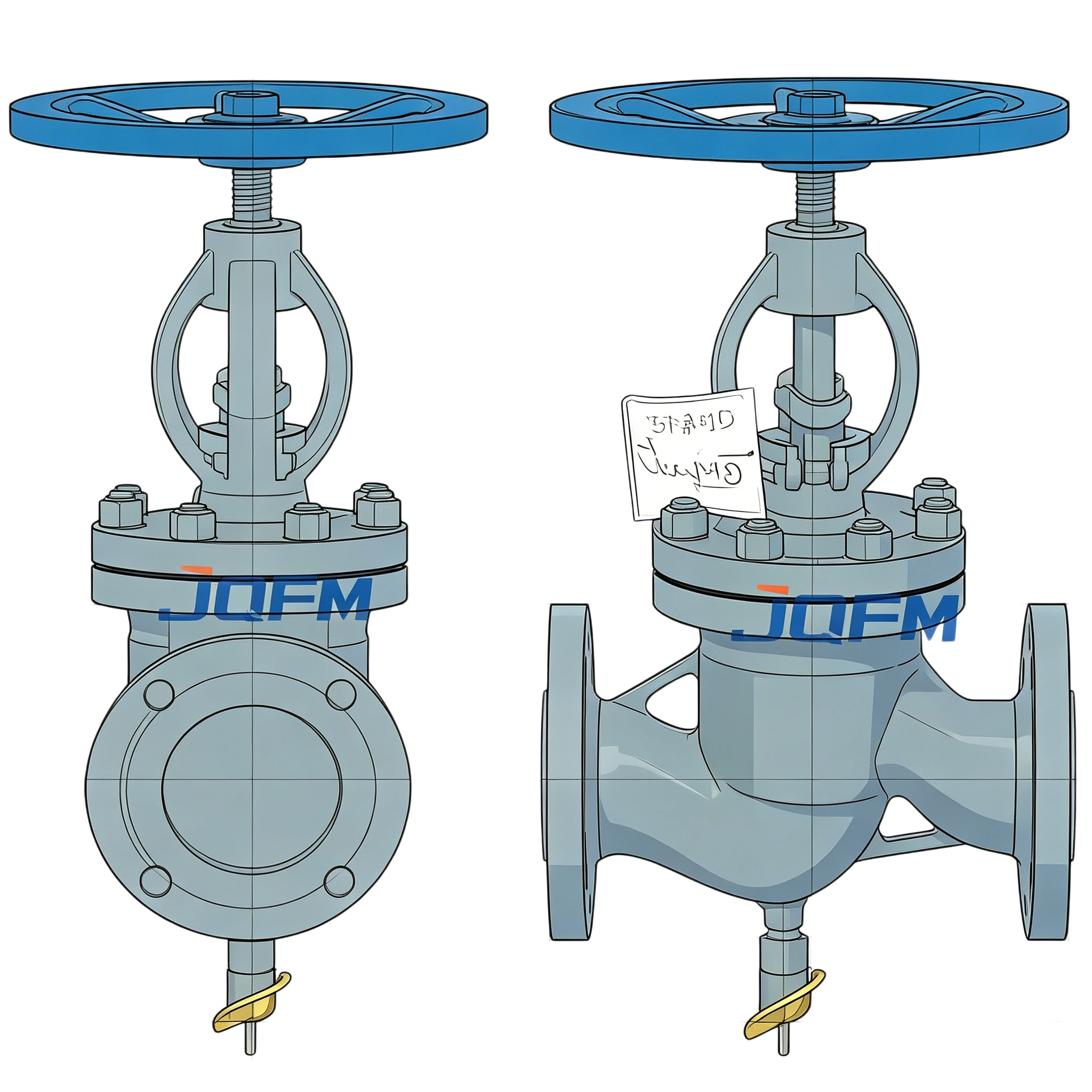

Antibiotic globe valve
The Antibiotic Globe Valve is specially engineered for pharmaceutical, biotechnology, and fermentation systems requiring aseptic operation. Featuring a sanitary design, polished internal surfaces, and dead-space-free construction, it ensures product purity, prevents bacterial growth, and delivers dependable shut-off and flow regulation in sterile processing environments.
Antibiotic globe valve
The Antibiotic Globe Valve is a hygienic control and isolation valve developed for sterile production systems in pharmaceutical, biotechnology, food-grade fermentation, and healthcare industries. Its smooth internal surface finish and crevice-free structure minimize contamination risks and facilitate CIP (Clean-in-Place) and SIP (Sterilization-in-Place) procedures.
Manufactured from high-grade stainless steel materials, the valve offers excellent corrosion resistance, reliable sealing performance, and compliance with strict sanitary standards. It is available in manual, pneumatic, and electric configurations to meet various process automation requirements.
Our Antibiotic Globe Valves are manufactured and tested according to international pharmaceutical and sanitary standards:
Antibiotic globe valve
| Parameter | Specification |
|---|---|
| Product Name | Antibiotic Globe Valve |
| Valve Type | Hygienic Globe Valve |
| Nominal Size | DN15 – DN200 |
| Pressure Rating | PN10 – PN40 |
| Body Material | SS304, SS316L, Duplex Stainless Steel |
| Surface Finish | Ra ≤ 0.8 μm / Ra ≤ 0.4 μm Electropolished |
| Seal Material | PTFE, EPDM, FKM, Silicone |
| Connection Type | Tri-Clamp, Weld End, Threaded, Flanged |
| Operation | Manual, Pneumatic, Electric |
| Temperature Range | -20°C to +180°C |
| Design Standard | ASME BPE, DIN, ISO, 3A |
| Sterilization | CIP / SIP Compatible |
| Applicable Media | Antibiotics, Pharmaceutical Fluids, Fermentation Media, Purified Water |
Antibiotic globe valve
Antibiotic production lines, sterile drug manufacturing systems, and active pharmaceutical ingredient (API) processing.
Bioreactors, fermentation systems, and cell culture production facilities.
Microbial fermentation, enzyme production, and nutrient media processing.
WFI (Water for Injection), purified water distribution, and sterile utility systems.
High-hygiene processing environments requiring sanitary flow control.
Sterile fluid handling, cleanroom systems, and research applications.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
