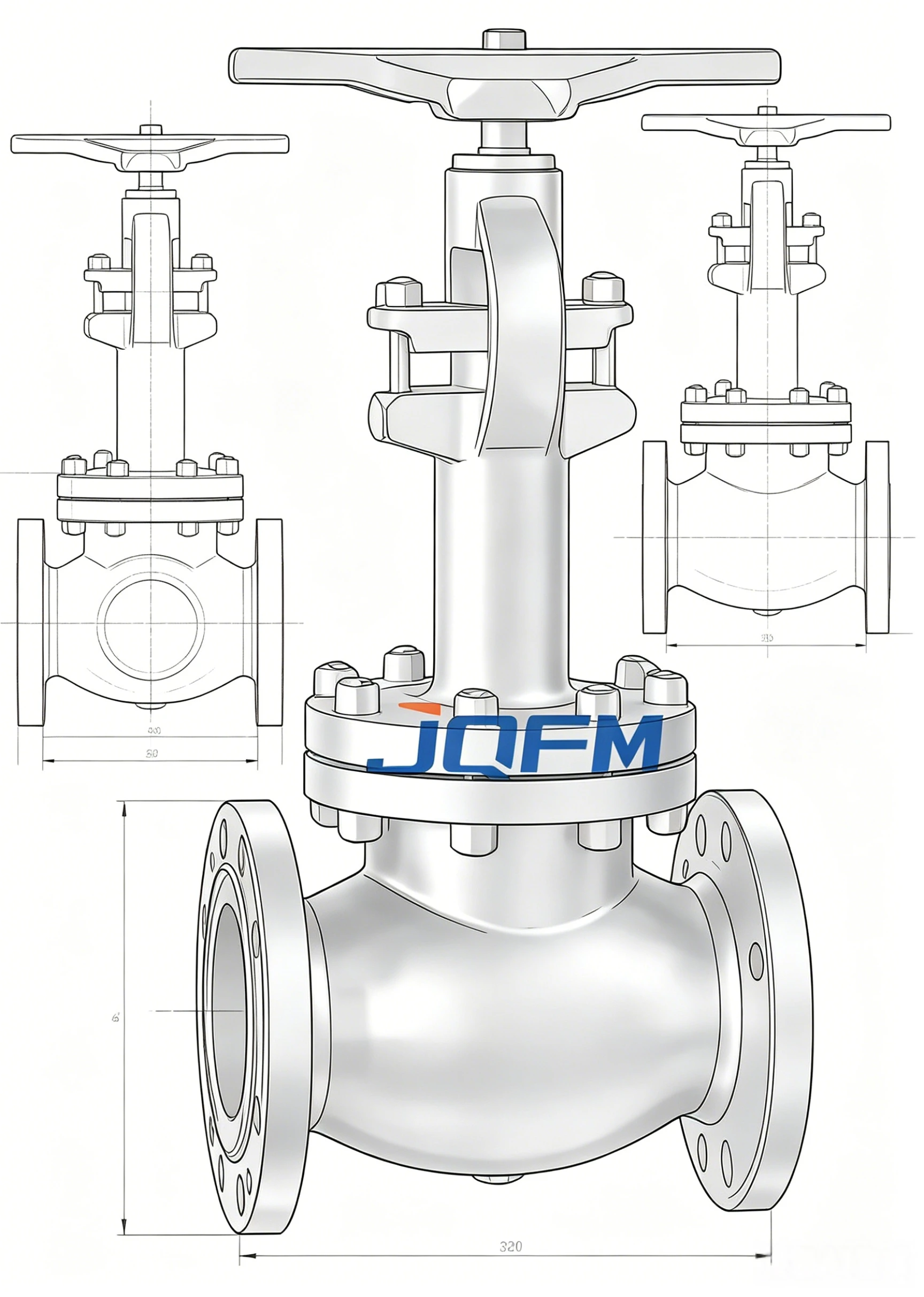

API low temperature globe valve
The API Low Temperature Globe Valve is engineered for handling liquefied gases, cryogenic fluids, and low-temperature liquids. Its specially selected low-temperature alloy body and trim provide excellent toughness and corrosion resistance. The globe valve’s design ensures tight sealing, smooth throttling, minimal leakage, and safe operation under extreme low-temperature conditions.
API low temperature globe valve
The API Low Temperature Globe Valve is designed for industrial applications requiring safe and precise control of cryogenic liquids such as LNG, liquid nitrogen, liquid oxygen, and other low-temperature fluids. Engineered in compliance with API 623 and API 602 standards, the valve features a robust body, high-integrity sealing, and precise disc movement for smooth throttling.
The valve can be manually or electrically actuated and supports OEM customization for body materials, seat types, connection styles, and actuator options to meet cryogenic process requirements. Its construction ensures minimal thermal contraction, stable operation, and long service life under sub-zero conditions.
API Low Temperature Globe Valves are manufactured and tested in accordance with international standards:
API low temperature globe valve
| Parameter | Specification |
|---|---|
| Product Name | API Low Temperature Globe Valve |
| Nominal Size | DN15 – DN600 (½" – 24") |
| Pressure Rating | PN16 – PN420 |
| ANSI Class | Class 150 – Class 1500 |
| Body Material | LF2, LCB, Stainless Steel 304/316, Alloy Steel, Duplex Stainless Steel |
| Trim Material | Stainless Steel, Low-Temperature Alloy, Stellite Overlay |
| Seat Material | Metal Seat / Soft Seat (PTFE, RPTFE) |
| Connection Type | Flanged, Butt Weld, Threaded |
| Operation | Manual, Electric, Pneumatic |
| Temperature Range | -196°C to +150°C |
| Leakage Standard | API 598 / ISO 5208 |
| Design Standard | API 602, API 623, ASME B16.34 |
| Applicable Media | LNG, Liquid Nitrogen, Oxygen, Low-Temperature Liquids |
API low temperature globe valve
Cryogenic liquid pipelines, storage tanks, and transfer systems.
Low-temperature chemical fluid control, liquid nitrogen, and oxygen systems.
Cryogenic cooling, liquefied gas handling, and turbine cooling systems.
Chilled liquid flow control, refrigeration plants, and cryogenic distribution systems.
Precise control of liquid gases and sub-zero temperature media.
Material customization plan
Customized 316L stainless steel valves forGerman chemical enterprises. Resistant tostrong corrosion, suitable for their acidicmedium transportation systems, with aservice life extended to over 8 years.
Structural optimization design
For the Saudi desert project, the valve stemsealing structure was changed to a doublebellows design to address the leakage issuein the high-temperature and dustyenvironment, and it was highly recognizedby the customers.
Interface standard adaptation
Customized API 600 standard valves for acertain company in the United States. Theflange size is fully compatible with ANSIB16.5, ensuring zero error during on-siteinstallation and reducing the constructionperiod by 30%.
